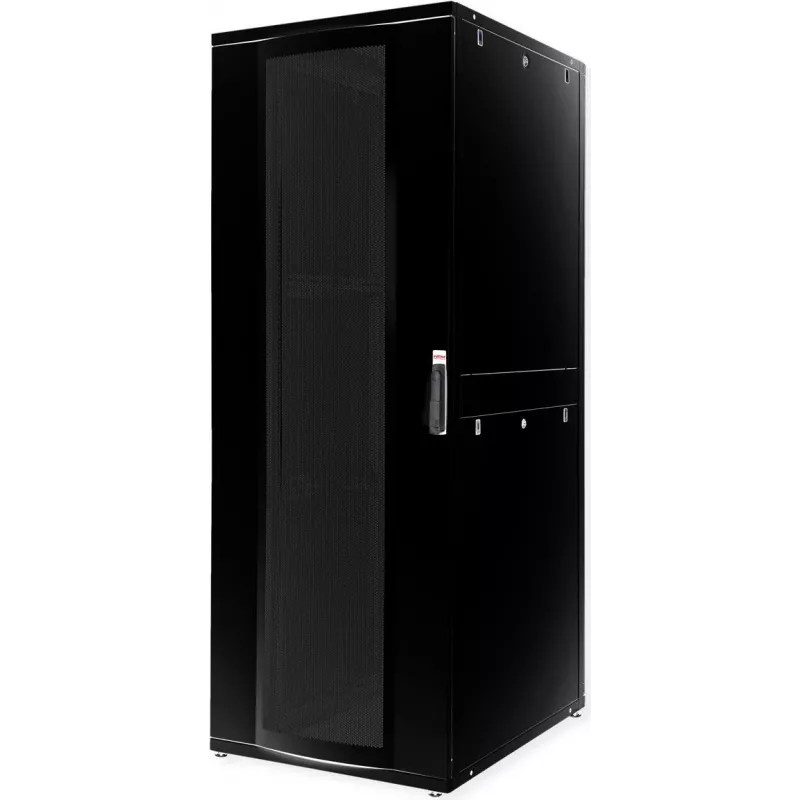

ROLINE 19-inch Server Cabinet Pro 47 HE 800x1000 mm Black

The ROLINE 26.21.0164 is a professional 19-inch server cabinet designed for high-density data center environments. With 47 rack units (47U) and dimensions of 800 x 2194 x 1000 mm (W x H x D), this cabinet offers ample space for servers, network equipment, and other 19-inch rack-mountable devices. Constructed from SPCC cold rolled steel with a black RAL 9005 finish, it provides robust support with a static load capacity of 800 kg. The cabinet features perforated steel doors (single front, double rear) for optimal airflow, removable and lockable side panels, and adjustable depth mounting rails. It includes leveling feet, heavy-duty casters, keys, and cage nuts for easy installation. Ideal for IT professionals seeking a reliable and scalable rack solution.

Advantages

High load capacity of 800 kg ensures safe support for heavy equipment. Perforated doors and passive ventilation promote efficient cooling. Fully assembled design saves installation time. Lockable doors and side panels enhance security. Adjustable mounting rails accommodate various equipment depths.

Suitable for

• Data centers and server rooms
• Network and telecommunications infrastructure
• Enterprise IT equipment housing
• Audio/visual and broadcast systems

Key specifications

• Rack Standard: 19-inch
• Rack Units: 47U
• External Dimensions (W x H x D): 800 x 2194 x 1000 mm
• Usable Internal Depth: 880 mm
• Color: Black (RAL 9005)
• Material: SPCC Cold Rolled Steel
• Static Load Capacity: 800 kg
• Front Door: Perforated Steel (single section)
• Rear Door: Perforated Steel (double section)
• Side Panels: Removable, Lockable
• Cable Entry: Top and Bottom with brush strips
• Cooling: Passive ventilation, fan unit ready
• Included Accessories: 4x Leveling Feet, 4x Heavy-Duty Casters, 2x Keys for doors, 2x Keys for side panels, 20x Cage Nuts with screws
• Mounting Rails: Adjustable depth 19-inch
• IP Protection Rating: IP20
• Construction: Fully Assembled
• Compliance: RoHS, CE

Recommendations

For optimal cooling, consider adding optional fan units (sold separately). Ensure the floor can support the combined weight of the cabinet and installed equipment. Use cable management accessories to maintain organization.
