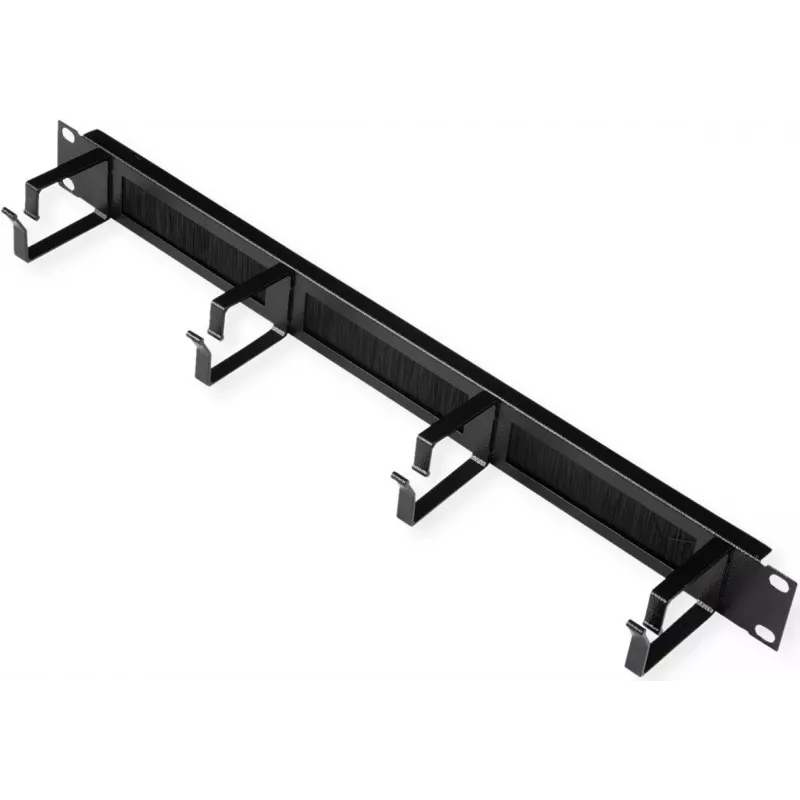

ROLINE 19-inch patch panel 1U with brush strip 44x60mm black

The ROLINE 19-inch patch panel 1U with brush strip provides organized horizontal cable routing for 19" network and server racks. Constructed from durable steel, the panel measures 485 mm wide, 80 mm deep and 44 mm high and is designed to mount on standard 19" profile rails. Integrated brush apertures reduce dust ingress while cable routing brackets guide patch cables for a neat installation.

Advantages

The panel combines a sturdy steel construction with a built-in brush strip and multiple routing brackets to simplify cable management in 1U rack space. Its three brush apertures and four cable routing brackets enable tidy horizontal routing of patch cords, improving airflow and accessibility. The 485 mm width conforms to standard 19" mounting requirements.

Suitable for

• Organisation of patch cables in 19" network racks
• Cable management in server cabinets and small data closets
• Horizontal routing of Ethernet, patch and patchcord cables

Key specifications

• Brand: ROLINE
• Model / MPN: 26.21.0097
• EAN: 7630049600980
• Mounting: 19" profile rails
• Height: 44 mm (1U)
• Width: 485 mm
• Depth: 80 mm
• Material: Steel
• Features: Brush strip (three apertures), four cable routing brackets
• Colour: Black

How to use

Mount the panel on the 19" profile rails in the desired rack position using appropriate rack screws. Route patch cords horizontally through the brush apertures and secure them along the panel using the integrated cable routing brackets to maintain an organised layout. Verify that cables are not pinched and that the brush strip seals around the cables to limit dust entry.

Recommendations

Install in a standard 19" rack or cabinet and combine with vertical cable managers for optimal cable paths. Use suitable rack hardware and maintain clearances for ventilation; replace or clean brush strips if heavily soiled to preserve dust protection.
