ROGER PRT12LT-G Proximity Reader, 125 kHz, RS485, IP67, Grey

The ROGER PRT12LT-G is a robust proximity reader designed for the RACS 5 access control system. It operates at 125 kHz and supports EM Unique, ROPAM, and SATEL transponders, offering a reading range of up to 12 cm. With an IP67 rating, it is suitable for both indoor and outdoor use, ensuring reliable performance in harsh environments.

Advantages

This reader features a durable polycarbonate housing, a two-color LED indicator, and a built-in buzzer for clear visual and audio feedback. The integrated tamper switch enhances security by detecting unauthorized removal. Its surface-mount design simplifies installation, and the RS485 communication interface ensures seamless integration with ROGER systems.

Suitable for

• Access control in commercial buildings
• Secure entry points in industrial facilities
• Outdoor gates and doors requiring weatherproof readers

Key specifications

• Reading Technology: EM 125 kHz
• Supported Transponders: EM Unique, ROPAM, SATEL
• Communication Interface: RS485
• Reading Range: Up to 12 cm
• Power Supply: 10-15V DC
• Current Consumption: Max. 50 mA
• Ingress Protection: IP67
• Operating Temperature: -25°C to +60°C
• Housing Material: Polycarbonate

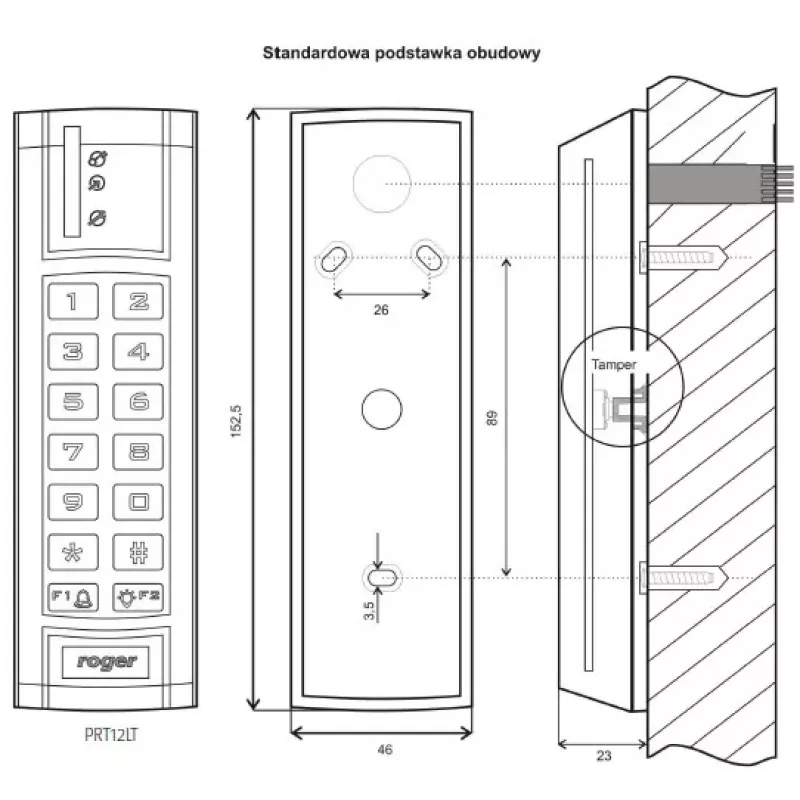

• Mounting Type: Surface Mount
• Visual Indicator: Two-color LED (Red/Green)
• Audio Indicator: Built-in Buzzer
• Tamper Protection: Yes
• Color: Grey

Recommendations

For optimal performance, use with ROGER RACS 5 controllers and ensure proper power supply within the specified voltage range. The reader is designed for surface mounting; avoid direct exposure to corrosive substances.
