Rockstable 22 U 19 inch Server Cabinet with Tempered Glass RS19-6622

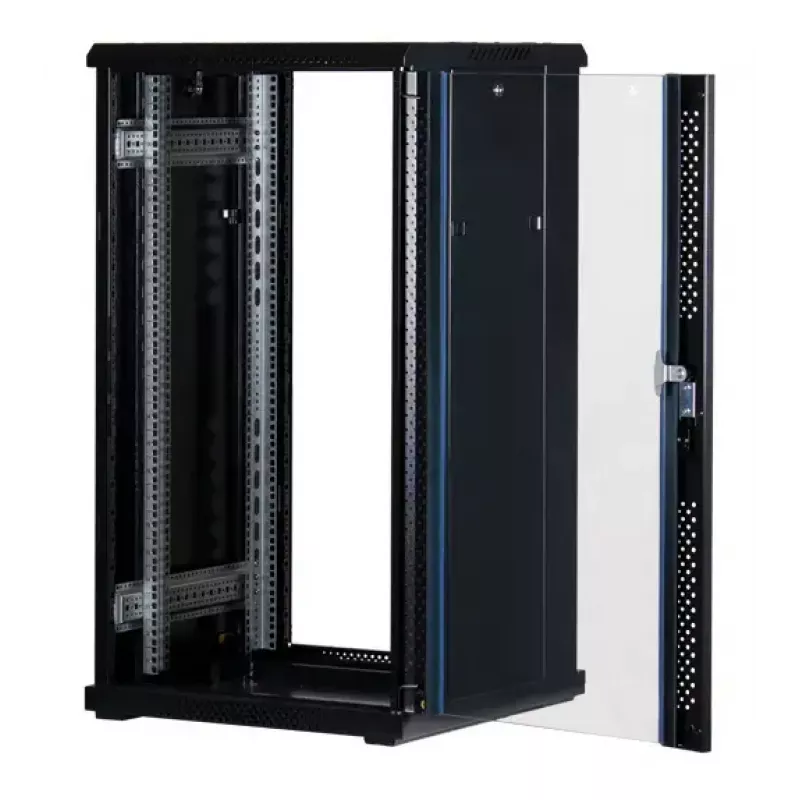

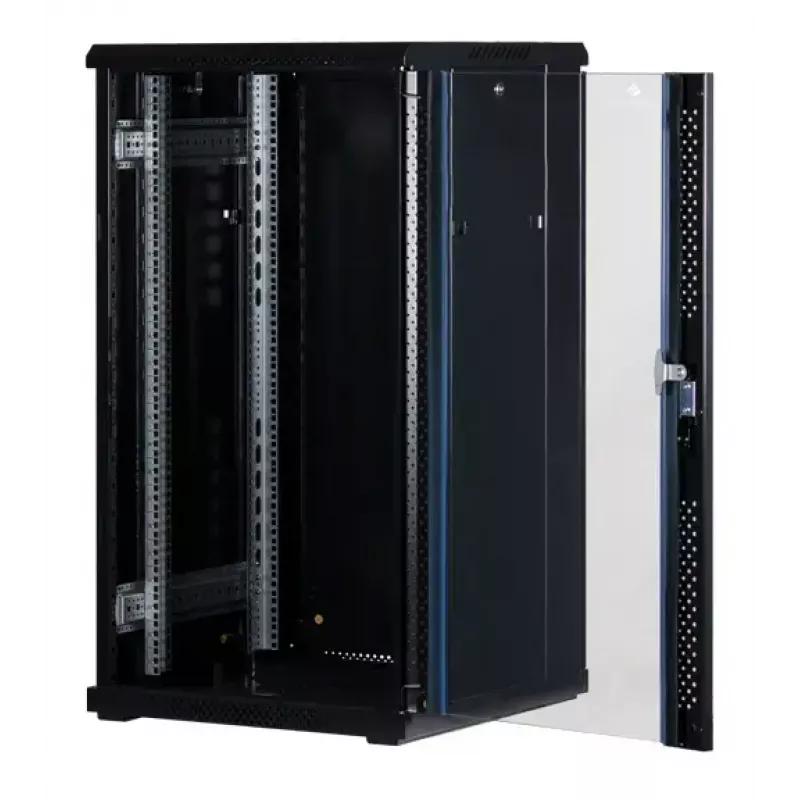

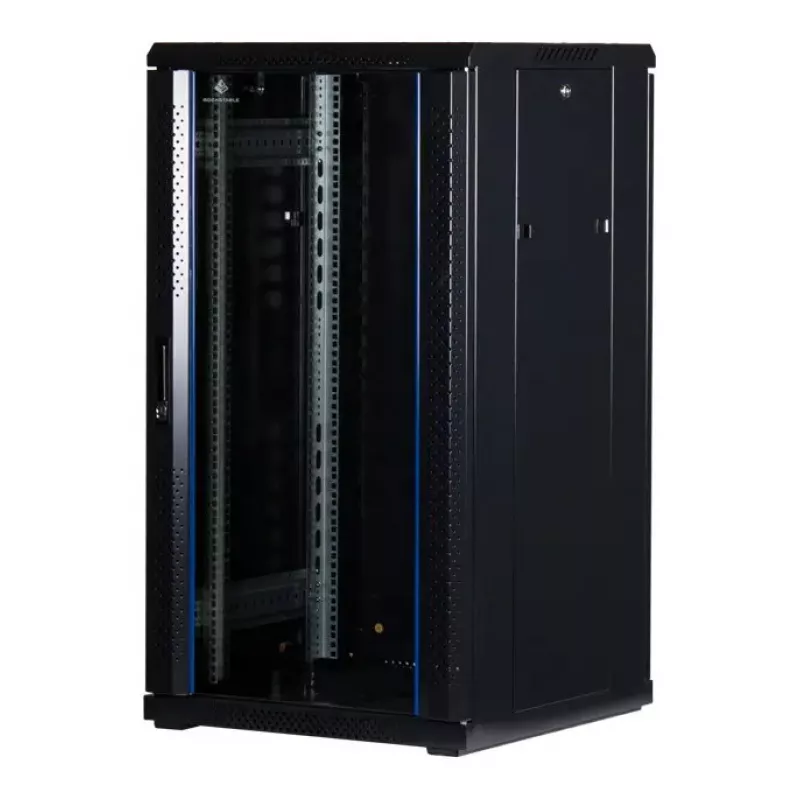

The Rockstable 22 U 19" Server Cabinet with Tempered Glass RS19-6622 is a 22U freestanding server cabinet designed for secure and organised equipment housing. It has a stable steel construction, a tempered safety glass front door and a removable lockable rear steel door. The cabinet is delivered fully pre-assembled and includes galvanized mounting profiles with U-division markings and anti-static (ESD) protection for safe rack installation.

Advantages

This server cabinet provides high stability and security with a robust frame and lockable doors. Removable side panels and changeable door hinges allow flexible installation and maintenance. Adjustable airflow is supported by multiple cut-outs in the front frame and manually operable air shafts at top and bottom, while integrated cable duct options keep cabling organised. The wide opening angle of at least 120° and an available range of accessories simplify access and customisation.

Suitable for

• Small and medium data rooms
• IT closets and network rooms
• Server and network equipment storage
• Environments requiring ESD-protected mounting profiles

Key specifications

• Rack units: 22U
• Form factor: 19" server cabinet, freestanding
• Material: Steel frame with tempered safety glass front door
• Colour: Black
• Mounting profiles: Galvanized with U-division markings and ESD protection

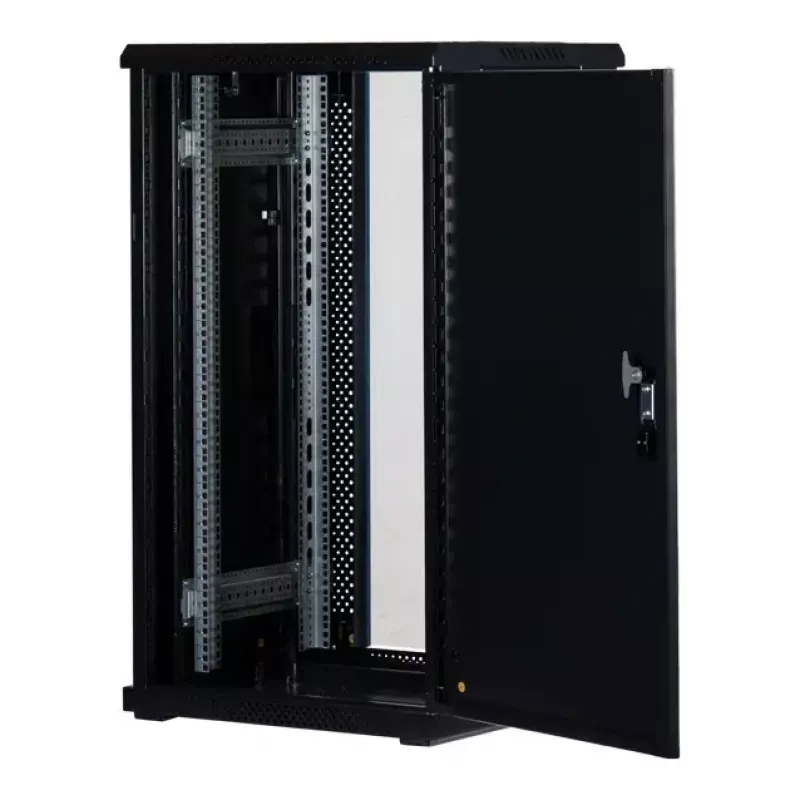

• Doors: Removable front and rear doors; rear door lockable
• Side panels: Detachable / removable

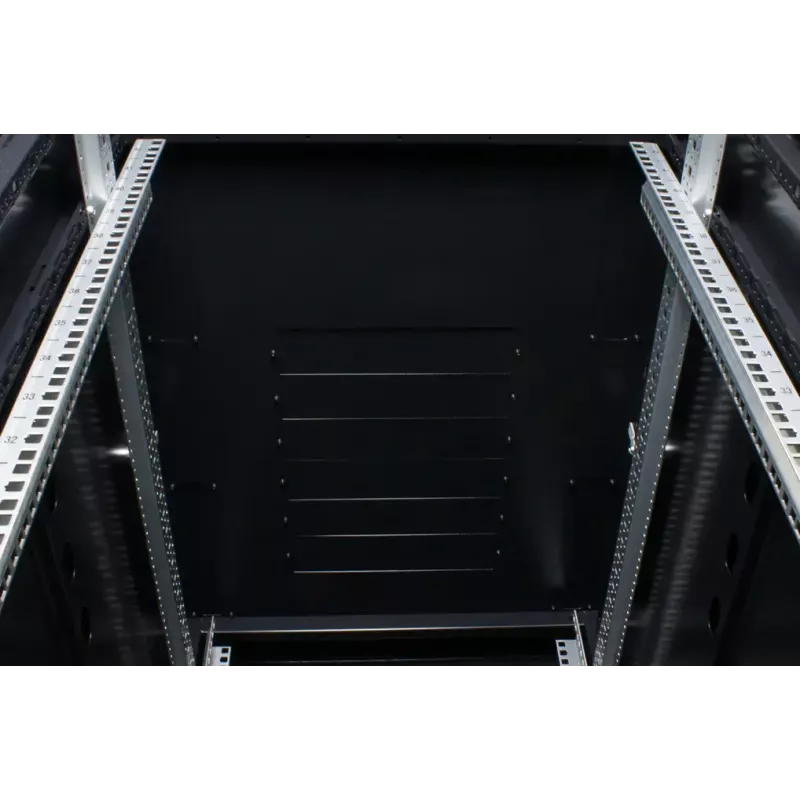

• Airflow: Cut-outs in front frame, adjustable air shafts top/bottom, wide opening angle ≥120°
• Delivery: Fully pre-assembled
• Manufacturer model: RS19-6622
• EAN: 4260714310413

How to use

Place the freestanding cabinet on a level surface and secure it if required. Remove the detachable side panels and the rear door to install servers and networking equipment on the galvanized mounting profiles, using the U-division markings to align rack units. Route cables through the integrated top or bottom cable duct or through the air shafts; close or open the air shafts to adjust airflow. Refit side panels and doors and lock them as needed for security.

Recommendations

For optimal cooling and cable management, plan rack layout before installation, use compatible accessories from Rockstable, and keep air shafts adjusted according to equipment heat load. Ensure ESD precautions when mounting sensitive components.
