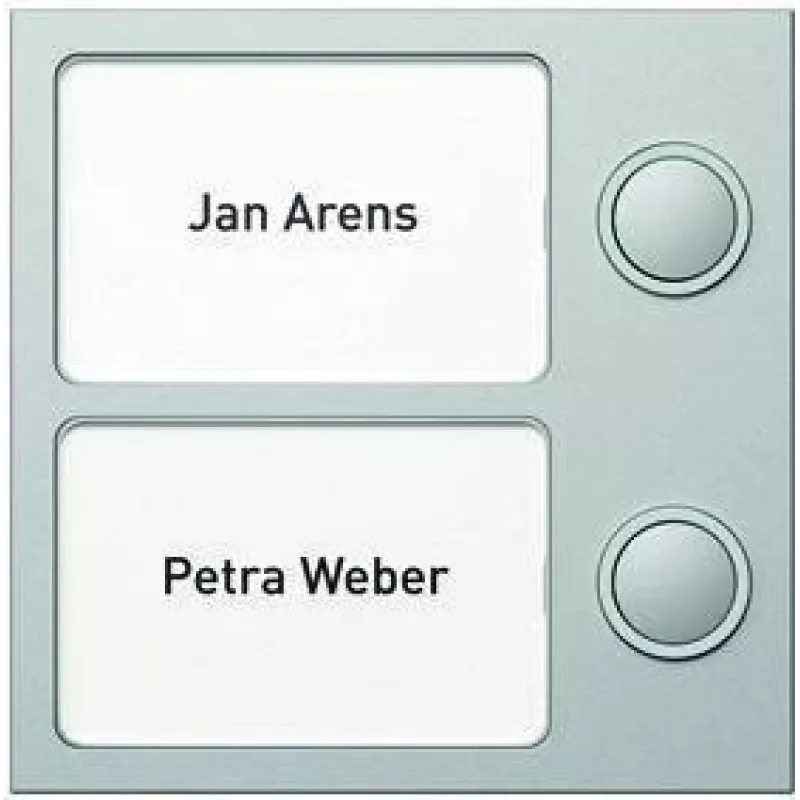

Doorbell Button Module Schneider Electric 2 Buttons 95×95×33 mm

Wired doorbell button module by Schneider Electric with two tactile buttons in a compact 95×95×33 mm housing. The module is intended for residential and light commercial door-entry and intercom systems where two separate call or function inputs are required. Its standardized dimensions and mounting pattern make it suitable for new installations and retrofits; the unit is designed for straightforward wiring and integration with compatible doorbell and entry control equipment.

Advantages

The module offers two distinct, mechanically robust push-buttons in a single plate, enabling separate signaling or dual-function operation. The compact rectangular form factor and standardized mounting size simplify installation in common switch boxes or panels. The tactile buttons provide clear feedback for the user, while the wired design ensures a reliable electrical connection without batteries or wireless pairing. Materials and finish are selected to withstand normal outdoor exposure when installed under suitable protection.

Suitable for

Key specifications

How to use

Mount the module into a compatible flush or surface switch box using the standardized mounting holes, ensuring correct orientation of the button plate. Connect the wired terminals to the doorbell or intercom system according to the system wiring diagram and local electrical regulations; typically each button requires a separate call input and return conductor. After wiring, secure the module and test each push-button to verify proper signaling and mechanical operation. For outdoor installations, provide appropriate weather protection such as a covered recess or canopy.

Recommendations

Install and wire the module following local electrical codes and the instructions of the door-entry system manufacturer. Avoid exposing the module directly to heavy rain or high-pressure water jets; use protected mounting locations or additional sealing if installed outdoors. Periodically check button operation and terminal connections for corrosion in harsh environments.
