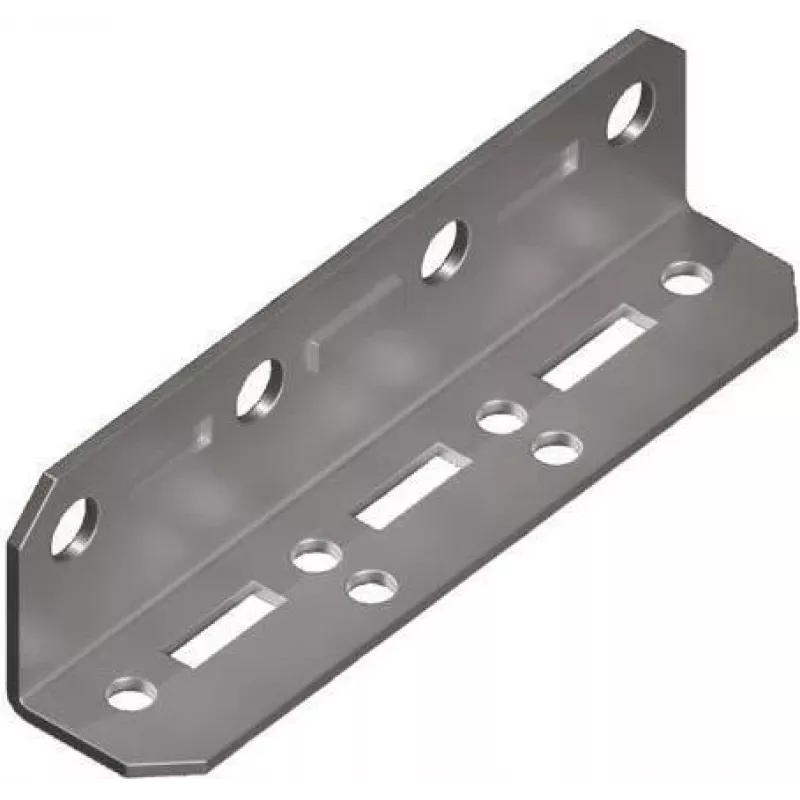

Rittal VX Plinth Extension Bracket for 100 mm High, 200 mm Deep Plinth Panels, Zinc-Plated Steel 8660400

Plinth extension bracket engineered to stabilize and connect plinth panels within the Rittal VX enclosure system. This L-shaped steel component creates a rigid plinth frame, ensuring secure alignment for 100 mm high and 200 mm deep plinth configurations. The zinc-plated finish provides durable corrosion resistance for indoor industrial environments.

Advantages

The bracket's screw-fastened design allows quick, tool-based installation without welding or complex adjustments. Its precise dimensions guarantee a flush fit with VX plinth panels, reducing assembly time and eliminating gaps that could compromise structural integrity. The zinc plating offers long-term protection against oxidation, maintaining appearance and function even in demanding settings.

Suitable for

• Rittal VX enclosures requiring plinth stabilization
• Plinth systems with 100 mm height and 200 mm depth
• Indoor industrial applications such as control cabinets, automation panels, and IT infrastructure
• Installations where a modular, screw-fastened plinth frame is preferred

Key specifications

• Product type: Plinth extension bracket
• Compatible series: Rittal VX
• Plinth height: 100 mm
• Plinth depth: 200 mm
• Material: Sheet steel
• Surface finish: Zinc-plated
• Mounting type: Screw-fastened
• Design: L-shaped
• Package quantity: 1 piece

Recommendations

For optimal performance, pair this bracket with Rittal VX plinth panels of matching height and depth. Ensure all fasteners are tightened to the manufacturer's recommended torque to maintain frame rigidity. Suitable for use in indoor environments only; avoid exposure to harsh chemicals or outdoor weather to preserve the zinc coating.
