Rittal SZ 4315.820 Door position switch accessory, black, for 4140.810/820/830/840, depth 1000 mm

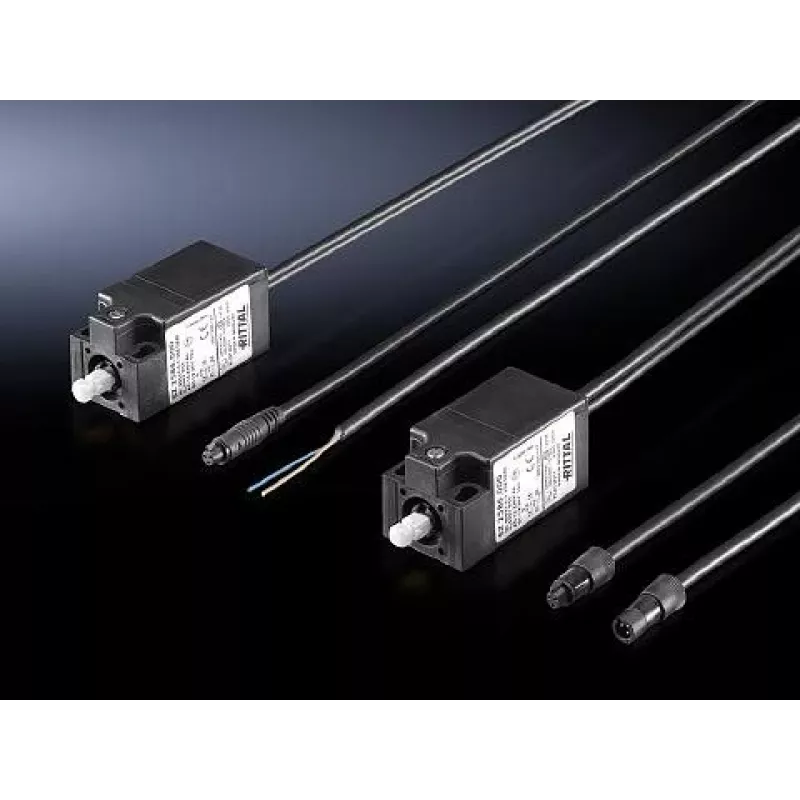

The Rittal SZ 4315.820 is a black accessory designed as a door position switch connection cable for compatible Rittal enclosures. It is supplied as a single cable weighing approximately 140 g and is intended to connect door position switches to the enclosure’s internal wiring. The cable matches specific Rittal enclosure models listed by the manufacturer and is made to fit standard mounting depths up to 1000 mm.

Advantages

This connection cable provides a factory-matched solution for connecting door position switches in Rittal enclosures. It offers a compact, ready-to-install option in black finish, simplifying wiring during assembly or maintenance. The single-piece supply reduces the need for custom cabling and helps ensure consistent connection quality.

Suitable for

When it may not be suitable

This cable is intended specifically for the listed compatible enclosure models and may not fit or function correctly with other makes or Rittal models that have different connector types or mounting arrangements. It is not a universal cable and should not be used where a different length, connector type, or environmental rating is required.

Key specifications

How to use

Install the cable by connecting it to the door position switch and routing it to the enclosure’s internal terminal or control module according to the enclosure wiring diagram. Ensure connectors are fully seated and secure the cable to prevent strain on the connections. Follow standard electrical safety procedures and de-energise circuits before making or changing connections.

What to consider before purchase

Recommendations

Use this Rittal connection cable for straightforward replacement or initial installation in compatible enclosures; if in doubt about fit or electrical requirements, consult Rittal documentation or a qualified technician before purchase and installation.
