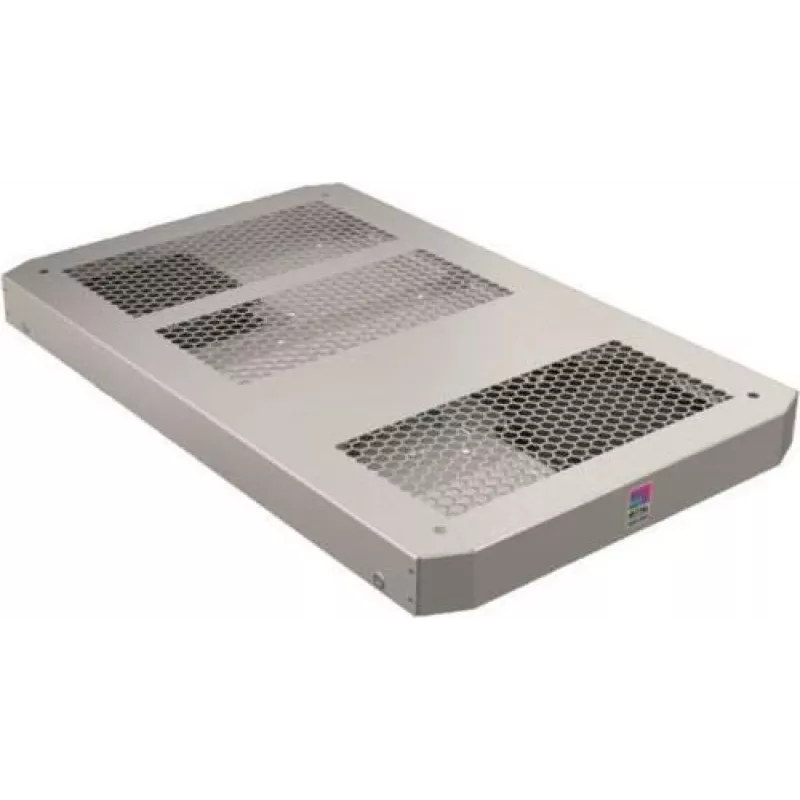

Rittal IT-Bundle SK 1182203 Ventilation Kit 800 mm, 4 Axial Fans, 1760 m³/h, Light Grey

Ventilation kit engineered to maintain optimal thermal conditions within Rittal IT-Bundle SK enclosures of 800 mm width. This roof-mounted unit delivers an air throughput of 1760 m³/h at 50 Hz, ensuring reliable heat dissipation for sensitive IT equipment. Four axial fans operate on 230 V single-phase power, drawing just 0.9 A and producing a noise level of 62 dB(A)—a balance of performance and acoustic comfort.

Advantages

Precise airflow management prevents hot spots and extends component lifespan. The sheet steel construction with RAL 7035 light grey finish blends seamlessly with standard enclosure aesthetics. Tool-free terminal strip connection simplifies installation, while IP20 protection suits indoor data centre environments. UL/cUL and EAC approvals confirm compliance with international safety standards.

Suitable for

• Rittal IT-Bundle SK enclosures, 800 mm width
• Server and network racks requiring active roof ventilation
• Data centres, IT rooms, and industrial control cabinets
• Applications demanding reliable cooling within +5 °C to +55 °C ambient range

Key specifications

• Product type: Ventilation kit
• Mounting: Roof
• Number of fans: 4 axial fans
• Air throughput: 1760 m³/h (50 Hz), 2000 m³/h (60 Hz)
• Rated voltage: 230 V, 1~, 50/60 Hz
• Power consumption: 200 W
• Current consumption: 0.9 A
• Noise level: 62 dB(A) at 50 Hz, 65 dB(A) at 60 Hz
• Material: Sheet steel
• Colour: RAL 7035 light grey
• Protection category: IP20
• Connection: Terminal strip
• Operating temperature: +5 °C to +55 °C
• Approvals: UL/cUL, EAC

Recommendations

Pair this ventilation kit with a thermostat or climate control module for automated fan operation. Ensure adequate clearance above the enclosure for unobstructed airflow. For environments with high dust levels, consider adding a filter mat to protect internal components.
