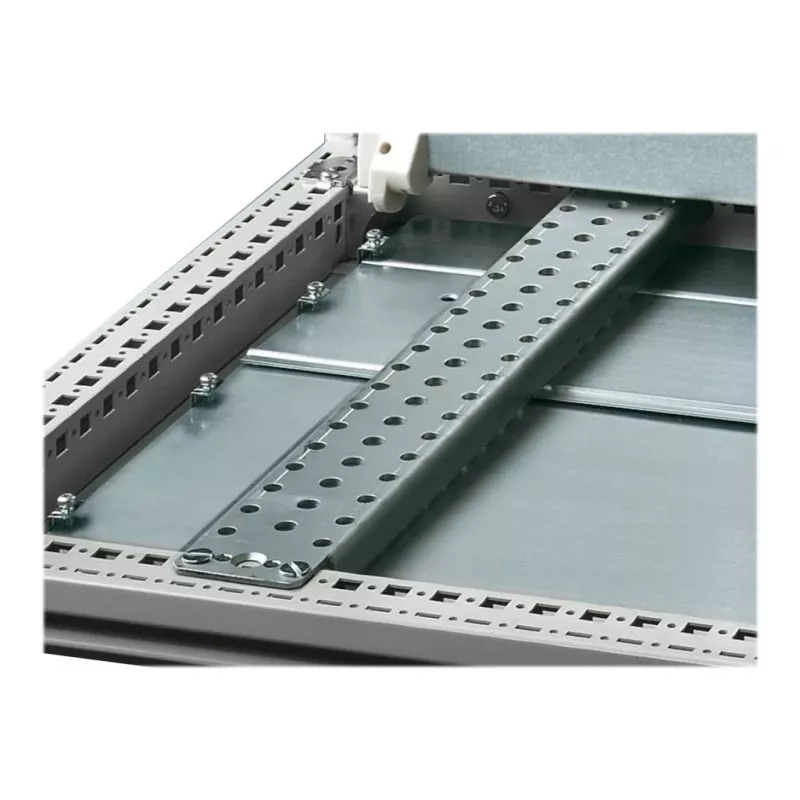

Rittal 4396.000 System Chassis TS 8/SE 8/CM, Zinc-Plated Steel, Silver

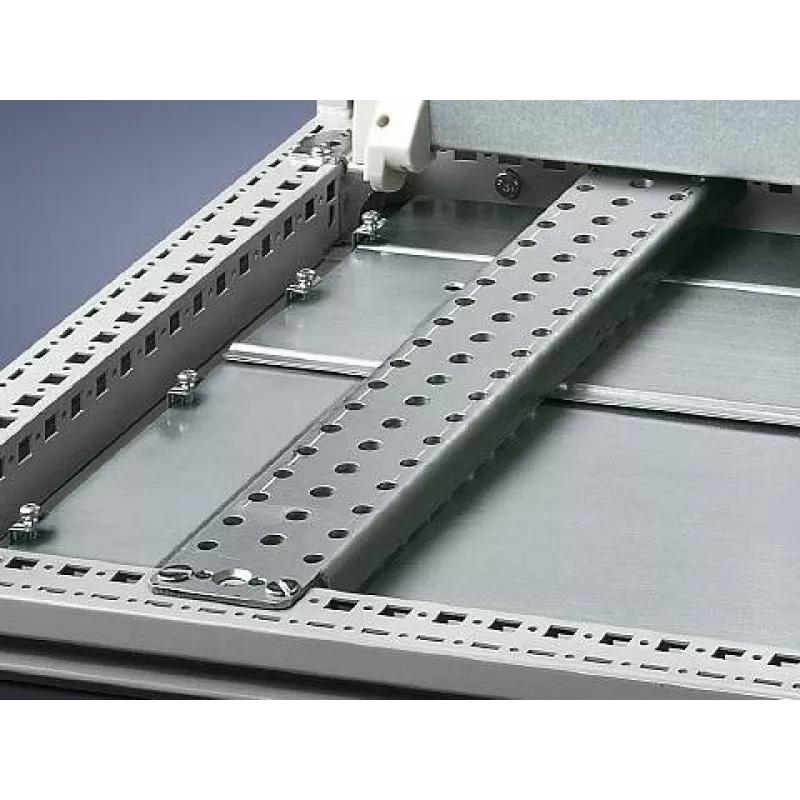

In a busy control panel workshop, a technician needs to add extra mounting space for terminal blocks and small components inside an existing Rittal TS 8 enclosure. The Rittal 4396.000 System Chassis provides a sturdy, zinc-plated steel rail that screws directly onto the horizontal enclosure sections or mounting plate, creating a reliable foundation for DIN rail components and wiring. Its perforated profile allows flexible positioning and secure fastening, making it a practical upgrade for any industrial cabinet.

Key specifications

• Material: Sheet steel, zinc-plated for corrosion resistance
• Colour: Silver
• Profile dimensions (H x D): 39 mm x 23 mm
• Compatible enclosure series: Rittal TS 8, SE 8, CM, PC, IW
• Suitable enclosure width: 1000 mm
• Installation position: Horizontal
• Mounting type: Screw-fastened
• Design: Perforated profile
• Scope of delivery: 1 system chassis

Why choose it

This system chassis is engineered for seamless integration with Rittal's modular enclosure systems. Its zinc-plated finish ensures long-term durability even in demanding industrial environments, while the perforated design offers flexibility for mounting various components. The rail's dimensions are optimised to provide additional mounting space without obstructing existing equipment, making it an efficient solution for expanding enclosure capacity.

Ideal use cases

• Adding extra mounting rails inside TS 8, SE 8, or CM enclosures
• Mounting terminal blocks, relays, and small DIN rail devices
• Creating custom component layouts on mounting plates
• Upgrading existing enclosures for new automation projects

Good to know

Installation is straightforward: the chassis can be attached to horizontal enclosure sections or directly to the mounting plate using standard screws. It is intended for interior installation in industrial enclosures, providing a stable and organised framework for electrical and electronic components. For larger enclosures, multiple chassis can be installed side by side to maximise usable space.
