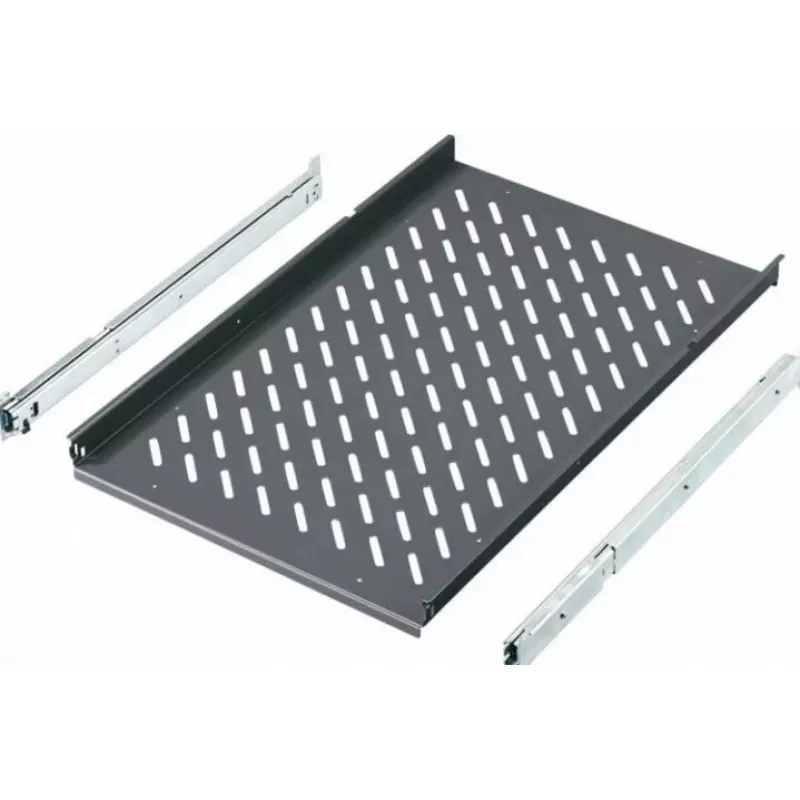

Rittal 19 inch Sliding Shelf for TS, PC-TS, IW Enclosures, 600 mm Depth, 40 kg, Slate Grey RAL 7015 6902.960

Extendable 19-inch rack shelf engineered for direct vertical mounting in Rittal TS, PC-TS, and IW enclosures. Its pull-out design provides convenient access to equipment while supporting up to 40 kg, making it ideal for maintenance-heavy installations.

Advantages

The sliding mechanism allows smooth extension of the shelf, enabling easy installation, servicing, and cable management without removing equipment from the rack. Constructed from robust steel with a slate grey RAL 7015 finish, it blends seamlessly with Rittal cabinet aesthetics and ensures long-term durability. Direct mounting on vertical TS profiles eliminates the need for additional brackets, simplifying assembly and saving space.

Suitable for

• Rittal TS 8, TS IT, and PC-TS network and server enclosures
• Rittal IW wall-mount enclosures with 19-inch vertical profiles
• Installations requiring frequent access to non-rack-mountable devices, tools, or test equipment
• IT, industrial, and telecommunications environments where a stable, pull-out work surface is needed

Key specifications

• Rack standard: 19 inch
• Shelf type: Sliding / pull-out
• Nominal depth: 600 mm
• Maximum load capacity: 40 kg
• Colour: Slate grey (RAL 7015)
• Compatibility: Rittal TS, PC-TS, IW enclosures
• Mounting: Direct on vertical TS cabinet profile

Recommendations

For optimal stability, ensure the enclosure's vertical profiles are properly aligned and the shelf is fully engaged before loading. Distribute weight evenly across the shelf surface and avoid exceeding the 40 kg limit. Pair with Rittal cable management accessories to maintain a tidy installation.
