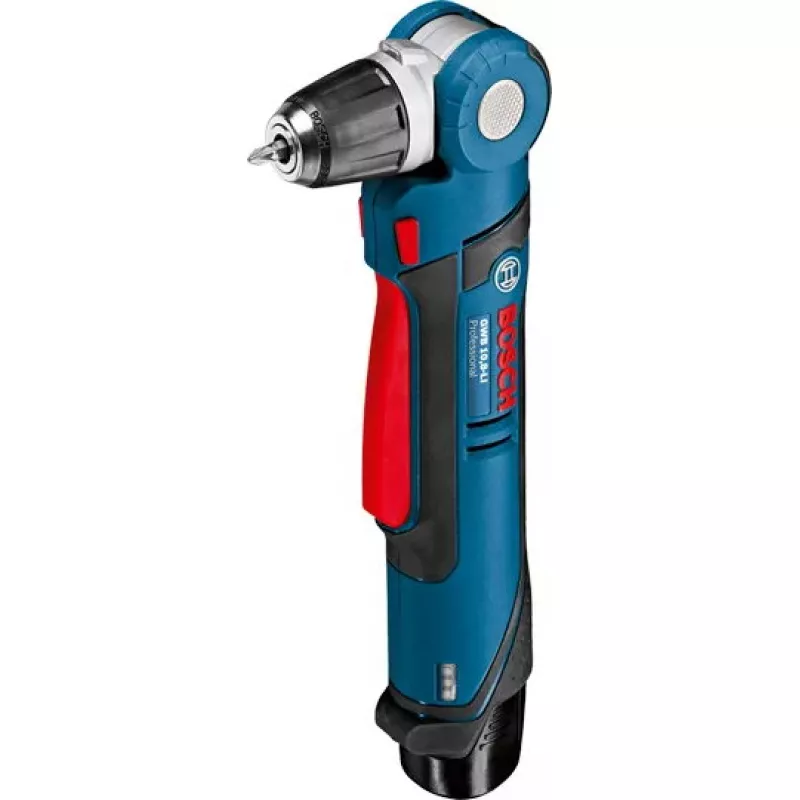

Right-angle drill Bosch 0601390909, Keyless, 12V, 1.2kg

The Bosch 0601390909 right-angle drill is a compact, lightweight 12V cordless tool designed for work in confined spaces. Weighing 1.2 kg and featuring a keyless 10-mm Auto-Lock chuck, it delivers up to 1300 rpm and a maximum drilling diameter in wood of 10 mm. The tool includes a motor brake for precise screw driving and a 3-LED battery charge level indicator. It uses Bosch Premium lithium-ion battery technology with Electronic Cell Protection to prevent overload, overheating and deep discharge, and the battery has no memory effect.

Advantages

The adjustable head provides five position settings (0°/22.5°/45°/67.5°/90°) for versatile access in tight or awkward angles, and the shortest head length of 11 cm enhances manoeuvrability. High idle speed of up to 1,300 rpm supports fast drilling progress. Keyless Auto-Lock chuck allows quick bit changes, while the battery management features extend runtime and battery lifetime.

Suitable for

• Drilling small holes in wood and composite materials (up to 10 mm)
• Driving screws in confined spaces and at angled positions
• Installation work in cabinets, furniture assembly and electrical boxes

Key specifications

• Model: Bosch 0601390909
• Power source: 12 V Lithium‑Ion battery
• Weight: 1.2 kg
• Chuck capacity: 10 mm Auto‑Lock (keyless)
• No‑load speed: up to 1,300 rpm (1st gear)
• Adjustable head positions: 0° / 22.5° / 45° / 67.5° / 90°
• Built‑in light: Yes
• Battery indicator: 3 LEDs

How to use

Select the appropriate head angle for the workpiece, insert the correct drill bit or screwdriver bit into the 10-mm Auto-Lock chuck and secure it. Use the motor brake for controlled screw placement. Start at a lower speed or torque setting where applicable, then increase speed up to 1,300 rpm for drilling. Monitor the 3-LED battery indicator and recharge the Bosch lithium-ion battery before deep discharge to preserve battery life. Follow standard safety practices: wear eye protection, secure the workpiece and keep hands away from the rotating bit.

Recommendations

For best results in tight or angled applications, use short bits and set the head to the smallest effective angle. Charge the battery using the compatible Bosch charger and avoid full deep discharge to maintain battery performance.
