RESISTER Mast Mounting Bracket for Outdoor Wall Network Cabinets IP55/IP65 (90RRMH)

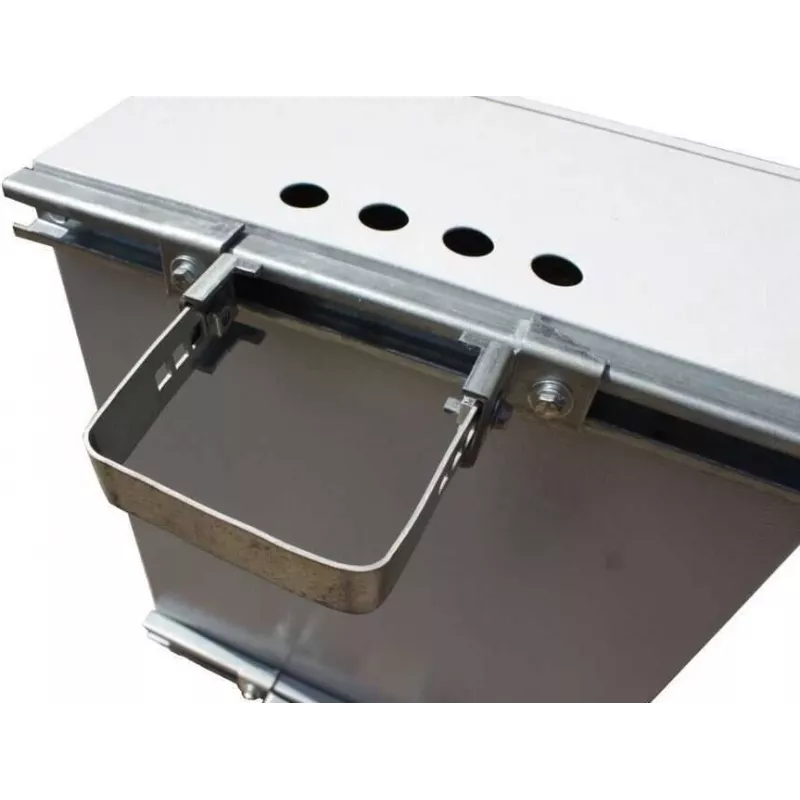

The RESISTER Mast Mounting Bracket (90RRMH) is a robust and reliable solution for securely mounting outdoor wall-mounted network cabinets with an IP protection rating greater than 54. Designed for demanding environments, this kit ensures your cabinet remains stable and protected against the elements.

Advantages

Made from galvanized steel with corrosion protection, this mounting kit offers exceptional durability and weather resistance. The U-bolt clamping mechanism allows for easy installation on poles with diameters from 40 to 120 mm, providing a secure fit for various outdoor setups.

Suitable for

• Outdoor wall-mounted network cabinets with IP55 or IP65 rating
• Pole/mast mounting applications in telecommunications, IT, and industrial environments
• Vertical pole mounting on structures such as utility poles, columns, or dedicated masts

Key specifications

• Product Type: Mast Mounting Kit
• Material: Galvanized Steel
• Colour: Grey
• Compatible Pole Diameter: 40 - 120 mm
• Number of Brackets: 2
• Mounting Hardware Included: Yes (U-bolts, nuts, washers)
• Corrosion Protection: Yes
• Weather Resistance: Yes
• Installation Orientation: Vertical Pole Mounting
• Package Contents: 2x Mounting Brackets, 2x U-Bolts, Nuts, Washers

Recommendations

For optimal performance, ensure the pole diameter is within the specified range and that the cabinet's IP rating matches your environmental requirements. Always follow the installation instructions provided.
