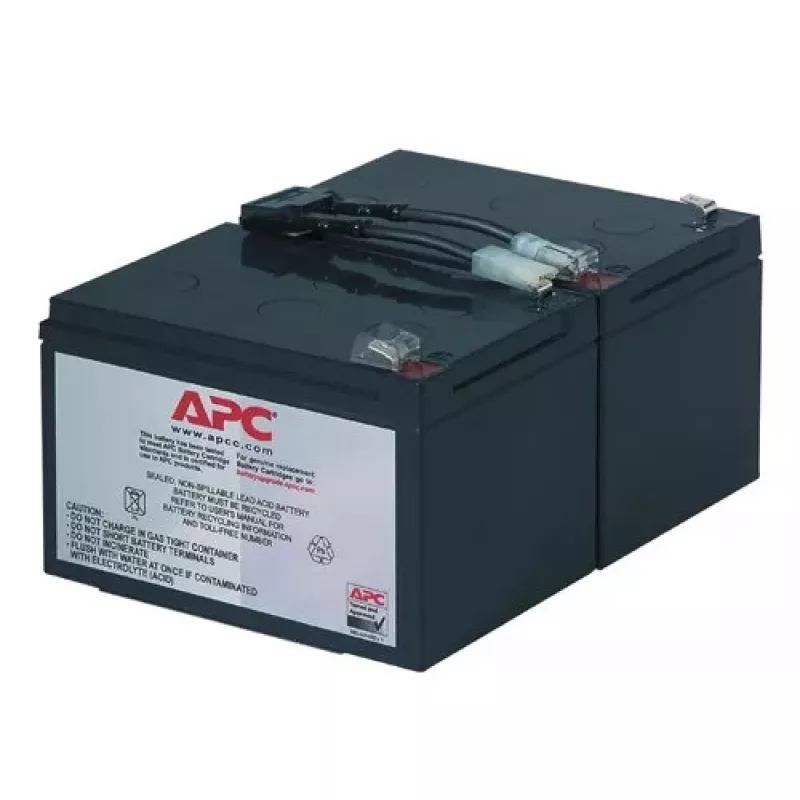

Replacement Battery Cartridge APC RBC6 11Ah 12VDC

This APC Replacement Battery Cartridge (RBC6) is a VRLA sealed lead-acid battery with 11Ah capacity and 12V DC output, designed to restore the original runtime and performance of compatible APC UPS units. The cartridge is intended for easy installation into supported Smart-UPS Line-Interactive SMC, SUA and SMT models and is supplied with a two-year warranty.

Advantages

The RBC6 uses sealed lead-acid (VRLA) technology for maintenance-free operation and reliable backup power. Its form factor and connector compatibility ensure straightforward replacement in supported APC UPS models. The battery's rated 11Ah capacity at 12V provides predictable run-time characteristics for the intended UPS applications.

Suitable for

• APC Smart-UPS Line-Interactive SMC models
• APC Smart-UPS Line-Interactive SUA models
• APC Smart-UPS Line-Interactive SMT models

Key specifications

• Model: APC RBC6
• Capacity: 11 Ah
• Voltage: 12 V DC
• Battery type: Sealed Lead Acid (VRLA)
• Weight: 7.68 kg
• Dimensions: 195.6 x 152.4 x 94 mm
• Colour: Black
• Warranty: 2 years

How to use

Power down the UPS according to the manufacturer's shutdown procedure and disconnect it from mains power. Open the UPS battery compartment, remove the exhausted battery cartridge, and install the APC RBC6 cartridge ensuring the connector is fully seated. Close the compartment, reconnect mains power and follow the UPS start-up routine to allow the unit to recognize the new battery and begin charging.

Recommendations

Store and operate the battery in a dry, cool environment within the UPS manufacturer's recommended temperature range. Replace the cartridge with an identical APC RBC6 unit to maintain UPS performance; dispose of the old battery in accordance with local regulations for lead-acid batteries.
