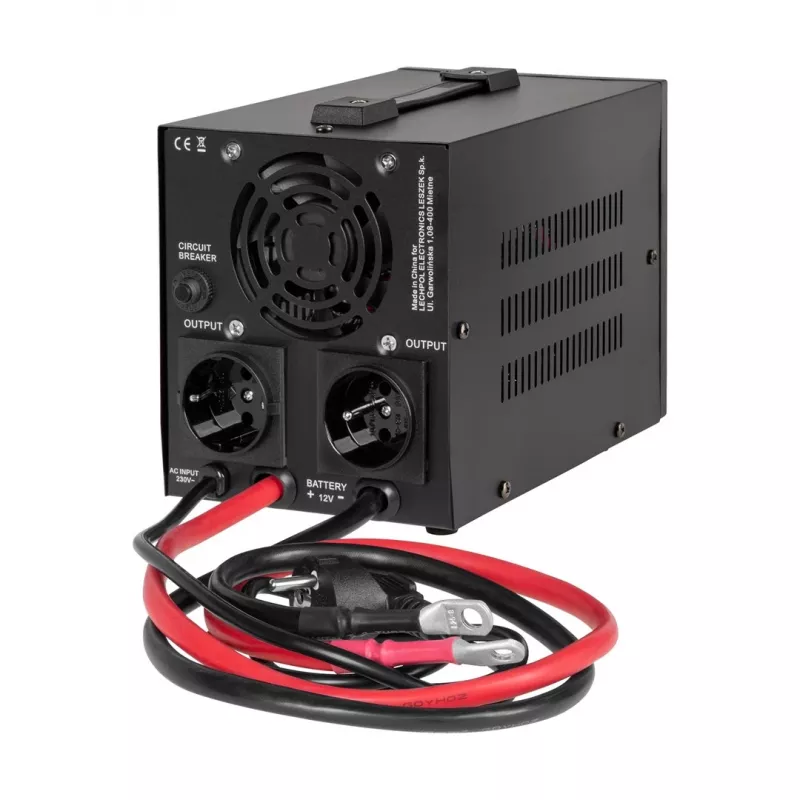

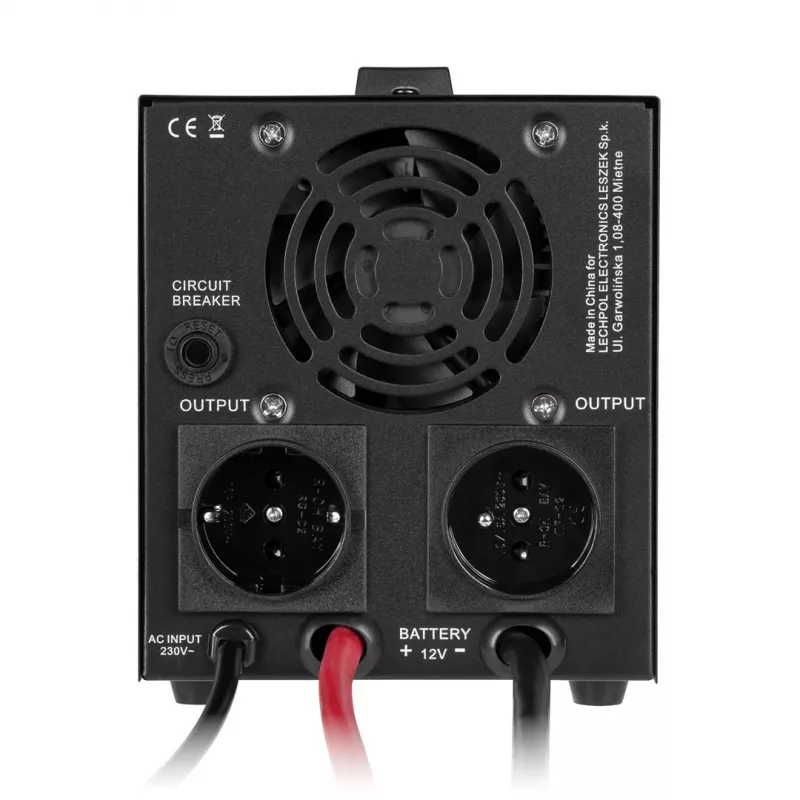

Rebel POWER-500-LFP4 Pure Sine Wave Inverter with Charging Function 12V 230V 500VA/300W

The Rebel POWER-500-LFP4 is a pure sine wave inverter with integrated charging function, designed to convert 12V DC to 230V AC. With a continuous power of 300W and apparent power of 500VA, it is ideal for powering sensitive electronic devices in mobile homes, boats, or off-grid systems. The built-in 10A charger supports lead-acid and LiFePO4 batteries, making it a versatile power solution.

Advantages

Pure sine wave output ensures clean power for sensitive electronics. The LCD display provides real-time monitoring of battery voltage, output power, and charging status. Active cooling with a fan ensures reliable operation even under load. Multiple protection features safeguard against overload, short circuit, overvoltage, undervoltage, and overheating.

Suitable for

• Mobile homes and caravans
• Boats and yachts
• Off-grid solar systems
• Emergency backup power
• Powering tools and appliances in remote locations

Key specifications

• Output waveform: Pure sine wave
• Continuous power: 300W
• Peak power: 600W
• Apparent power: 500VA
• DC input voltage: 12V (range 10.5V - 15.5V)
• AC output voltage: 230V
• AC output frequency: 50Hz
• Charging current: 10A
• Supported battery types: Lead-acid (AGM, Gel, Flooded), LiFePO4
• Efficiency: >85%
• AC output sockets: 1x Schuko (Type F)
• Protection: Overload, short circuit, overvoltage, undervoltage, overheating
• Cooling: Active (fan)
• Display: LCD
• Operating temperature: -10°C to +50°C

Recommendations

For optimal performance, use with a deep-cycle battery of appropriate capacity. Ensure proper ventilation for cooling. The inverter is suitable for continuous use within its rated power.
