RCA Female to Solder Connector DeLOCK 86787

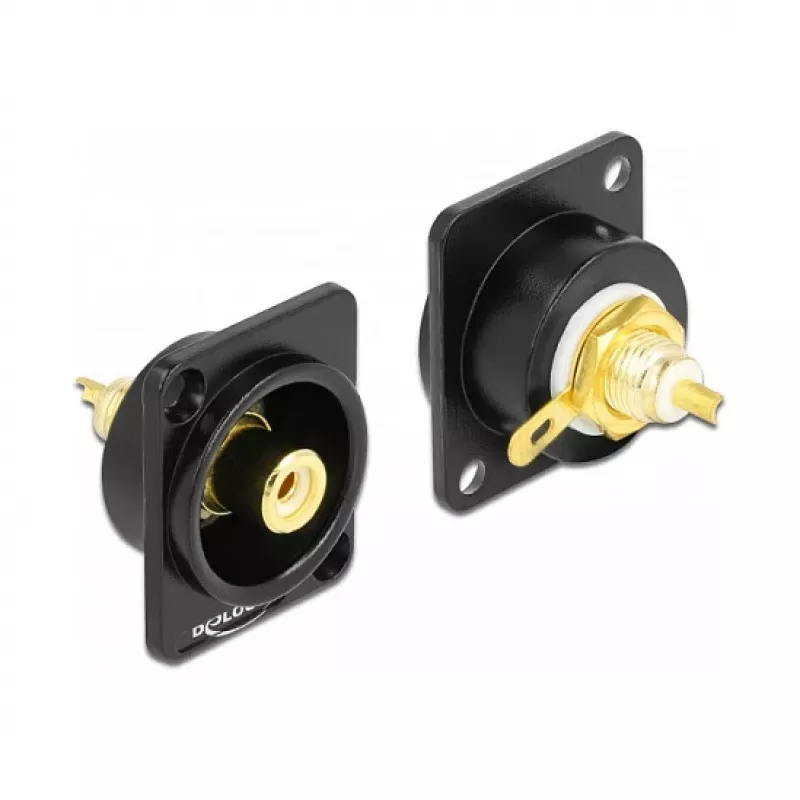

The DeLOCK RCA Female to Solder Connector (model 86787) is a compact panel-mount RCA socket designed for installation in panels or cases with D-type openings for XLR jacks. The black female RCA connector accepts standard RCA plugs and is intended for integrating analogue audio equipment into professional audio systems or custom installations. Its dimensions (25.6 mm width, 28.4 mm depth, 30.8 mm height) make it suitable for space-conscious assemblies and repair work.

Advantages

This RCA female connector provides a stable mechanical mounting for panels or cases with D-type cutouts and allows direct soldering of signal and ground conductors. The standard RCA female interface ensures compatibility with common analogue audio cables. The compact footprint and durable construction simplify integration into custom audio installations, repairs, or equipment modifications.

Suitable for

• Integrating analogue audio devices into professional audio systems
• Custom audio panel builds and enclosures with D-type/XLR-style openings
• Repairing or replacing RCA sockets in audio equipment
• DIY electronics projects requiring a panel-mounted RCA female connector

Key specifications

• Brand: DELOCK
• Model / MPN: 86787
• EAN: 4043619867875
• Connector type: RCA female (panel mount)
• Mounting: fits D-type openings for XLR jacks (panel/case mount)
• Termination: solder connections
• Colour: Black
• Dimensions (W × D × H): 25.6 mm × 28.4 mm × 30.8 mm

How to use

Prepare a D-type or compatible opening in the panel or enclosure, insert the DeLOCK RCA connector and secure it according to the panel design. Solder the signal and ground wires to the provided solder terminals, ensuring correct polarity and solid solder joints. Once soldered, verify mechanical stability and test the connection with appropriate RCA cables and audio equipment.

Recommendations

Use standard RCA cables and ensure solder joints are clean and insulated. When installing in professional racks or flight cases, confirm the D-type opening dimensions match the connector and allow strain relief for attached cables to prevent stress on the solder joints.
