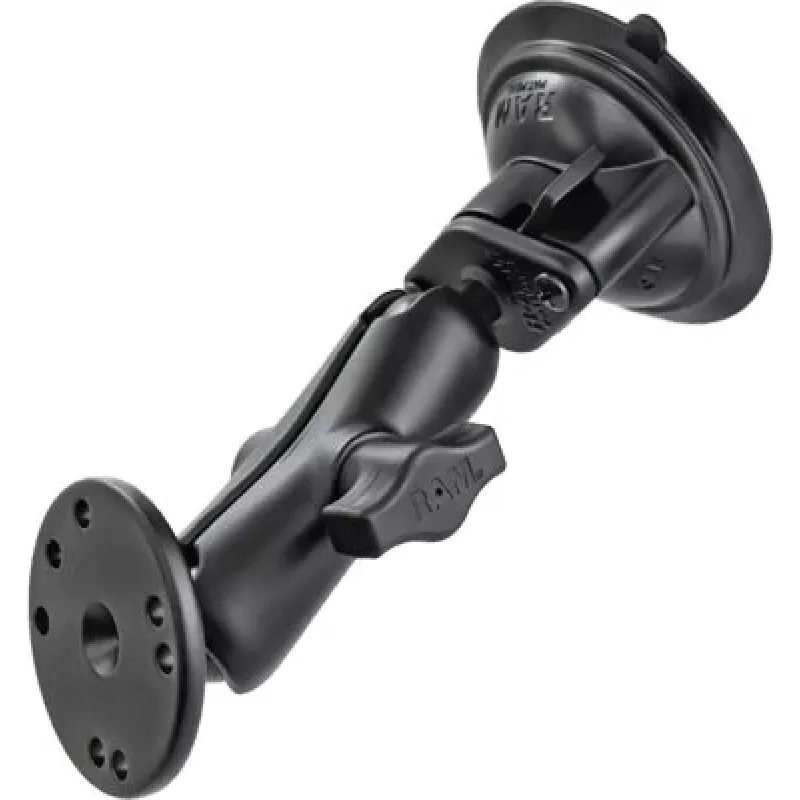

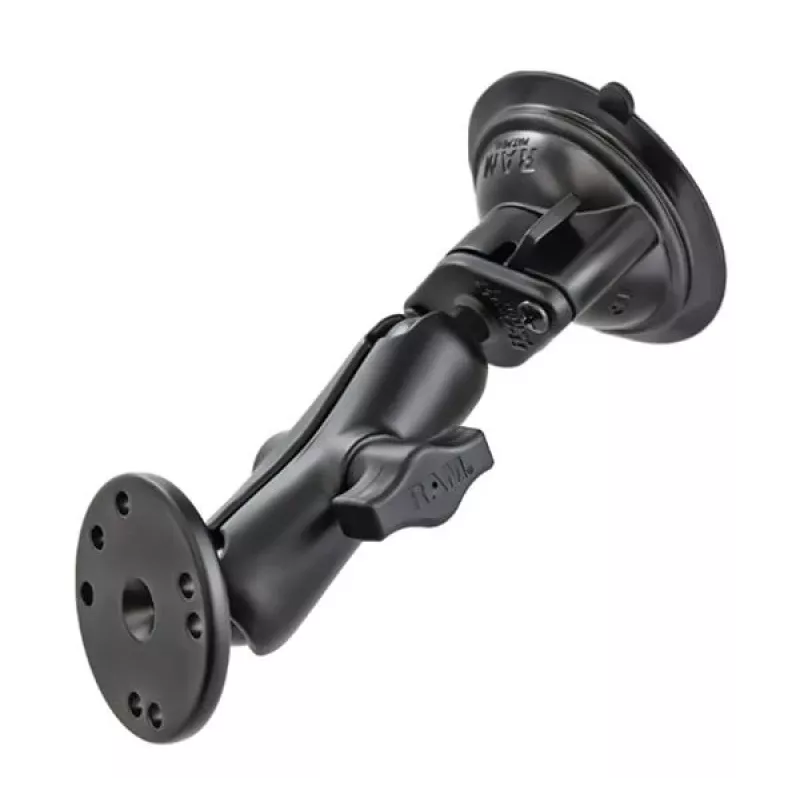

RAM Mounts Suction Cup Mount with AMPS Adapter - B-Ball (1 inch), Diamond Base Plate, Medium Arm, Round Base Plate (RAM-B-166-202U)

Universal suction cup mounting kit with AMPS adapter, featuring a 1-inch B-size ball system for secure and versatile device positioning. The high-strength composite suction base adheres firmly to flat, non-porous surfaces such as glass, plastic, or metal, providing a stable foundation for your device. The medium double socket arm offers extensive articulation, allowing you to adjust the viewing angle to your exact preference. This kit includes a diamond base plate with AMPS hole pattern and a round base plate with a 4-hole pattern, enabling compatibility with a wide range of devices and mounts. Constructed from powder-coated marine-grade aluminum, the arm and bases are built to withstand harsh environments, making this kit ideal for use in vehicles, boats, or any smooth surface application.

Advantages

The RAM-B-166-202U offers exceptional adjustability and durability. The double socket arm allows for near-infinite positioning, ensuring optimal visibility and accessibility. The marine-grade aluminum construction resists corrosion and wear, providing long-lasting performance even in demanding conditions. The suction cup base can be easily repositioned without leaving residue, making it perfect for temporary or semi-permanent installations. The inclusion of both diamond and round base plates expands compatibility, allowing you to mount various devices such as GPS units, cameras, or small displays.

Suitable for

• Vehicle dashboards and windshields
• Boat consoles and smooth fiberglass surfaces
• Industrial equipment with flat metal panels
• Any non-porous surface requiring a secure, adjustable mount

Key specifications

• Mounting Method: Suction Cup
• Ball Size: B-Size (1 inch / 2.54 cm)
• Arm Length (Center-to-Center): 3.69 inches (9.37 cm)
• Base Plate 1: Diamond Base Plate with AMPS 4-hole pattern (1.181" x 1.496" / 30mm x 38mm)
• Base Plate 2: Round Base Plate with 4-hole pattern (1.812" x 1.188" / 46mm x 30mm)
• Material (Suction Cup Base): High-Strength Composite
• Material (Arm & Bases): Powder Coated Marine-Grade Aluminum
• Maximum Recommended Weight: 2 lbs (approx. 0.91 kg)
• Color: Black

Recommendations

For best results, ensure the mounting surface is clean and dry before attaching the suction cup. Periodically check the suction for a secure hold, especially in temperature-changing environments. Use the included hardware to attach your device to the base plates, and tighten the socket arm to your desired friction level for stable positioning.
