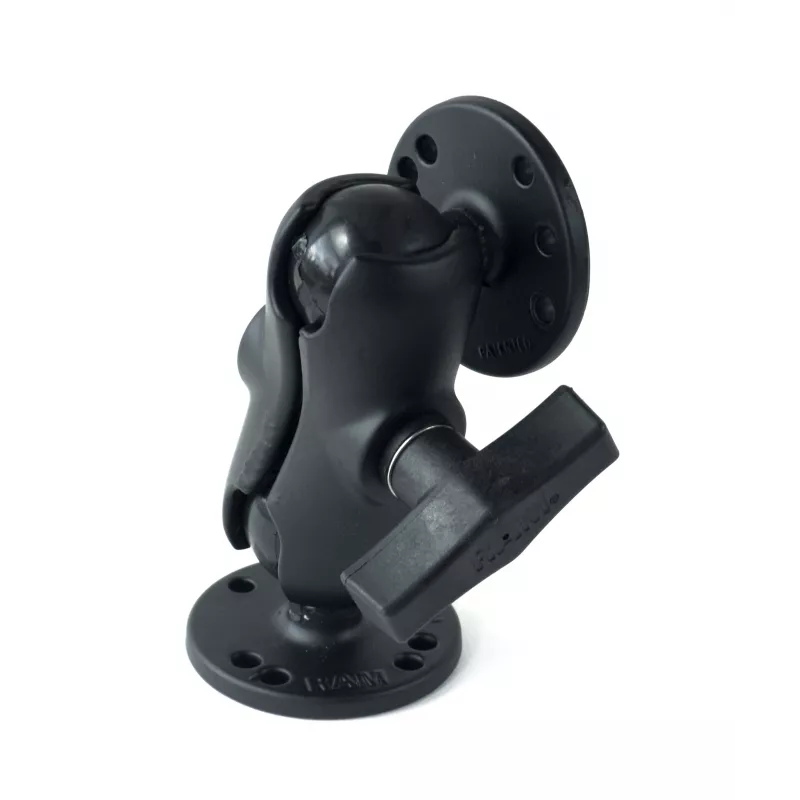

RAM MOUNTS C Size Short Double Socket Arm with 2x 2.5 inch Round Bases

The RAM MOUNTS C Size Short Double Socket Arm with 2x 2.5" Round Bases is a versatile mounting solution designed for secure and adjustable device positioning. This kit includes a short double socket arm and two round bases, allowing for flexible configurations in various applications such as automotive, marine, and industrial environments. Constructed from powder-coated marine-grade aluminum, it offers exceptional durability and corrosion resistance, ensuring long-lasting performance even in harsh conditions.

Advantages

This mounting system provides multi-angle articulation through its ball and socket design, enabling precise positioning of your device. The included components are fully compatible with all RAM Mounts C Size accessories, allowing for easy expansion and customization. The rubber ball components absorb vibration, protecting your device from shocks during travel or operation. With a load capacity of up to 4 lbs (1.81 kg), it supports a wide range of devices including GPS units, tablets, and cameras.

Suitable for

• Universal mounting of GPS devices, tablets, smartphones, and cameras
• Automotive, marine, and industrial applications
• Flat surface mounting using the round bases
• Users requiring a robust and adjustable mounting solution

Key specifications

• Mounting System Type: Ball and Socket
• Ball Size: C Size (1.5 inch / 38.1 mm)
• Arm Type: Double Socket Arm
• Arm Length (Socket-to-Socket): 3 inches (76.2 mm)
• Arm Overall Length: 3.69 inches (93.7 mm)
• Base Type: Round Plate Base
• Base Diameter: 2.5 inches (63.5 mm)
• Base Hole Pattern: 4-Hole AMPS (1.181" x 1.496" / 30mm x 38mm center-to-center)
• Material (Arm & Base): Powder-Coated Marine-Grade Aluminum
• Material (Ball): Rubber
• Load Capacity: Up to 4 lbs (1.81 kg)
• Color: Black
• Warranty: RAM Mounts Lifetime Warranty

Recommendations

For optimal performance, ensure the mounting surface is clean and flat before installing the bases. Use the included hardware for secure attachment. This kit is ideal for users who need a reliable and adjustable mounting solution for their devices in demanding environments.
