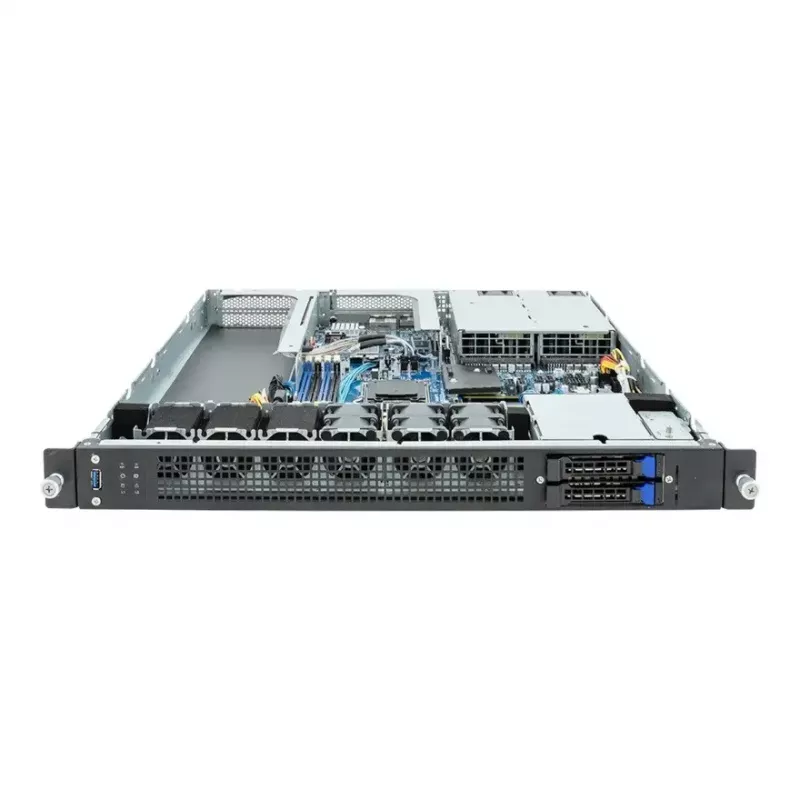

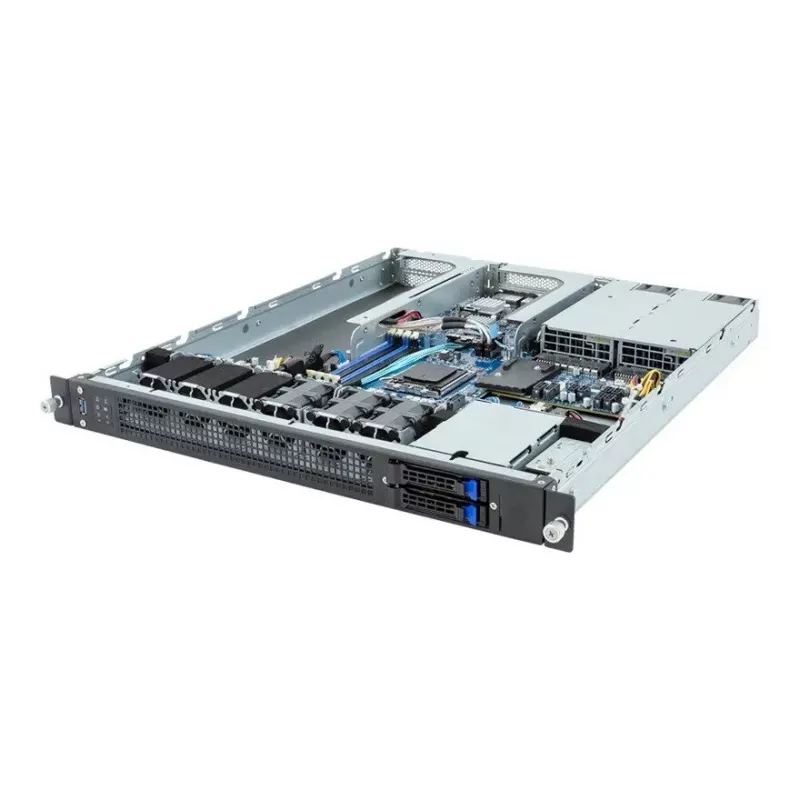

Rack server 1U GIGABYTE E133-C10-AAG1 — Socket AM5, AMD EPYC 4004 support, 4x DDR5 DIMM, 800W 80 PLUS Titanium PSU

The GIGABYTE E133-C10-AAG1 is a 1U rack server chassis designed for one Socket AM5 processor and compatible with AMD EPYC 4004 series CPUs. It supports up to four DDR5 RDIMM modules at speeds up to 4000 MHz and includes onboard TPM 2.0 for platform security. Storage options include one M.2 slot and two 2.5" SATA drive bays supporting both HDD and SSD. Expansion is provided by one PCIe x16 Gen5 slot and one PCIe x4 Gen4 slot. The unit integrates dual Gigabit Ethernet ports driven by a Broadcom BCM5720 controller, three front USB 3.2 Gen1 Type-A ports, a Mini DisplayPort, a management LAN port, front LEDs and a power switch. An 800 W 80 PLUS Titanium power supply is fitted to deliver high-efficiency, reliable power within the 1U form factor.

Advantages

The chassis combines high-efficiency power delivery with a compact 1U rack profile through its 800 W 80 PLUS Titanium PSU, ensuring energy-efficient operation and reduced heat output. Support for DDR5 RDIMM modules up to 4000 MHz and modern PCIe Gen5/Gen4 expansion slots provides a platform suitable for memory- and I/O-intensive workloads. Integrated TPM 2.0 and dual Gigabit LAN offer hardware security and reliable network connectivity. Front-facing LEDs, accessible power switch and multiple front ports simplify installation and maintenance in data center environments.

Suitable for

• Small to medium data center rack deployments requiring a single-socket AMD EPYC solution
• Virtualization hosts and lightweight hyperconverged infrastructure nodes
• Network appliances and edge servers with constrained rack space
• Storage or caching servers using one M.2 and up to two 2.5" SATA drives

Key specifications

• Form factor: 1U rack chassis; dimensions: 43.5 mm (H) × 438 mm (W) × 520 mm (D)
• Processor support: Single Socket AM5 compatible with AMD EPYC 4004 series
• Memory: 4 × DDR5 RDIMM DIMM slots; supported RDIMM speeds up to 4000 MHz
• Storage: 1 × M.2 slot; 2 × 2.5" SATA drive bays; supports HDD and SSD
• Expansion: 1 × PCIe x16 Gen5 slot; 1 × PCIe x4 Gen4 slot
• Power: 800 W built-in power supply with 80 PLUS Titanium efficiency
• Networking: Dual Gigabit Ethernet ports (Broadcom BCM5720)
• Front I/O: 3 × USB 3.2 Gen1 Type-A, 1 × Mini DisplayPort, management LAN, front LEDs and power switch
• Environmental limits: operating temperature 10–35 °C; storage temperature −40–60 °C; storage humidity 20–95%

How to use

Install the server into a standard 19-inch rack using appropriate rails or mounting brackets and secure according to rack guidelines. Fit a compatible Socket AM5 AMD EPYC 4004 series CPU and populate up to four DDR5 RDIMM modules in matched slots following the motherboard memory population rules. Connect storage devices to the available M.2 and 2.5" SATA bays, and install expansion cards into the PCIe x16 and x4 slots if additional I/O is required. Attach network and power cabling, and power on the system using the front switch; use the front LEDs and management LAN for status checks and remote management during configuration.

Recommendations

For stable operation, use server-grade DDR5 RDIMMs and follow AMD and GIGABYTE guidance on processor cooling and BIOS updates. Maintain ambient rack temperatures within the recommended 10–35 °C range and ensure adequate front-to-rear airflow. Use the 800 W Titanium PSU to supply attached components and avoid overloading by verifying total system power draw before deploying additional expansion cards or drives. Dispose of the product according to electronic waste regulations.
