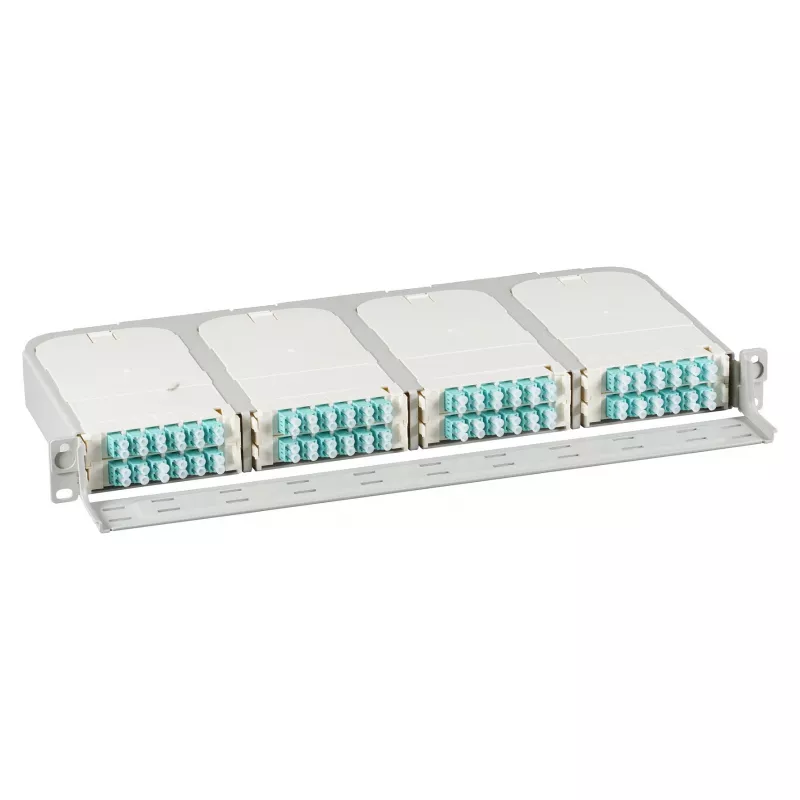

Rack mount 1U carrier for FTTH modules EFB Elektronik FTTH-BGT-1HE — 19 inch 48.3 cm, holds 8 module slots, front cable tray, up to 96 LC ports per 1U

EFB Elektronik FTTH-BGT-1HE is a 19" (48.3 cm) 1U rack-mount carrier engineered for FTTH installations. The unit accepts eight modular inserts (compatible with FTTH-MODUL-X / -XX series) and provides an integrated front cable tray and cable routing to organise fiber connections. As a compact plug & play solution, it enables up to 96 LC ports in a single 1U space, simplifying fiber termination and patching while maximising space efficiency in telecom racks.

Advantages

The carrier offers high port density in a minimal rack footprint, allowing consolidation of fiber terminations into a single height unit. Modular insert compatibility enables flexible configuration and straightforward maintenance: individual modules can be replaced or reconfigured without removing the entire carrier. Built-in cable routing and a front cable tray help maintain orderly bend radii and reduce strain on connectors, improving long-term fiber performance.

Suitable for

Key specifications

How to use

Mount the FTTH-BGT-1HE into a standard 19" rack occupying a single 1U space. Install the modular inserts (FTTH-MODUL-X or -XX series) into the eight available slots according to required port configuration. Route incoming and patch cables through the integrated cable routing paths and secure them in the front cable tray to maintain proper bend radii. Label ports and modules as needed for operational clarity. Modules can be removed or swapped individually for service without dismounting the full carrier.

Recommendations

Use factory-recommended modules (FTTH-MODUL-X / -XX) to ensure correct fit and performance. Maintain appropriate bend radii when routing fibers, and secure patch cords to avoid strain on LC connectors. Plan port labelling and rack layout in advance to optimise use of the high-density 1U space.
