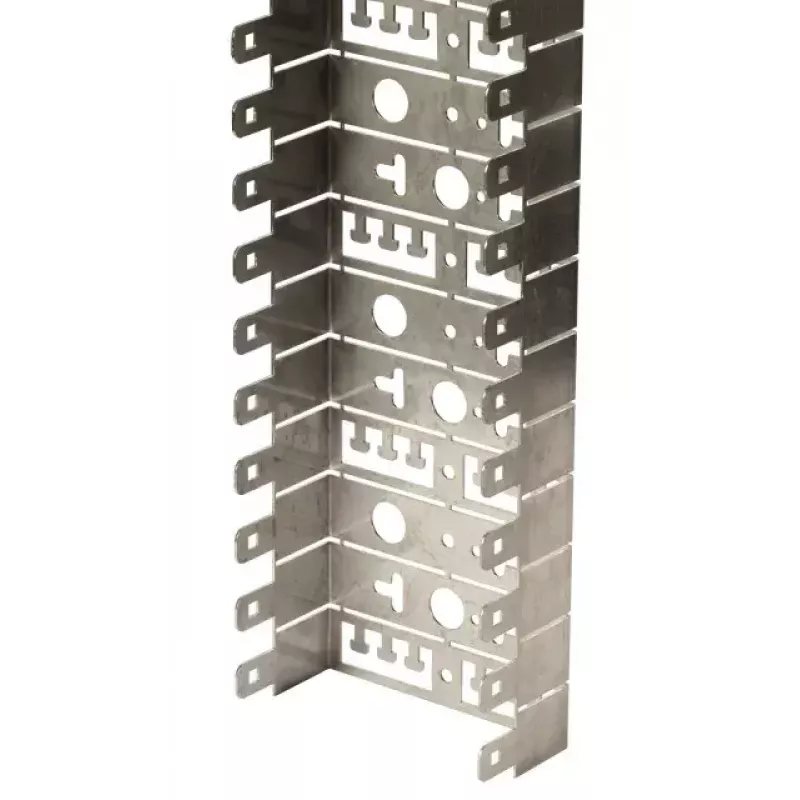

Cable dump panel EFB Elektronik 46010.50

The EFB Elektronik 46010.50 cable dump panel provides a compact, metal solution for organizing and routing cables in 19-inch rack installations. With dimensions of 104 mm width and 22 mm depth and a metallic finish, the panel is intended to be mounted in standard rack units to collect, redirect, and conceal cable runs while maintaining a consistent appearance and supporting airflow within the rack.

Advantages

The metallic construction offers mechanical durability and a stable mounting surface for cable bundles. Its shallow depth minimizes intrusion into rack space, making it suitable for tight installations where preserving usable depth is important. The panel’s width aligns with common rack mounting standards, enabling straightforward integration with patch panels and equipment. By channeling cables neatly, it contributes to improved serviceability and reduces the risk of cable strain or accidental disconnection.

Suitable for

• Organizing patch cords and network cables in 19-inch server and network racks
• Horizontal cable routing behind patch panels or switches
• Environments where shallow depth cable management is required
• Data centers, server rooms, and telecommunications cabinets

Key specifications

• Material: metallic finish suitable for rack use
• Width: 104 mm
• Depth: 22 mm
• Form factor: rack-mountable cable dump panel for 19-inch racks
• Function: cable collection and routing to improve organization and airflow

How to use

Install the cable dump panel in the desired horizontal position within a 19-inch rack using appropriate rack screws. Route cable bundles into the panel’s open area so that they are supported and redirected along the intended path; avoid forcing excessively large bundles into a confined space. Position patch cords and individual cables to prevent sharp bends and to maintain access to adjacent equipment. After routing, secure cables with ties or straps outside the panel as needed to prevent movement and to maintain the organized layout.

Recommendations

Use the panel as part of a broader cable management strategy: combine with vertical managers, brush panels, or cable ties to distribute mechanical load and preserve airflow. Verify that cable bundles do not exceed the panel’s effective capacity and regularly inspect for strain or abrasion where cables contact the metal surface.
