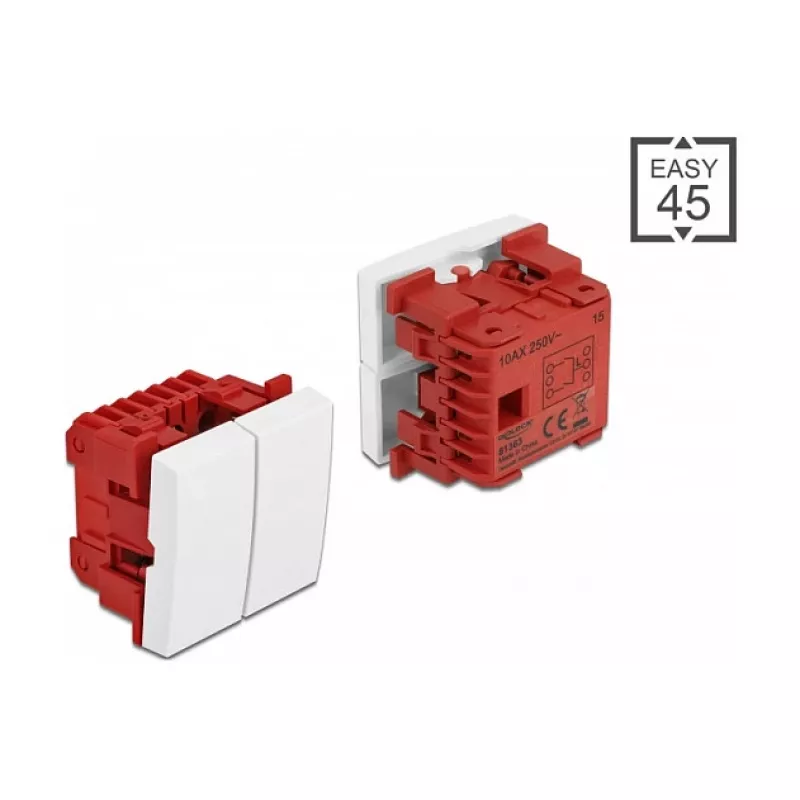

Pushbutton switch DELOCK Easy 45 1P White — 250 V AC, 10 A, 45×45×37 mm

DELOCK Easy 45 1P White is a single-pole pushbutton switch designed for control and switching of low-voltage AC circuits. The switch is rated for 250 V AC and a nominal current of 10 A, and its compact housing measures 45×45×37 mm. The white finish and standardized 45 mm width make it suitable for panel installation, appliance control and small electrical projects where a reliable manual on/off control is required.

Advantages

The pushbutton switch offers a simple snap-in mechanism that secures the module in place while allowing easy removal when needed. Compatibility with the DELOCK Easy 45 modular system enables integration with other standardized modules, creating a tidy interface between electrical and peripheral devices. The product's compact dimensions and single-pole design provide a space-saving solution for switches in control panels and modular installations.

Suitable for

• Switching lighting circuits and small power supplies
• Panel-mounted control points in furniture or wall modules
• Small electrical or DIY projects requiring a 1P pushbutton
• Integration into modular Easy 45 holders and cable ducts

Key specifications

• Poles: single-pole (1P)
• Rated voltage: 250 V AC
• Rated current: 10 A nominal
• External dimensions: 45 × 45 × 37 mm
• Color: white
• Mounting: snap-in modular installation compatible with 45 mm system

How to use

Install the DELOCK Easy 45 1P pushbutton into a compatible module holder or cable duct designed for 45 mm modules. Ensure power is disconnected before wiring. Connect the supply and load conductors to the switch terminals according to applicable wiring regulations and secure connections firmly. After wiring, snap the module into the holder until it locks into place. Restore power and test the switch function to confirm proper on/off control of the connected circuit.

Recommendations

Use the switch within its rated limits of 250 V AC and 10 A. For installations in panels or enclosures, ensure appropriate protection (fuses or circuit breakers) and compliance with local electrical codes. When integrating with other Easy 45 modules, verify mechanical compatibility with the chosen holder and avoid exposing the switch to moisture or environments exceeding its intended use.
