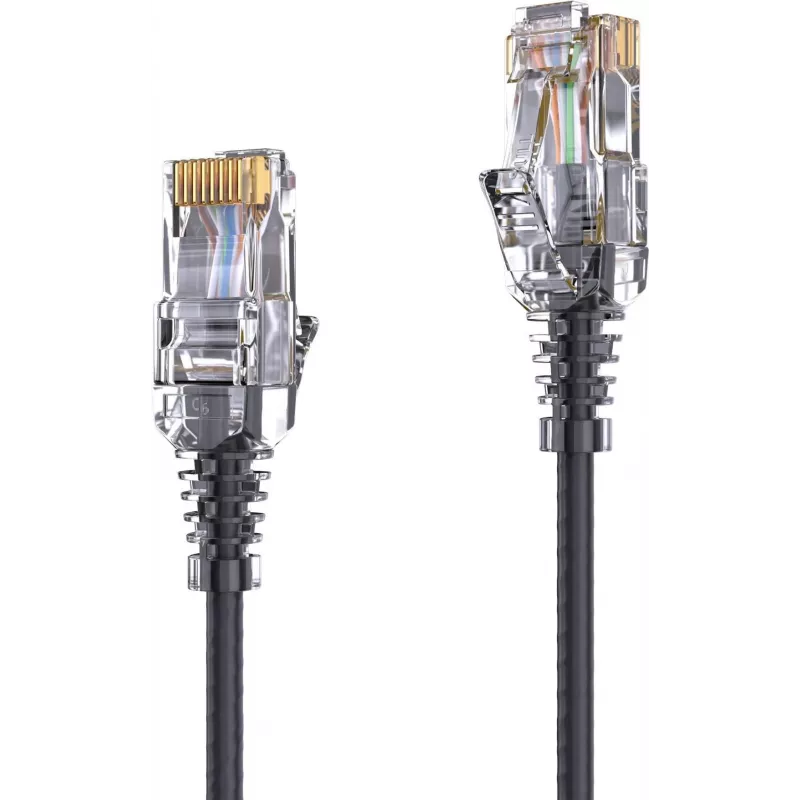

PureLink AVIT Media Series Slim Cat.6a S/FTP Patch Cable, 0.5 m, Black

Ethernet patch cable engineered for 10 Gigabit performance in a slim, space-saving profile. The PureLink AVIT Media Series Slim delivers reliable Cat.6a connectivity with S/FTP shielding and LSZH jacket, ideal for high-density installations where airflow and cable management matter.

Advantages

At just 6.0 mm outer diameter, this slim cable reduces clutter and improves airflow in racks and patch panels. S/FTP construction (PiMF with overall braid) provides superior protection against alien crosstalk and EMI, ensuring stable 10GBASE-T transmission up to 500 MHz. Gold-plated RJ-45 connectors with latch protection resist corrosion and accidental snagging. The LSZH jacket emits low smoke and zero halogen, making it safe for public buildings and confined spaces. Stranded 26/7 AWG copper conductors offer flexibility for easy routing without performance loss.

Suitable for

• 10 Gigabit Ethernet networks in data centers and server rooms
• High-density patch panels and rack cabling
• PoE++ applications up to IEEE 802.3bt (90W)
• Public buildings requiring LSZH compliance
• Professional AV installations needing reliable, slim cabling

Key specifications

• Category: Cat.6a (Class EA)
• Shielding: S/FTP (PiMF, overall braid)
• Length: 0.5 m
• Colour: Black
• Connectors: RJ-45 male to RJ-45 male, gold-plated (50µm)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Conductor: 100% copper, AWG 26/7 stranded
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Wiring: TIA/EIA-568B
• Outer diameter: approx. 6.0 mm
• Flame retardancy: IEC 60332-1
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Operating temperature: -20°C to +60°C

Recommendations

For best performance, pair with shielded Cat.6a patch panels and keystone jacks. Avoid sharp bends; maintain a minimum bend radius of 4x cable diameter. Use in environments where low smoke and halogen-free materials are required.
