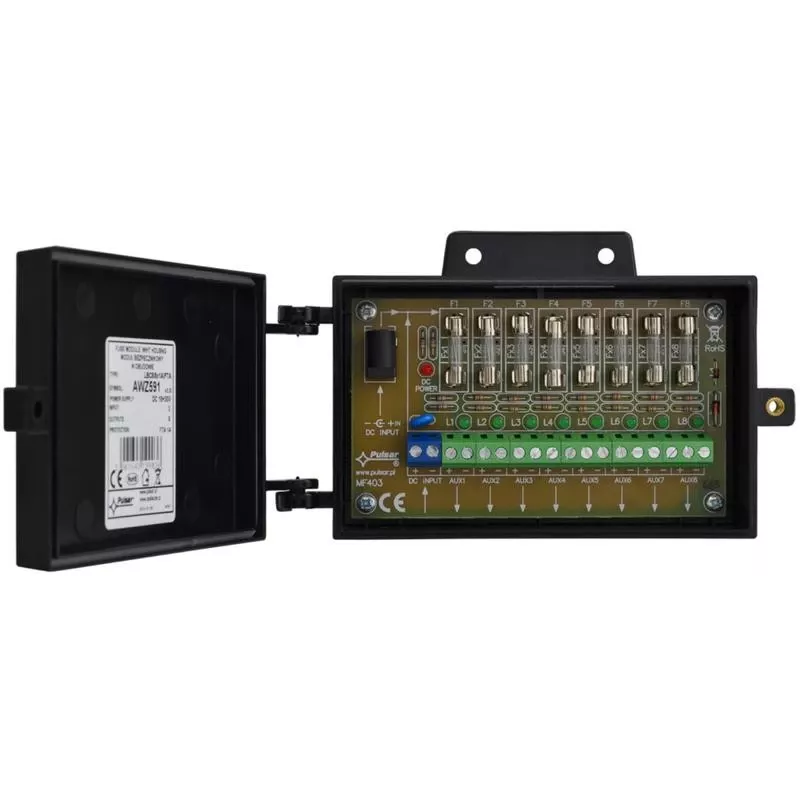

PULSAR AWZ591 Fused Power Distribution Module 8-Channel 0.5A per Channel 10-30V DC

The PULSAR AWZ591 is a compact fused power distribution module designed for reliable power distribution in CCTV, access control, and alarm systems. It features 8 individually fused outputs, each rated at 0.5A, with a total output current of 4A. The module accepts an input voltage from 10V to 30V DC and outputs the same voltage as the input. Each channel is protected by a 5x20mm glass fuse and has an LED indicator for fuse status. The module is surface mountable via mounting holes and uses screw terminals for secure connections.

Advantages

• Individual fuse protection per channel prevents total system failure.
• LED indicators provide quick visual status of each fuse.
• Wide input voltage range (10-30V DC) offers flexibility.
• Compact PCB design saves space in enclosures.
• Suitable for 24/7 operation in security systems.

Suitable for

• CCTV systems
• Access control systems
• Alarm systems
• Any low-voltage DC power distribution requiring individual fuse protection

Key specifications

• Product Type: Fused Power Distribution Module
• Number of Outputs: 8
• Output Current per Channel: 0.5 A (500 mA)
• Total Output Current: 4 A
• Input Voltage: 10 V DC to 30 V DC
• Output Voltage: Equal to Input Voltage (Uin)
• Fuse Type: Glass Fuse (5x20 mm)
• Fuse Rating per Channel: 0.5 A
• Protection Features: Short-circuit, Overload
• Indicators: 8x LED (Fuse Status per channel)
• Connectors: Screw Terminals
• Operating Temperature: -10°C to +40°C
• Mounting: Surface Mount (via mounting holes)
• Housing Material: PCB (Printed Circuit Board)

Recommendations

For optimal performance, use with a regulated DC power supply within the specified input voltage range. Ensure proper fuse ratings are used for connected devices. The module is intended for indoor use only.
