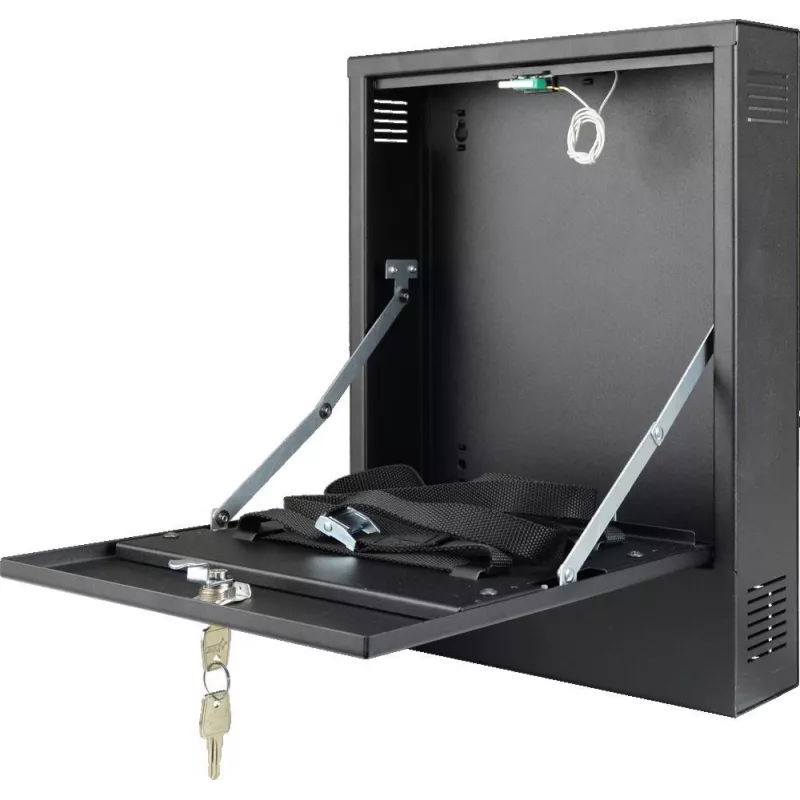

Pulsar AWO528 DVR Enclosure, Steel, Black, Wall Mount

The Pulsar AWO528 is a robust and secure wall-mountable enclosure designed for DVRs, NVRs, network switches, and mini PCs. Crafted from 1.0 mm steel sheet with a black RAL 9005 finish, it provides reliable protection for your surveillance and network equipment in indoor environments.

Advantages

This enclosure offers tamper protection via a microswitch and a cylinder key lock (2 keys included), ensuring your devices are safe from unauthorized access. Passive ventilation through perforated sides, top, and bottom maintains adequate airflow without the need for fans. Multiple cable entry knock-outs (top, bottom, rear) simplify installation, while internal mounting holes allow flexible device placement.

Suitable for

• DVRs and NVRs for surveillance systems
• Network switches and routers
• Mini PCs and other small network devices

Key specifications

• Enclosure Type: DVR/NVR/Network Device Enclosure
• Material: Steel Sheet (1.0 mm thickness)
• Colour: Black (RAL 9005)
• Mounting Type: Wall Mount
• Lock Type: Cylinder Key Lock (2 keys included)
• Tamper Protection: Yes (Microswitch)
• Ventilation: Passive (Perforated sides, top, bottom)
• Cable Entry: Multiple knock-outs (top, bottom, rear)
• Protection Class: IP20
• Maximum Load Capacity: 10 kg
• Application Environment: Indoor

Recommendations

For optimal security, mount the enclosure in a discreet location and ensure all cable entries are properly sealed. The AWO528 is an ideal choice for protecting your valuable network and surveillance equipment.
