Pulsar AWO150 Alarm Enclosure, Metal, White, 10 kg Load Capacity, 17Ah Battery Space

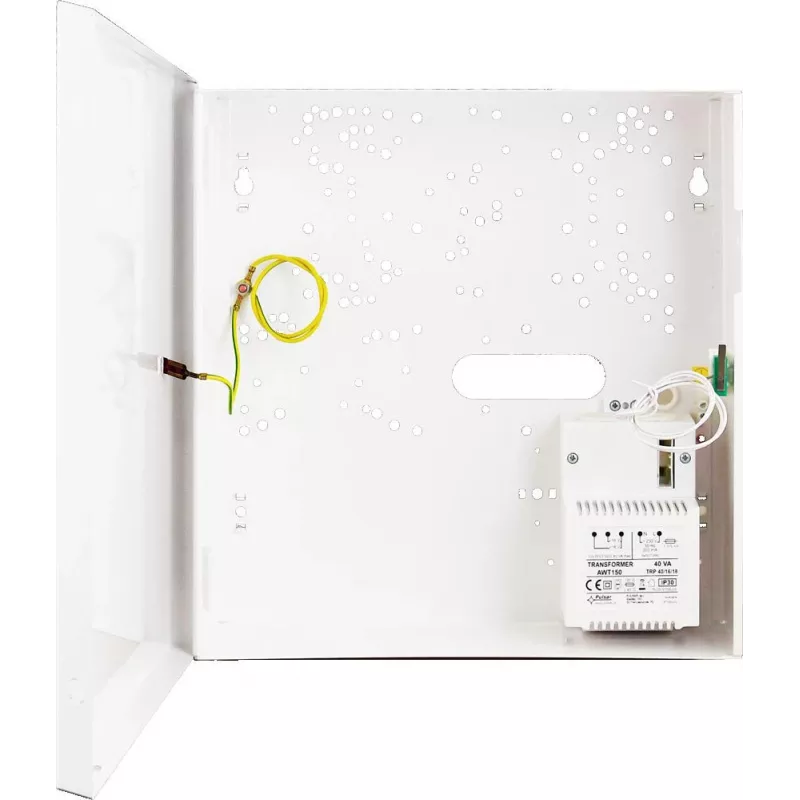

The Pulsar AWO150 is a robust metal enclosure designed for alarm systems, access control, and CCTV applications. Manufactured from 0.8 mm steel sheet with a white RAL 9003 finish, it offers reliable protection for your electronic components. The enclosure features a tamper-proof microswitch that triggers upon opening or detachment from the wall, ensuring security. With space for up to a 17Ah/12V battery and a maximum load capacity of 10 kg, it is suitable for a variety of installations. The surface-mounted design includes ventilation openings and multiple knock-out cable entries for flexible wiring. The key lock comes with two keys, and the IP20 rating makes it ideal for indoor use.

Advantages

Durable steel construction with tamper protection ensures long-lasting security. The spacious interior accommodates large batteries and multiple devices, while the ventilation openings prevent overheating. Easy surface mounting and multiple cable entries simplify installation.

Suitable for

• Alarm systems
• Access control systems
• CCTV installations
• Security equipment housing

Key specifications

• Enclosure Type: Metal Enclosure
• Material: Steel Sheet, 0.8 mm thickness
• Colour: White (RAL 9003)
• Mounting: Surface Mounted
• Tamper Protection: Microswitch (enclosure opening, detaching from wall)
• Battery Space: Up to 17Ah/12V
• IP Rating: IP20
• Lock Type: Key Lock (2 keys included)
• Max. Load Capacity: 10 kg
• Operating Temperature: -10°C to +40°C
• Relative Humidity: 10% to 90%
• Ventilation: Yes
• Cable Entries: Multiple knock-out holes
• Certifications: CE, RoHS

Recommendations

This enclosure is an empty unit (transformer not included). Select a suitable power supply and battery separately. Ensure proper ventilation and secure mounting for optimal performance.
