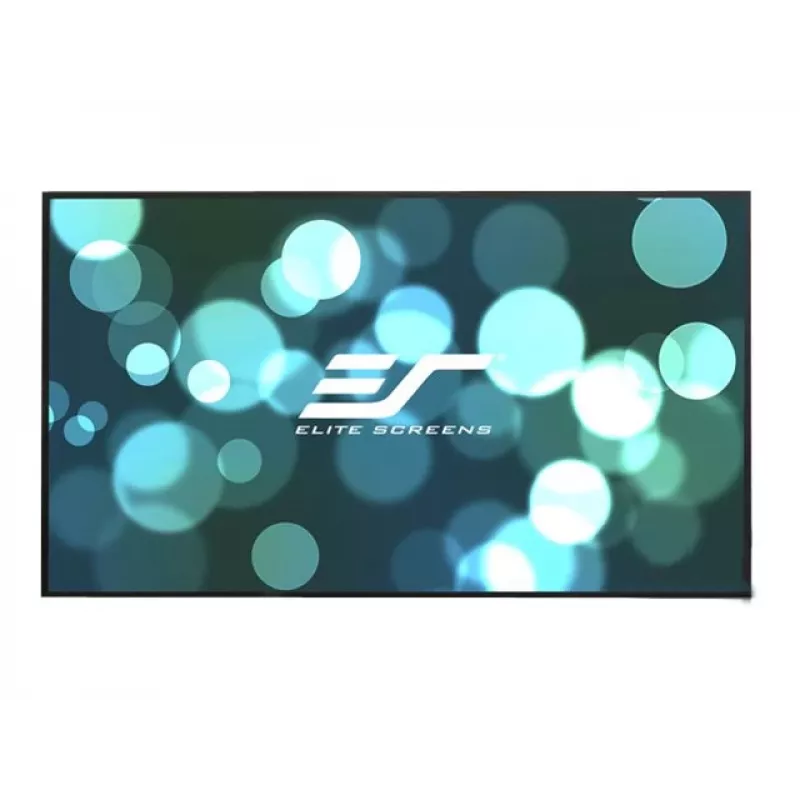

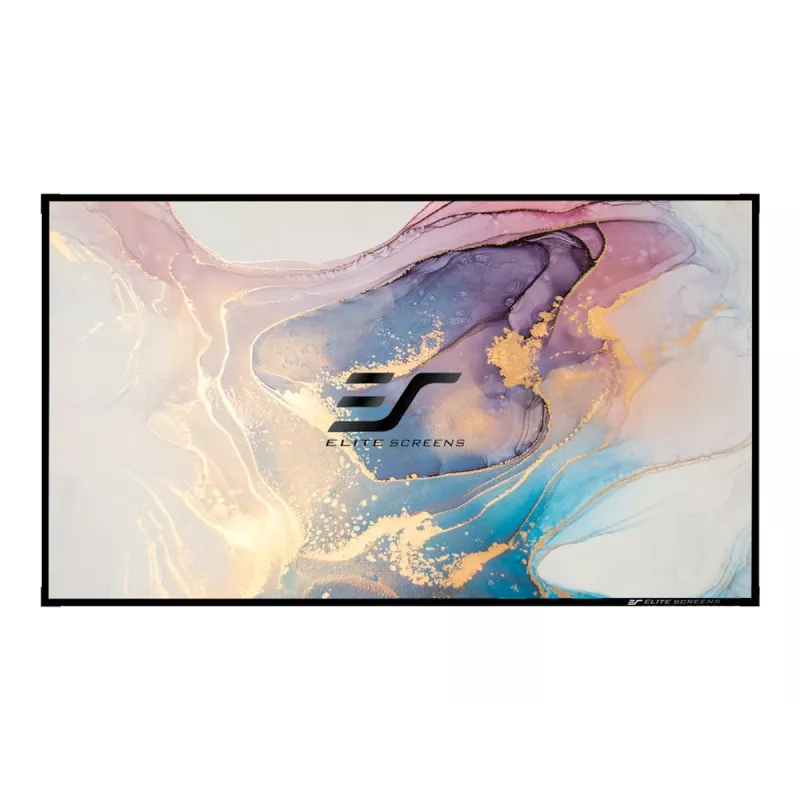

Projection Screen Elite Screens Aeon CineGrey 3D 2.54 m (100 inch)

The Elite Screens Aeon CineGrey 3D is a fixed-frame projection screen with a 2.54 m (100") diagonal and a native 16:9 aspect ratio. The viewable image area measures 2.22 m in width and 124.9 cm in height. Featuring Elite’s EDGE FREE® design and a sleek white frame, this model uses a grey high-gain CineGrey3D surface to improve contrast and color accuracy for HDR and 3D content. The screen ships with a lightweight split aluminum frame that stretches the material to a tight, flat surface and includes the option of ultra-thin velvet tape to refine the visible perimeter.

Advantages

The Aeon frame uses a lightweight aluminum split-frame construction that is quick to assemble and minimizes the frame’s visible footprint, creating a look similar to a large flat-panel display. EDGE FREE® technology provides an uninterrupted viewing border while the CineGrey3D material enhances contrast in controlled lighting. Wall-mount brackets slide for proper centering, and optional accessories such as an LED backlight kit and splice brackets allow configurable installation for larger displays.

Suitable for

• Home theater rooms with controllable ambient light
• 3D movie viewing and high-contrast video content
• Installations where a flat, TV-like appearance is desired
• Modular large-format displays using multiple frames

Key specifications

• Model: Elite Screens Aeon CineGrey 3D 100" (AR100WH2)
• Diagonal: 2.54 m (100")
• Aspect ratio: 16:9 (native)
• Viewable area (W x H): 221.8 cm x 124.9 cm
• Material: CineGrey3D (high gain, grey surface)
• Frame: Lightweight split aluminum, white
• Weight: 9.7 kg
• Optional accessories: LED backlight kit, splice bracket kit, velvet tape trim
• EAN: 848448004798

How to use

Assemble the split-frame sections and stretch the CineGrey3D material over the frame until the surface is tensioned and flat. Use the sliding wall-mount brackets to position and center the assembled screen on the installation surface. If desired, apply the ultra-thin velvet tape around the visible frame edge for a finished look or install the optional LED backlight kit behind the frame and connect the remote-controlled power supply according to the kit instructions. For larger displays, use the optional splice bracket kit to join multiple Aeon frames together before final mounting.

Recommendations

Use the CineGrey3D surface in environments with controlled ambient light to get improved contrast and color fidelity; for bright rooms, consider a dedicated projector or screen material rated for higher ambient light rejection.
