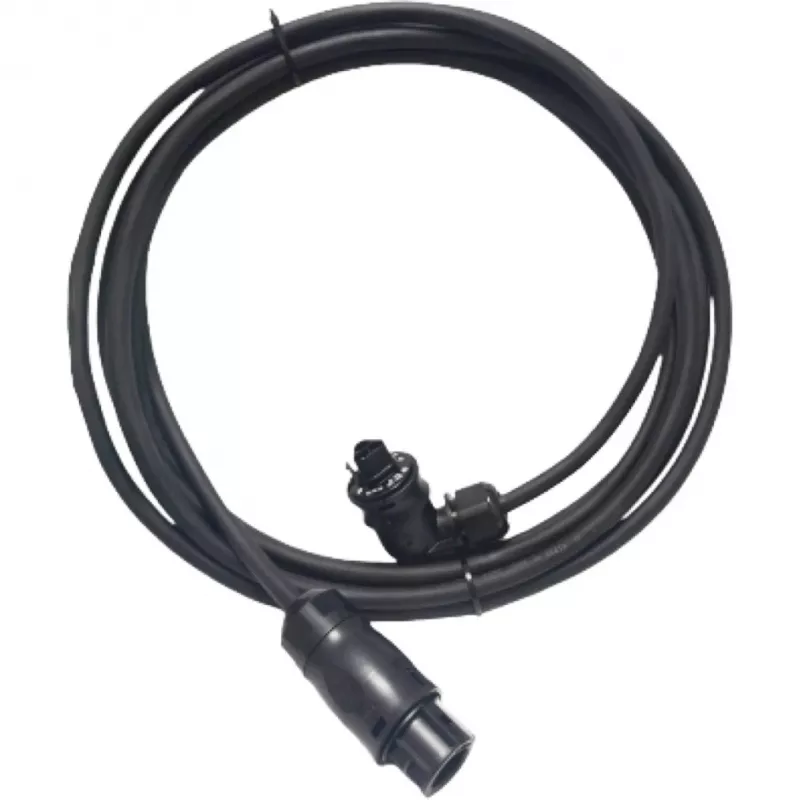

PRIWATT Wieland Cable 10 Meter Black (0% VAT, Betteri Socket > Wieland Plug)

The PRIWATT Wieland Cable 10 Meter is a high-quality AC connection cable designed for balcony power plants and micro-inverter systems. It features a Betteri BC01 socket (female) on one end and a Wieland RST20i3 plug (male) on the other, ensuring a secure and weatherproof connection. With a robust H07RN-F rubber hose sheath, this cable is UV-resistant and suitable for outdoor use in temperatures ranging from -30°C to +60°C.

Advantages

This cable offers a reliable and safe connection for solar energy systems. The 10-meter length provides flexibility in installation, while the IP68-rated connectors guarantee protection against dust and water ingress. The 3x1.5 mm² conductor cross-section supports up to 16A current, making it ideal for standard balcony power plant setups.

Suitable for

• Balcony power plants (plug-in solar devices)
• Micro-inverter systems
• Connecting solar panels to household outlets via Wieland interface

Key specifications

• Cable Type: AC Connection Cable
• Cable Length: 10 m
• Colour: Black
• Connector 1: Betteri BC01 Socket (Female)

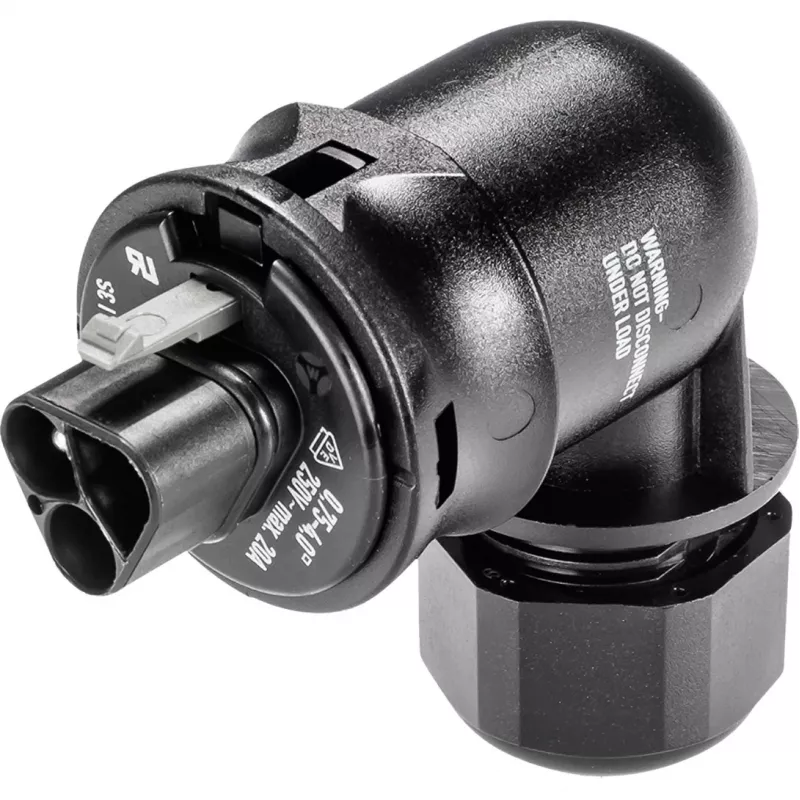

• Connector 2: Wieland RST20i3 Plug (Male)
• Conductor Cross-Section: 3 x 1.5 mm²
• Number of Conductors: 3 (Phase, Neutral, Ground)
• Cable Sheath Material: H07RN-F (Rubber Hose Line)
• Rated Voltage: 250 V AC
• Max. Current Capacity: 16 A
• Protection Class (Connectors): IP68
• UV Resistance: Yes
• Temperature Range: -30°C to +60°C
• Certification: CE

Recommendations

For optimal performance, ensure that the cable is properly routed and protected from mechanical damage. This cable is specifically designed for use with Betteri and Wieland compatible devices. Always verify compatibility with your equipment before installation.
