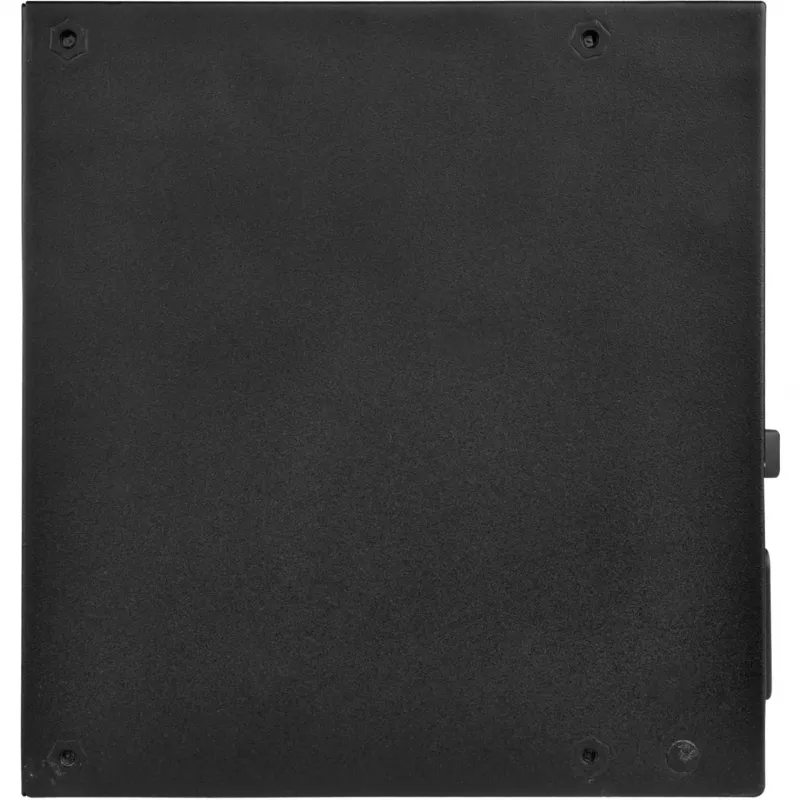

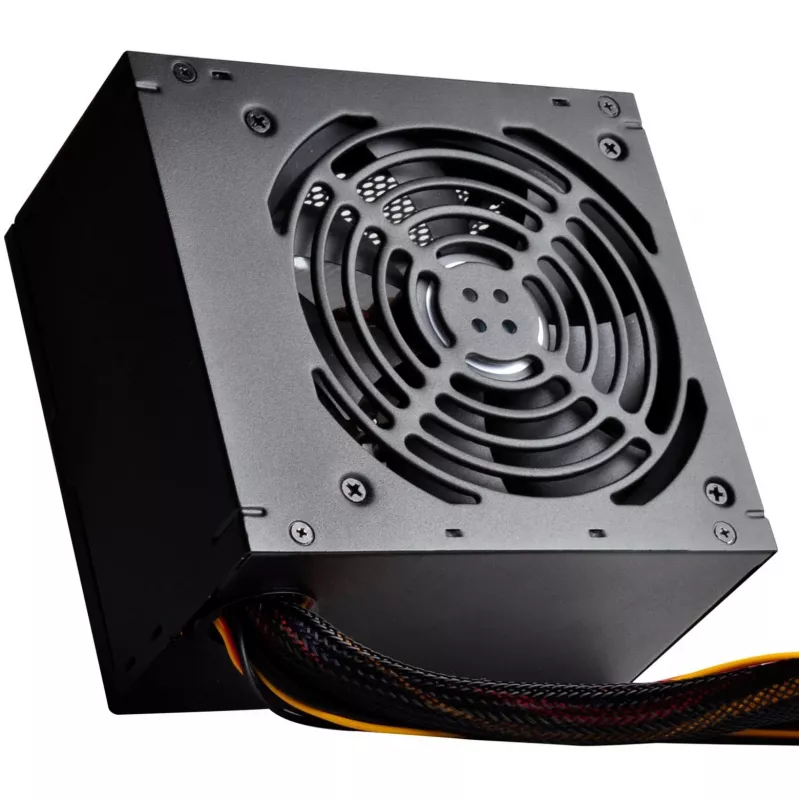

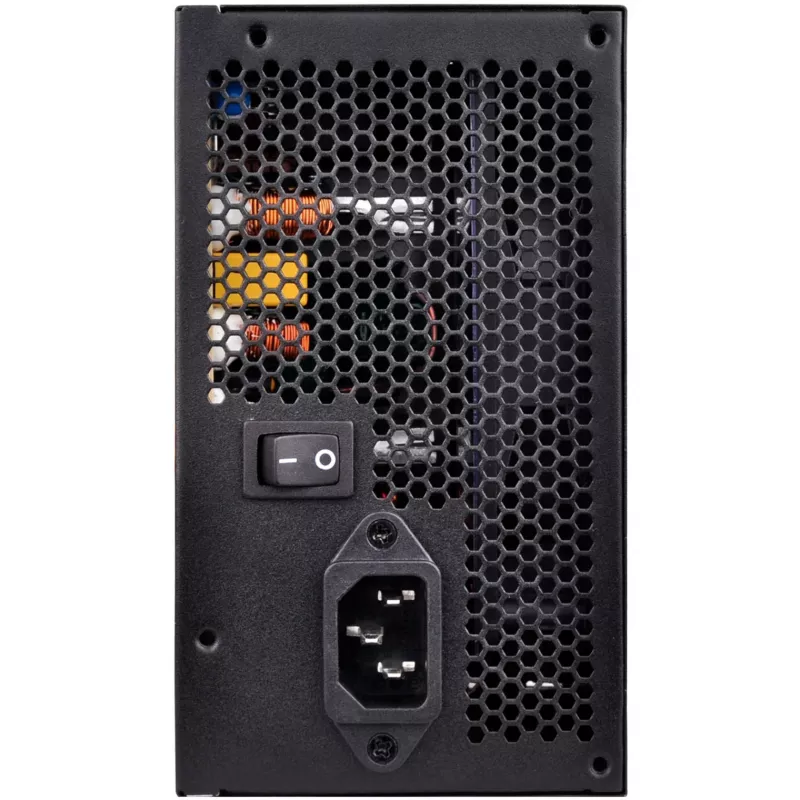

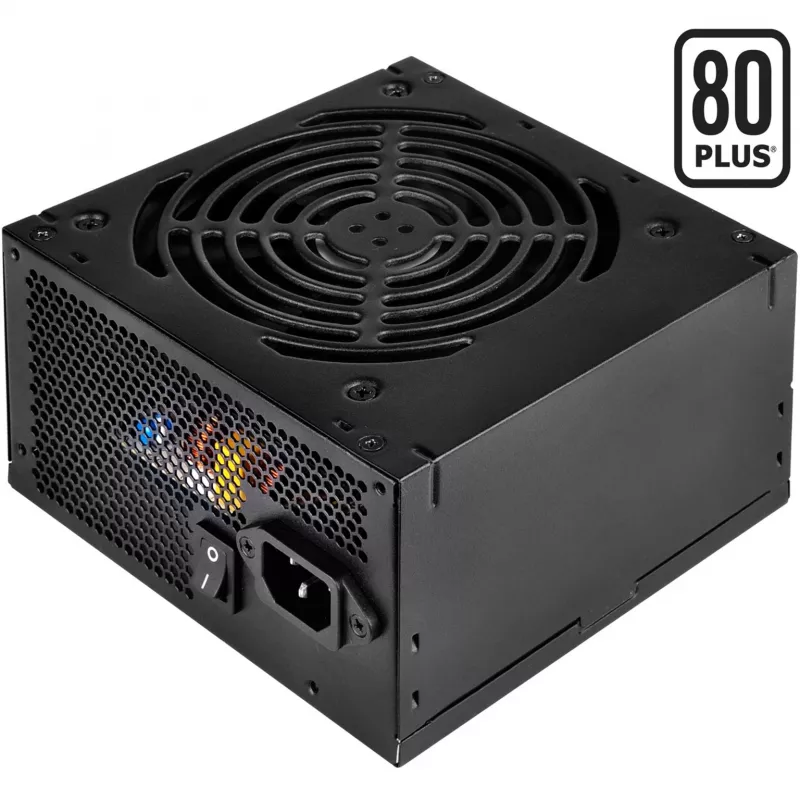

Power supply SILVERSTONE ST50F-ES230 500 W, 24-pin ATX, non-modular, 120 mm fan, aluminium

The SILVERSTONE ST50F-ES230 is a 500 W ATX power supply from the Strider Essential series, designed for budget-conscious desktop builds that require continuous, stable power. It features non-modular cabling with a 24-pin ATX motherboard connector, a 120 mm cooling fan and an aluminium-coloured housing. The unit is specified to operate on 207–253 V AC at 47–63 Hz, deliver up to 500 W total power with an efficiency around 85% at nominal voltage, produce approximately 18 dB of noise during operation and has an MTBF of 100,000 hours. The compact dimensions (150 × 140 × 86 mm) and 1.7 kg weight make it suitable for standard ATX enclosures where a reliable, space-efficient PSU is required.

Advantages

The ST50F-ES230 provides a balance of continuous 500 W output and energy efficiency, achieving up to 85% efficiency under 230 V and maintaining greater than 80% efficiency across a wide load range. A single powerful +12V rail design supports stable power delivery for modern components, while the included 120 mm fan operates quietly at about 18 dB. The active PFC circuitry and multiple protection mechanisms contribute to stable operation, and the compact form factor allows installation in many standard desktop cases. The unit is built to withstand operating temperatures up to 40 °C for continuous use.

Suitable for

• Home and office desktop PCs requiring reliable 24/7 power delivery
• Budget and mid-range gaming systems using single or multi-GPU configurations with provided PCI‑E connectors
• Compact ATX builds where space-efficient PSU dimensions are needed
• Systems that prioritise low noise operation and consistent voltage on the +12V rail

Key specifications

• Total power: 500 W continuous output
• Efficiency: up to 85% (around 80%+ across 20–100% load)
• Motherboard connector: 24-pin ATX
• Fan: 120 mm cooling fan, approximately 18 dB noise level
• Operating input: 207–253 V AC, 47–63 Hz
• Operating temperature support: up to 40 °C for continuous use
• Weight and dimensions: 1.7 kg; 150 × 140 × 86 mm
• Housing colour: aluminium
• Single +12V rail design providing stable current delivery

How to use

Install the SILVERSTONE ST50F-ES230 into a compatible ATX case following standard safety procedures: power down and unplug the system before installation, mount the PSU securely to the case with the fan oriented for optimal airflow, connect the 24-pin ATX cable to the motherboard, and attach the required PCI‑E and peripheral connectors to graphics cards and drives. Ensure input voltage is within the specified 207–253 V AC range and that cables are routed to avoid obstructing airflow. After connection, power on the system and verify stable boot and component operation. Refer to your case and component manuals for any model-specific installation notes.

Recommendations

For reliable long-term operation, place the PSU in a case with sufficient airflow, avoid blocking the 120 mm fan, and keep ambient temperature below 40 °C. Use the provided PCI‑E connectors for supported GPUs and ensure system power draw stays within the 500 W continuous rating to maintain efficiency and longevity. Regularly inspect connections and dust buildup to preserve quiet fan operation and stable performance.
