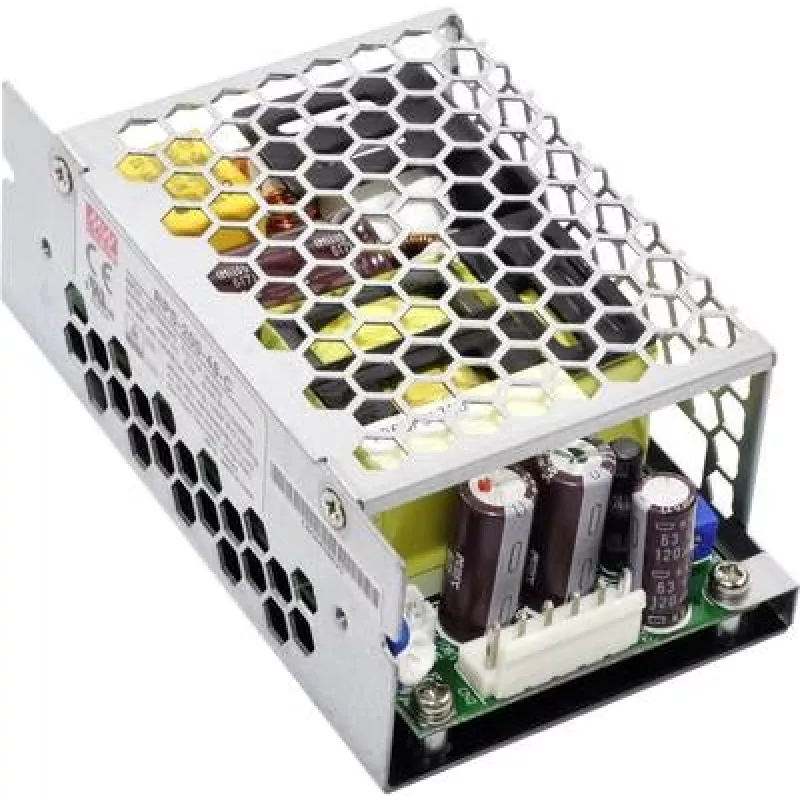

Power supply MEAN WELL RPS-200-12-C 200 W, 12 V output, 80–264 V input

Mean Well RPS-200-12-C is a compact 200 W switching power supply that provides a regulated 12 V DC output with up to 11.7 A current capacity. Designed for industrial and commercial applications, the unit accepts a wide input voltage range of 80–264 V AC and meets medical safety requirements with EN 60601 compliant isolation and 2xMOPP protection. The metal-cased design measures approximately 62 × 103.4 × 40 mm, offering a small footprint for installations where space is limited while still delivering reliable 12 V power for connected systems.

Advantages

The power supply combines a high power density and compact footprint, enabling installation in confined enclosures. Wide-range AC input simplifies deployment across different mains environments without additional adapters. EN 60601 medical safety compliance with dual MOPP isolation enhances protection for equipment in sensitive applications. The unit is RoHS-compliant and built for continuous operation, providing stable voltage regulation and overload protection for connected loads.

Suitable for

• LED lighting systems and signage requiring stable 12 V DC
• Control cabinets and automation equipment
• Medical devices and diagnostic equipment with EN 60601 requirements
• Industrial electronics and embedded systems

Key specifications

• Output voltage: 12 V DC
• Output current: up to 11.7 A
• Rated power: 200 W
• Input voltage range: 80–264 V AC
• Safety: EN 60601 compliant isolation with 2xMOPP
• Form factor: compact metal case, approx. 62 × 103.4 × 40 mm
• RoHS compliance

How to use

Mount the power supply in a location with adequate ventilation and secure it using appropriate fasteners for the metal case. Connect the AC mains input within the specified 80–264 V AC range, observing correct grounding practices. Connect the 12 V DC output to the load, ensuring that the total current draw does not exceed the rated 11.7 A. Observe polarity when wiring the DC output and verify connections before powering the unit. Allow for a brief stabilization time after initial power-up for voltage regulation to reach nominal value.

Recommendations

Provide at least the manufacturer-recommended clearance around the unit to ensure heat dissipation, avoid exposure to excessive dust or moisture, and use appropriate fusing on the AC input for overcurrent protection. For medical applications, follow applicable installation standards and perform regular maintenance checks on connectors and grounding.
