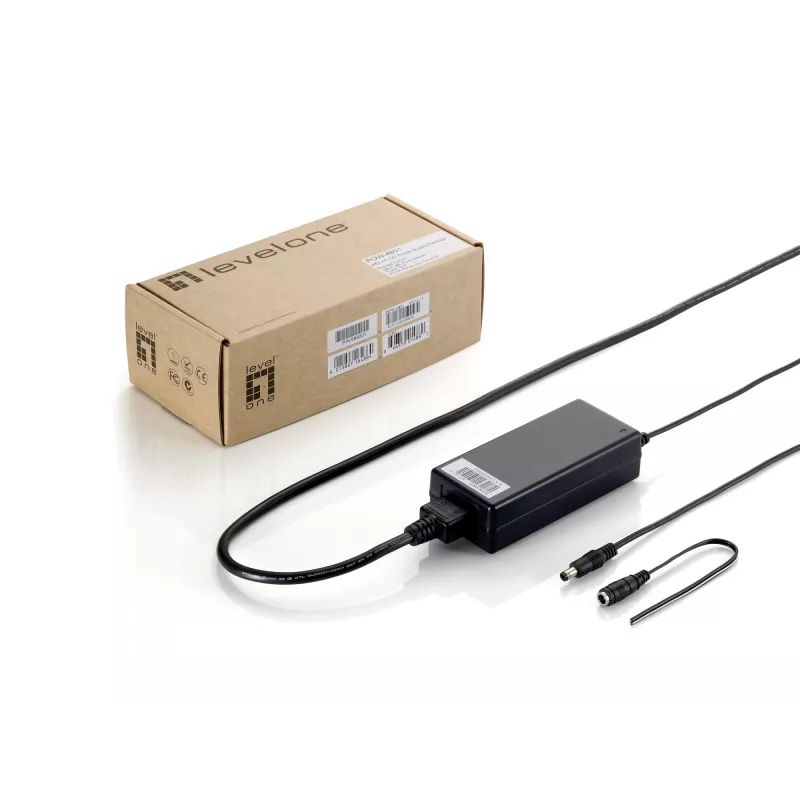

Power Supply LevelOne POW-4801 48V DC 64W

LevelOne POW-4801 is a compact indoor power supply that delivers 48V DC at up to 64W for network equipment and other devices that require a 48V DC input. The package includes a 48V AC power adapter and a DC power jack converter that allows connection to devices with a DC terminal block when only an AC outlet is available. The unit is UL, cUL, TUV and CE marked and has a rated input range of 110–240V AC and an MTBF of approximately 25,000 hours.

Advantages

The POW-4801 combines an AC-to-DC adapter and a DC jack converter into a single solution, simplifying connection of legacy or terminal-block devices to standard AC mains. It supplies up to 64.8W of output power and includes built-in protections for overvoltage, overcurrent and short circuit, protecting both the supply and connected equipment. The compact black casing and international input range make it suitable for diverse indoor installation environments.

Suitable for

• Network switches and PoE injectors requiring 48V DC input
• Devices with DC terminal block connectors where only AC mains are available
• Indoor installations in offices, server rooms or cabinets

Key specifications

• Output voltage: 48V DC
• Maximum output power: 64W (64.8W rating in manufacturer text)
• Input voltage: 110–240V AC
• Certifications: UL 60950-1, cUL 60950-1, TUV EN 60950-1, CE
• Colour: Black
• MTBF: 25,000 hours

How to use

Connect the AC adapter to a standard 110–240V AC outlet, attach the DC jack converter to the adapter output, then connect the converter’s leads to the device’s DC terminal block following the device polarity markings. Ensure all connections are secure before powering on. Verify the target device accepts 48V DC and that the adapter’s power rating meets the device’s requirement.

Recommendations

Use the power supply indoors in a dry, ventilated location and avoid exposure to moisture or excessive heat. Do not attempt to modify the adapter or converter. If the device or supply shows signs of damage, discontinue use and replace with an equivalent certified unit.
