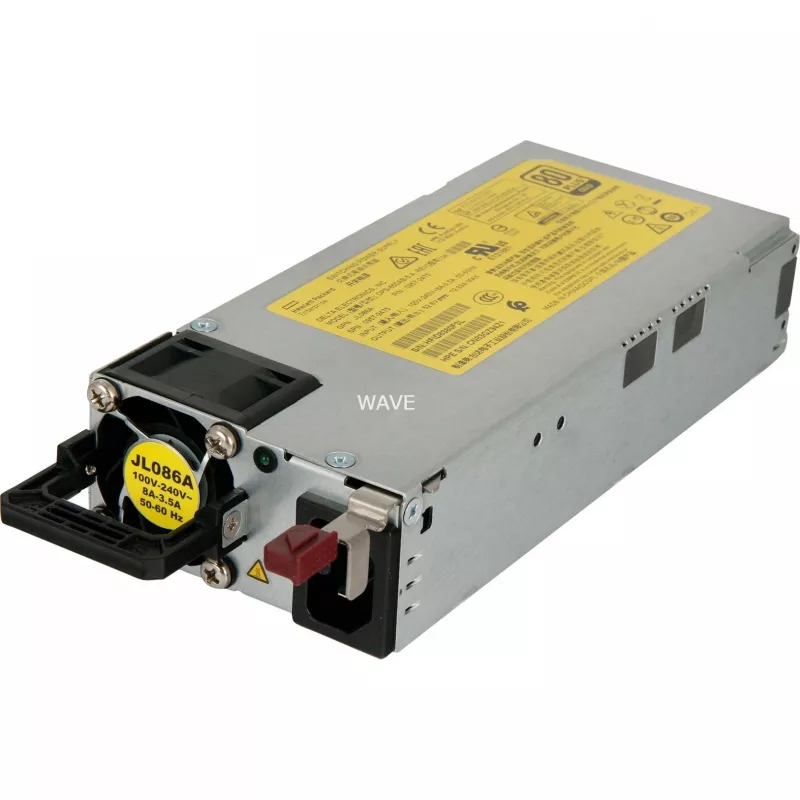

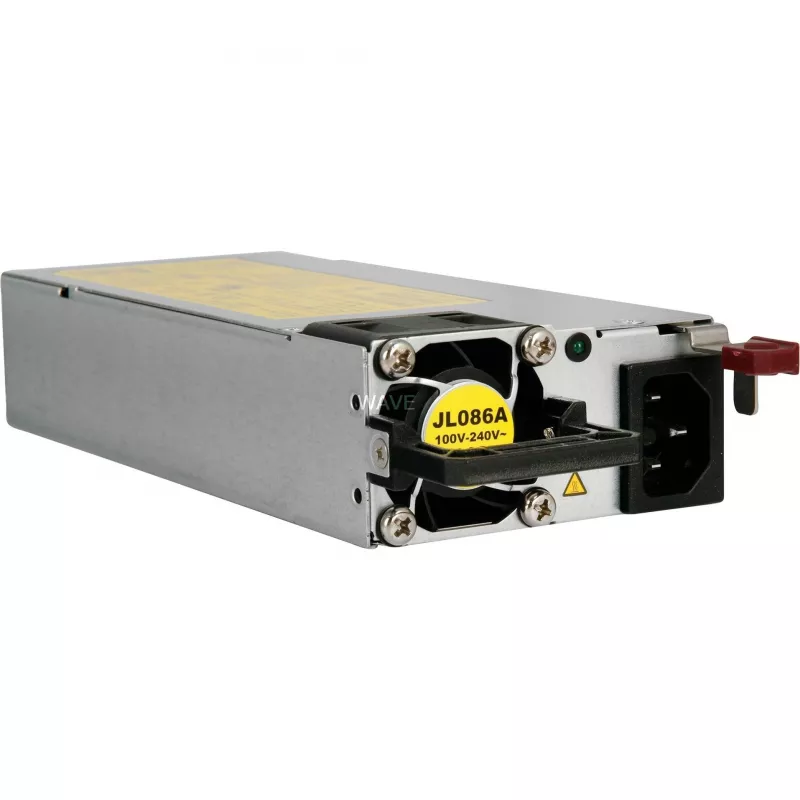

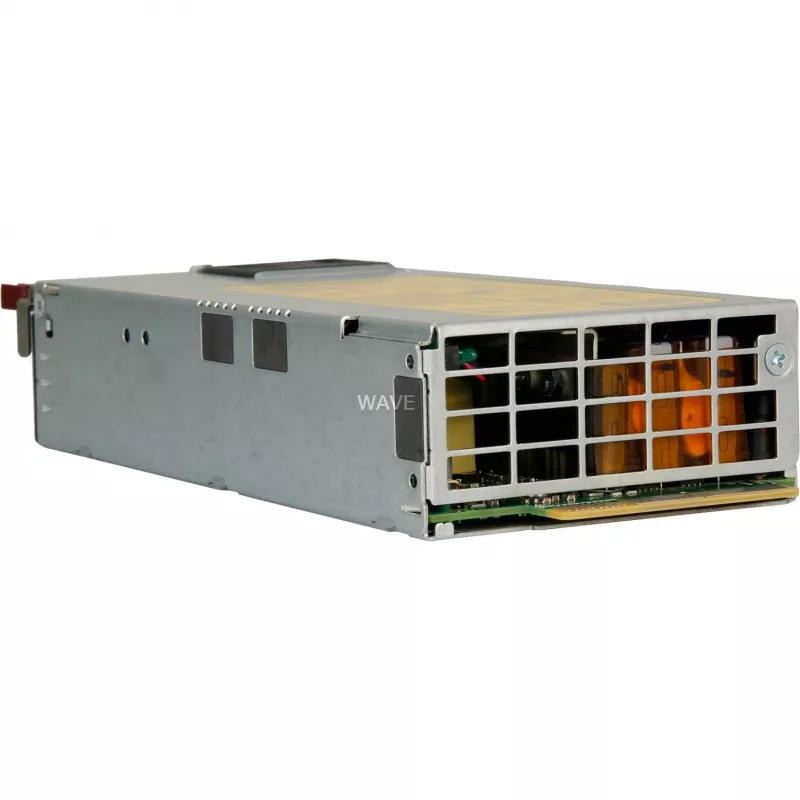

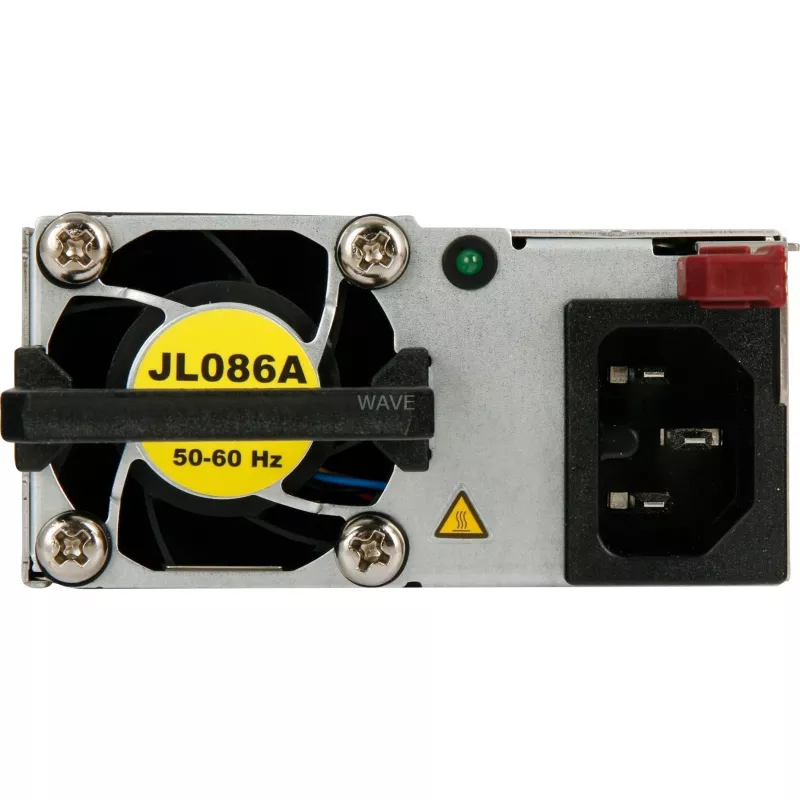

Power supply HPE Aruba Networking JL086A 680 W

The HPE Aruba Networking JL086A is a metallic 680 W power supply module intended for selected Aruba switches such as the Aruba 3810. It converts 100–240 VAC mains input to 54 VDC output and features a compact metal housing (83.1 mm × 225.6 mm × 40.1 mm) for straightforward integration into compatible chassis.

Advantages

The power supply delivers up to 680 W of continuous output power and supports a wide AC input range (100–240 VAC), enabling use in varied electrical environments. Its metal enclosure provides mechanical durability and EMI shielding while the lightweight design (0.83 kg) simplifies handling and installation.

Suitable for

• Replacing or upgrading power modules in Aruba 3810 and other compatible Aruba switches
• Network installations requiring a 54 VDC power feed from 100–240 VAC mains
• Environments where a compact, metal-bodied PSU is preferred for durability

Key specifications

• Total power: 680 W
• Input voltage: 100–240 VAC
• Output voltage: 54 VDC
• Dimensions (W × D × H): 83.1 mm × 225.6 mm × 40.1 mm
• Weight: 0.83 kg
• Colour: Metallic
• Manufacturer part number (MPN): JL086A#ABB

How to use

Before installation, verify compatibility with your Aruba switch model and power requirements. Power down the switch following the vendor’s shutdown procedure. Remove the existing module (if present) and insert the JL086A power supply into the designated module slot until it seats securely. Reconnect mains power and power on the switch, then confirm the switch recognizes the new module and reports the expected output power in its management interface.

Recommendations

Install and service the power supply in accordance with HPE Aruba safety and installation guidelines. Use appropriate electrostatic discharge (ESD) precautions, ensure adequate ventilation around the unit, and operate within the specified AC input range. Replace only with manufacturer-approved modules to maintain warranty and system reliability.
