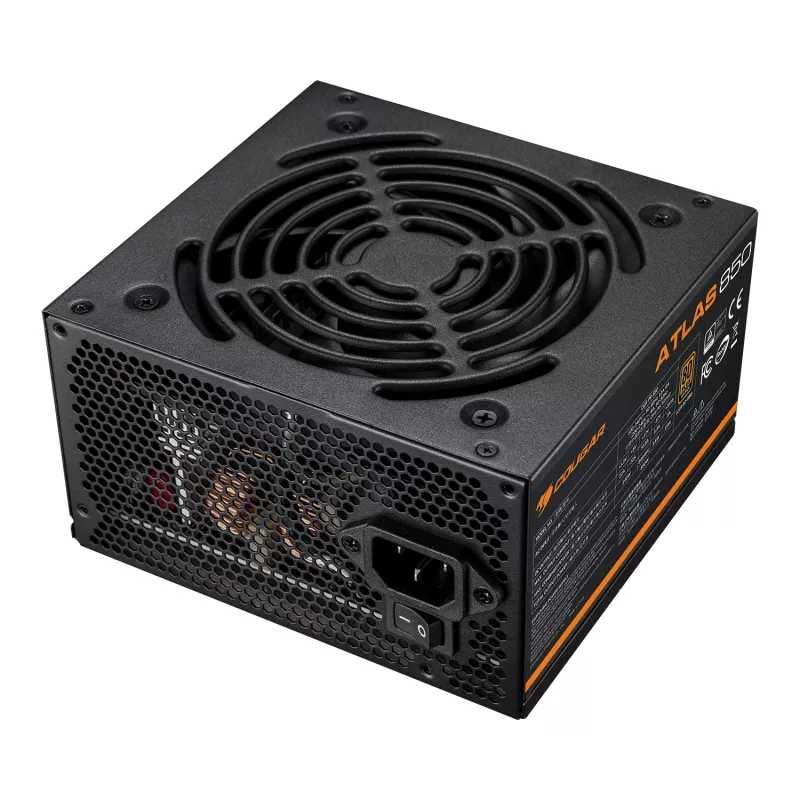

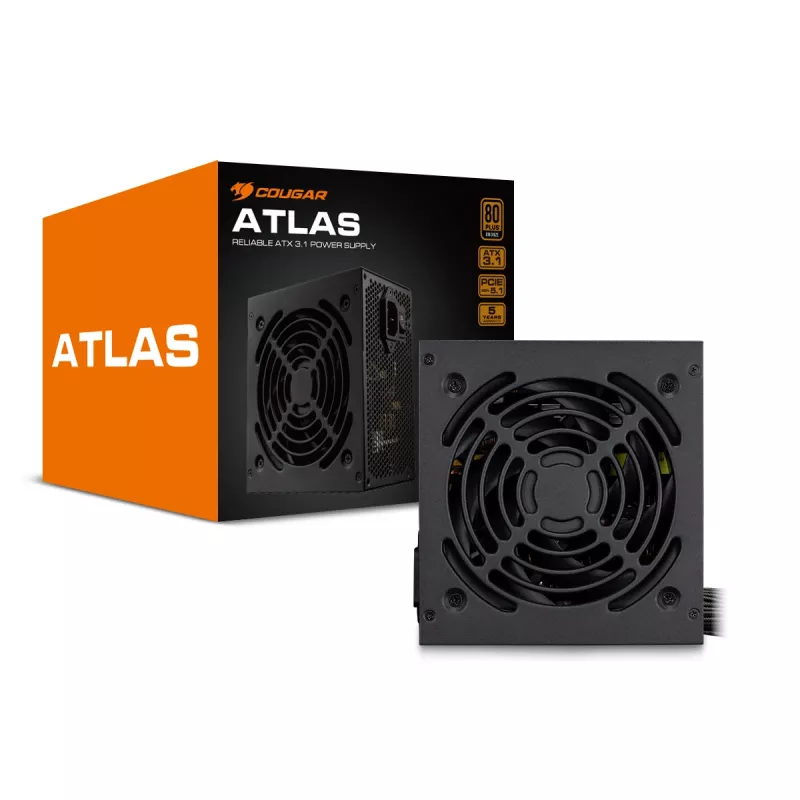

Power supply Cougar ATLAS 650W ATX3.1 80 PLUS Bronze, 24-pin ATX, 120 mm fan, black

RELIABLE ATX 3.1 POWER SUPPLY
The COUGAR ATLAS series power supply is 80 PLUS Bronze certified. It features a native PCIe 12V-2X6 connector, meeting Intel ATX 3.1 and PCIe 5.1 standards. With a single 12+4-pin cable, it efficiently supports next-gen GPUs. Ensuring exceptional power delivery, efficiency, silent operation, and durability.

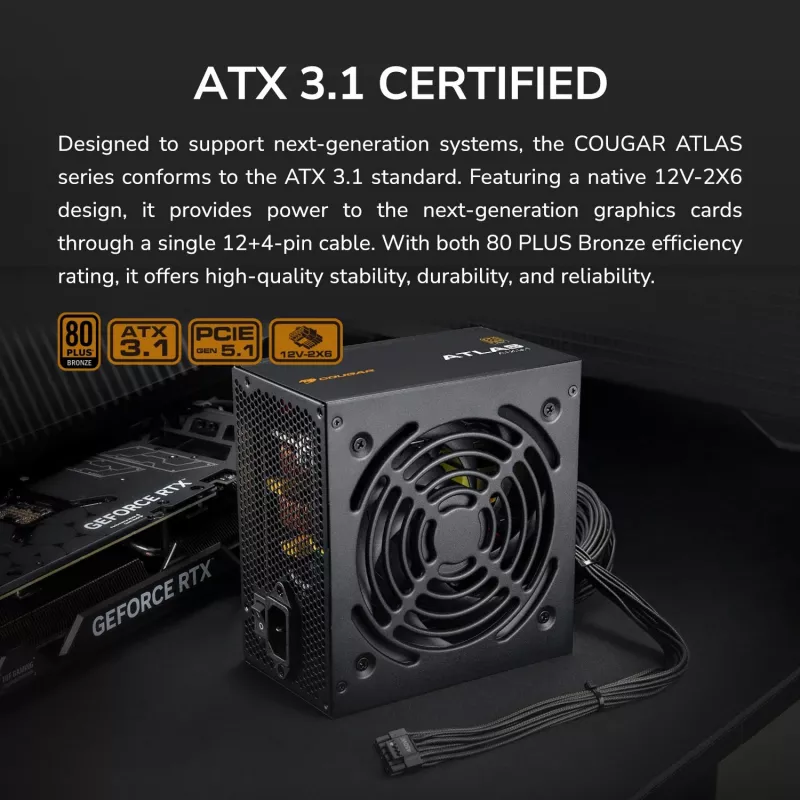

ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR ATLAS series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Bronze efficiency rating, it offers high-quality stability, durability, and reliability.

The COUGAR ATLAS series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100μs.

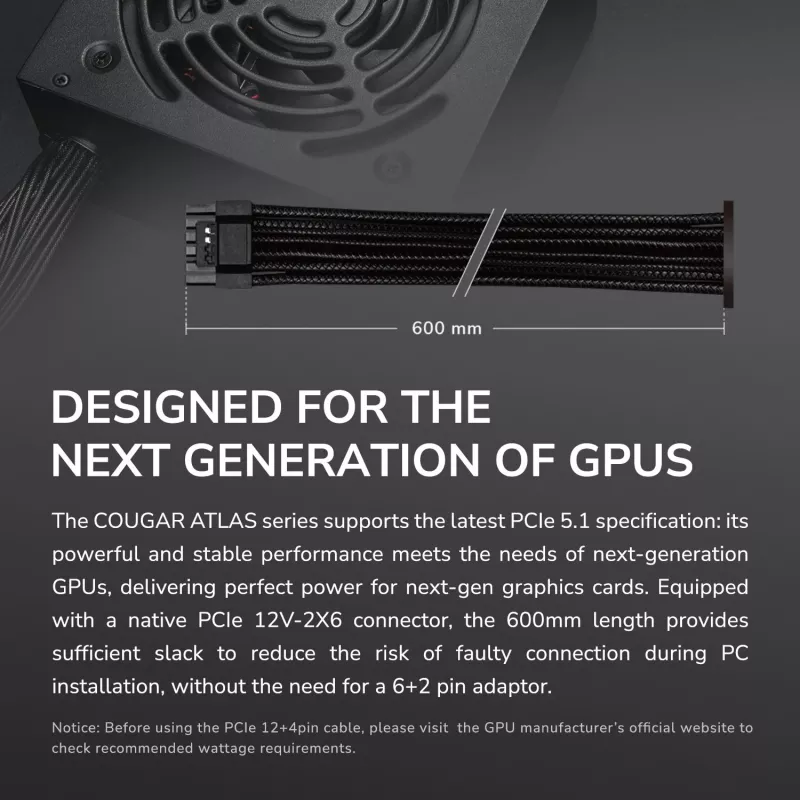

Designed for the Next Generation of GPUs
The COUGAR ATLAS series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a native PCIe 12V-2X6 connector, the 600mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.
Notice: Before using the PCIe 12+4pin cable, please visit the GPU manufacturer’s official website to check recommended wattage requirements.​

High Performance

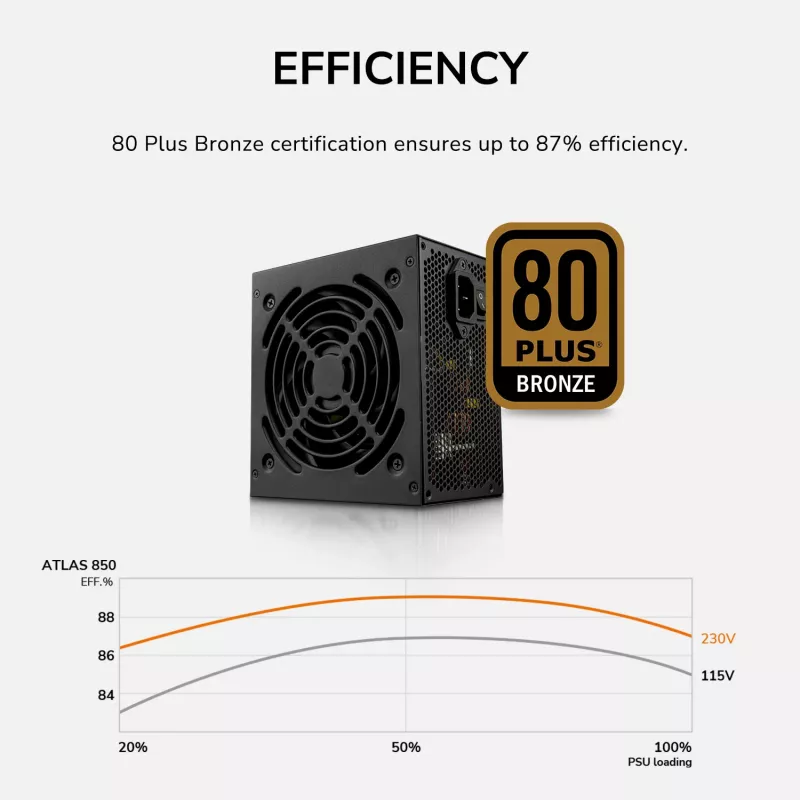

Efficiency
80 Plus Bronze certification ensures up to 87% efficiency.

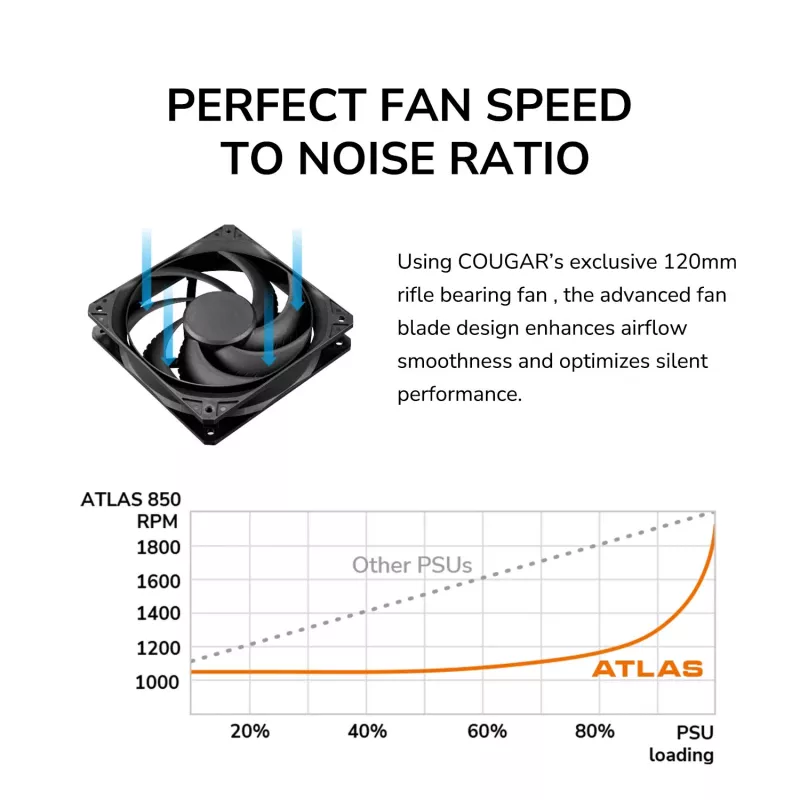

Perfect Fan Speed to Noise Ratio

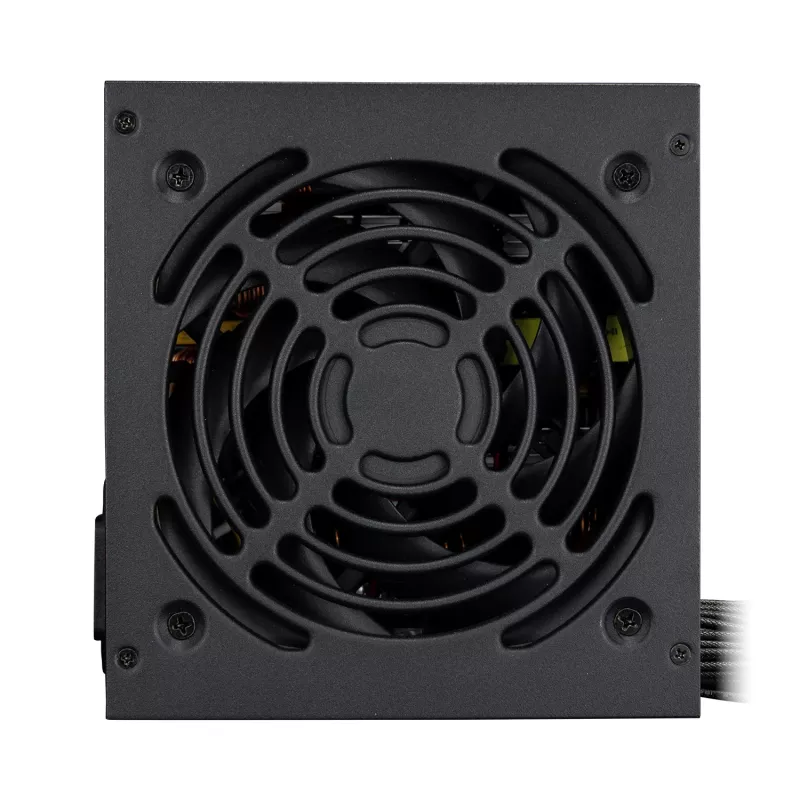

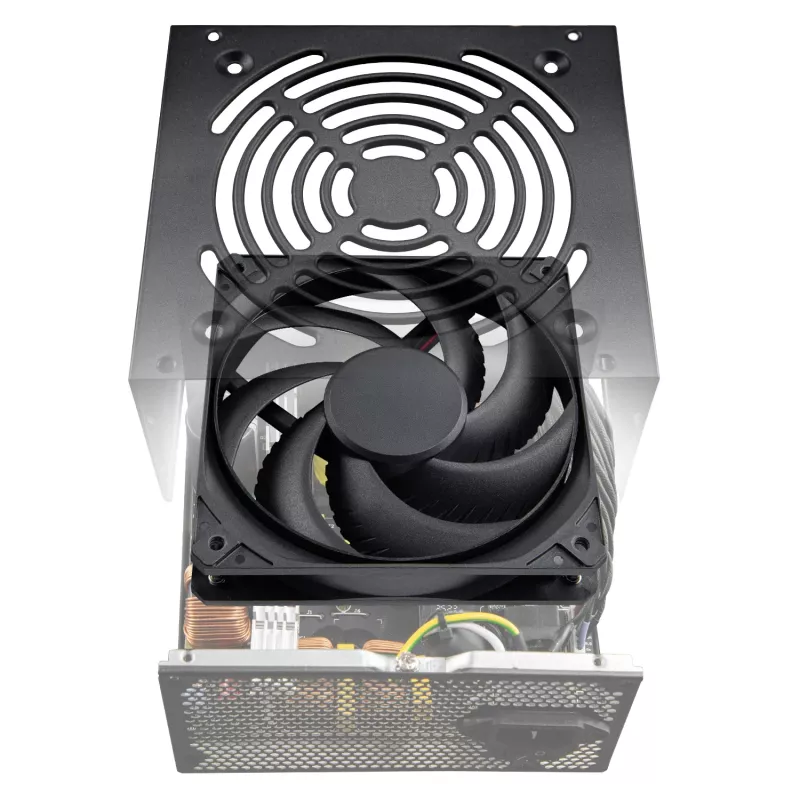

Using COUGAR’s exclusive 120mm rifle bearing fan , the advanced fan blade design enhances airflow smoothness and optimizes silent performance.

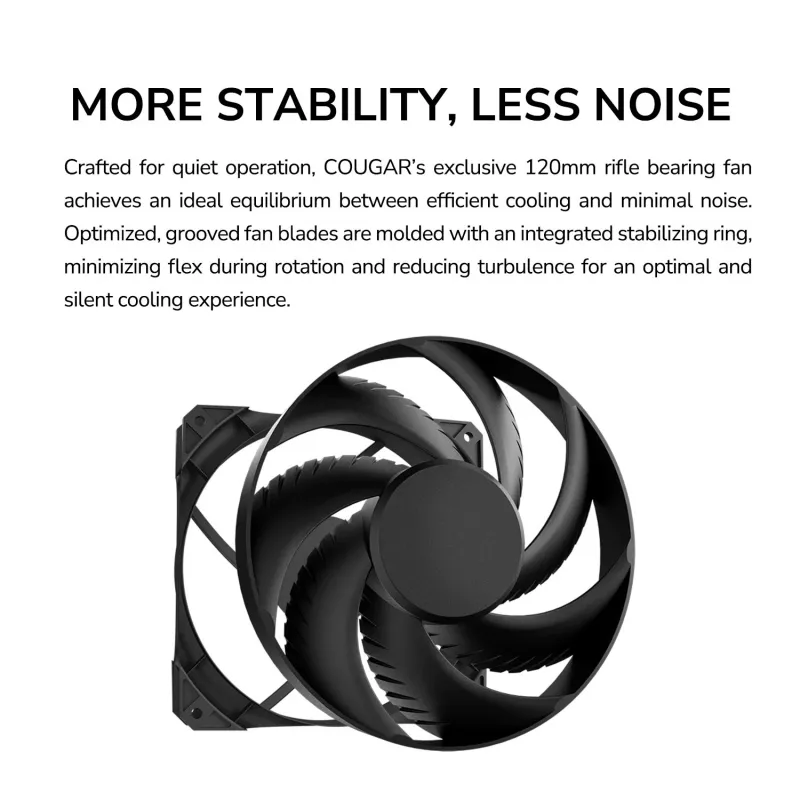

More Stability, Less Noise
Crafted for quiet operation, COUGAR’s exclusive 120mm rifle bearing fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.

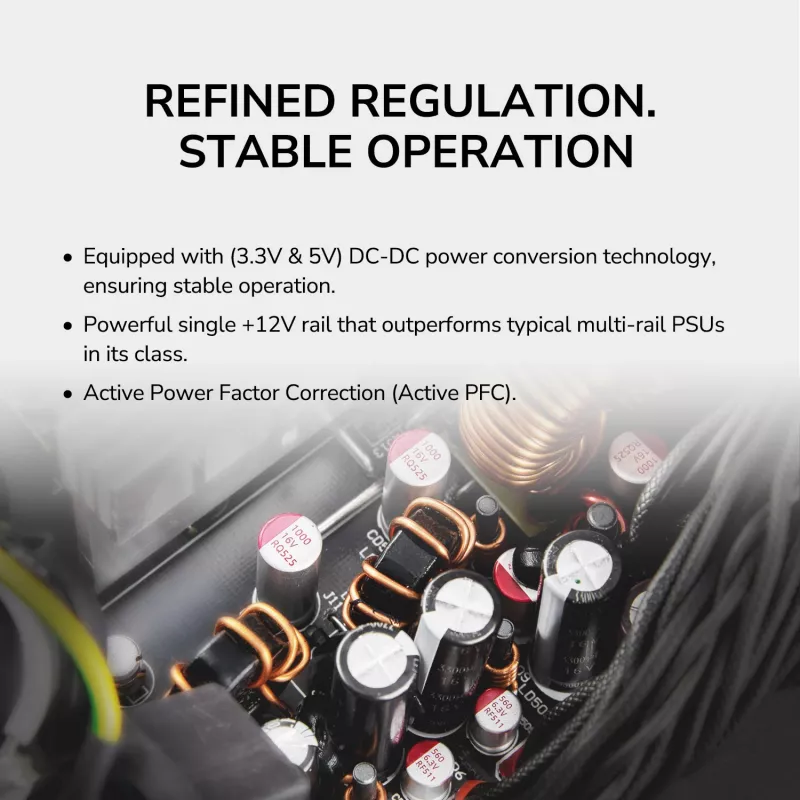

Refined Regulation. Stable Operation
- Equipped with (3.3V & 5V) DC-DC power conversion technology, ensuring stable operation.
- Powerful single +12V rail that outperforms typical multi-rail PSUs in its class.
- Active Power Factor Correction (Active PFC).

Ultra Durability

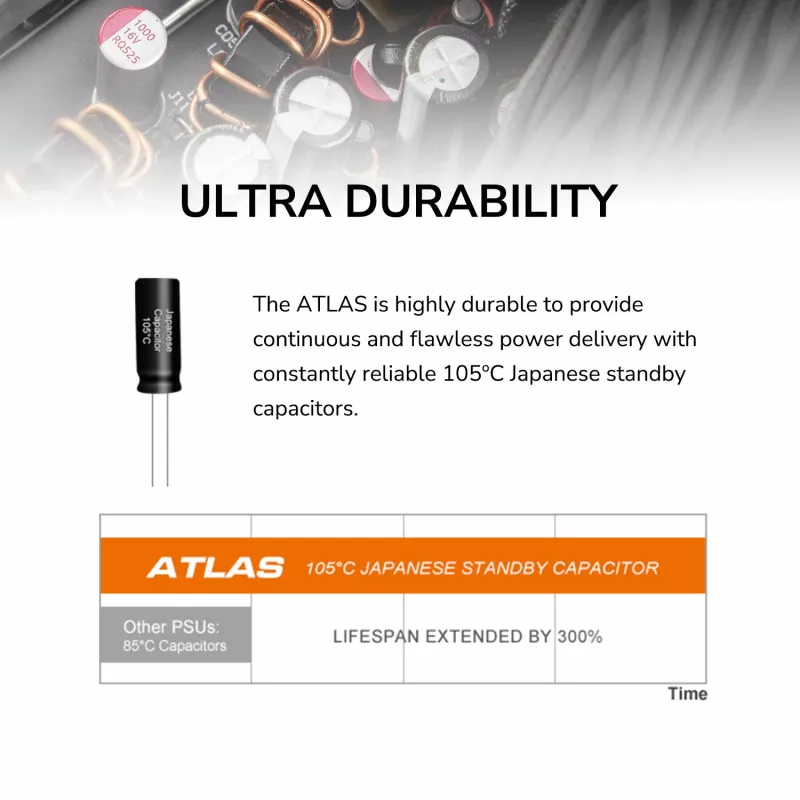

The ATLAS is highly durable to provide continuous and flawless power delivery with constantly reliable 105ºC Japanese standby capacitors.

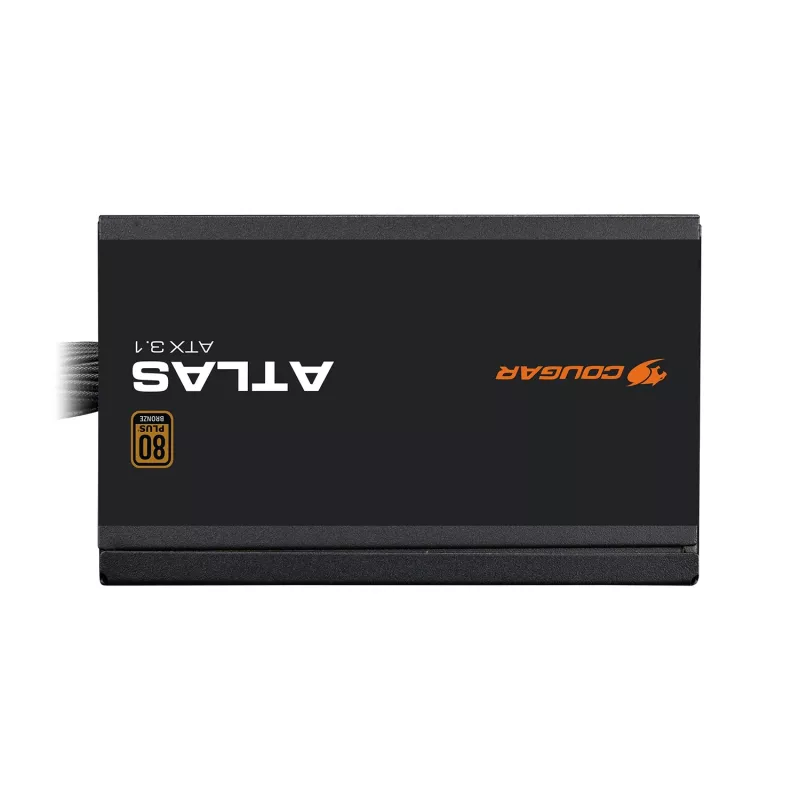

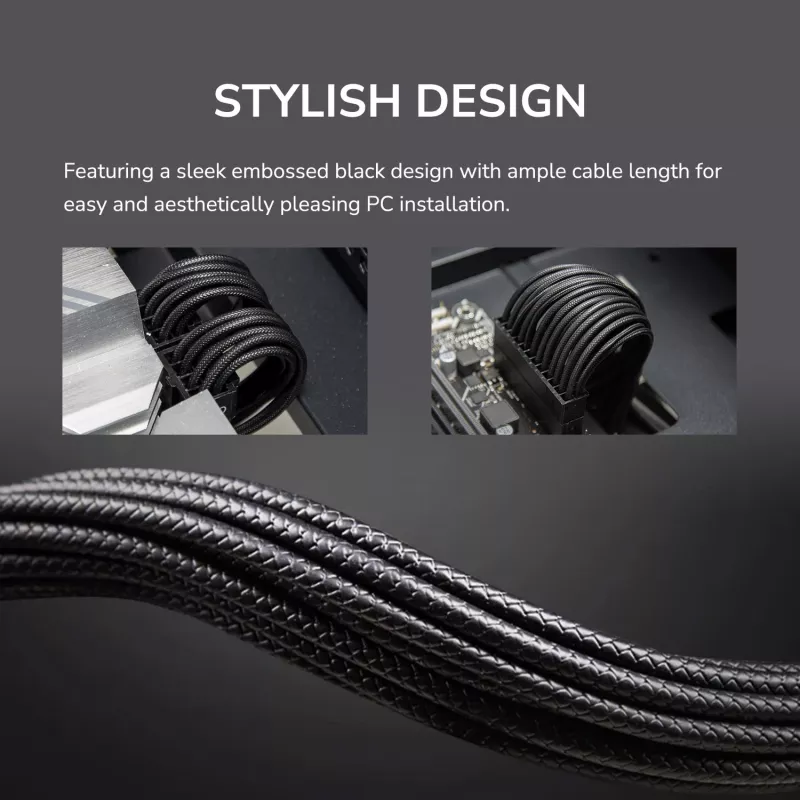

Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.

Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
80 PLUS Bronze Certified
Up to 87% efficiency power conversion.
Powerful Single +12V Rail
Powerful single +12V rail that outperforms typical multi-rail
PSUs in its class .
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms.
Full Protections with SCP, OCP, OVP, UVP, OPP, OTP
Active Power Factor Correction (Active PFC)
PF value up to 99% for clean and reliable power.

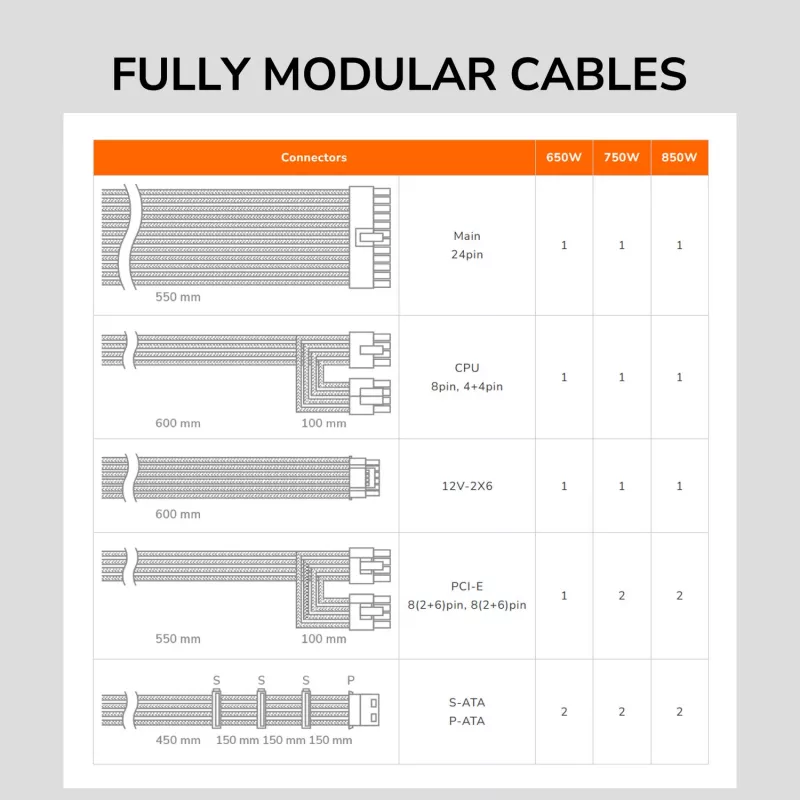

COUGAR Power Supply ATLAS 650W ATX3.1 / 80 Plus Bronze. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE, FCC, RoHS

How to use

Install the PSU into a compatible ATX chassis, connect the 24‑pin ATX to the motherboard and attach the PCIe 12+4 pin cable to the graphics card per the GPU manufacturer’s recommended wattage. Connect SATA and peripheral cables to storage and devices as required. Ensure AC mains are within 100–240 V and secure all connectors before powering on. Follow your case and motherboard manual for proper mounting and cable routing to maintain airflow.

Recommendations

Before using the PCIe 12+4 pin cable, verify the GPU manufacturer’s recommended power requirements on the official website. Allow sufficient cable slack when routing the native 600 mm PCIe cable to avoid strain on connectors.
