Power supply Cisco 240W AC P/S LITE

Power supply Cisco 240W AC P/S LITE
Power supply Cisco 240W AC P/S LITE
Power supply Cisco 240W AC P/S LITE
Power supply Cisco 240W AC P/S LITE
R26,768

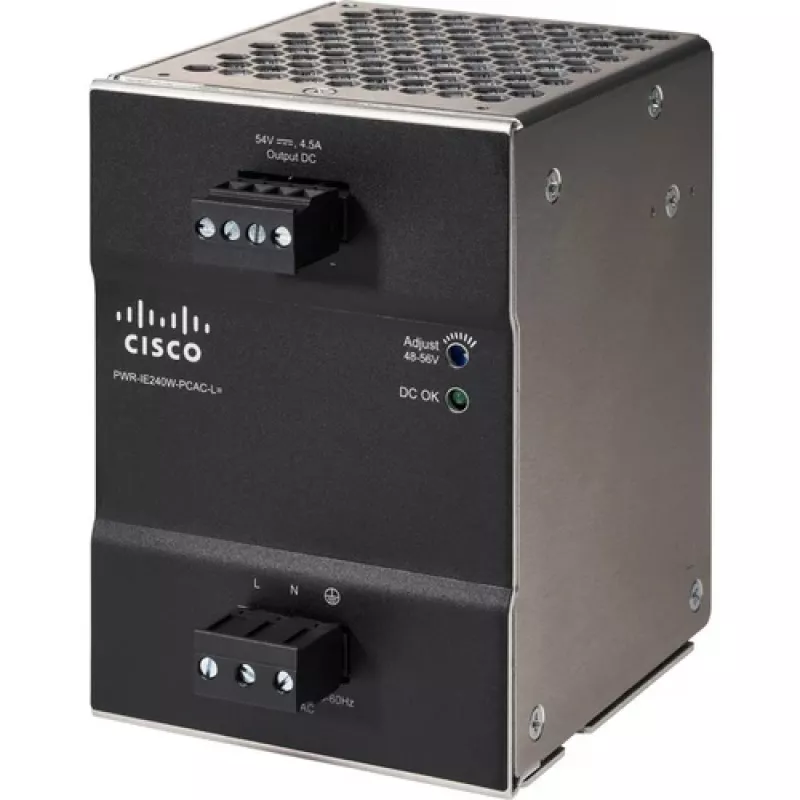

The Cisco 240W AC P/S LITE is a compact industrial power supply that provides a total output of 240W for Cisco industrial Ethernet switches, routers and computing devices. It accepts an AC input voltage range of 90–264 V at 50/60 Hz, features a compact enclosure (85 mm W × 121 mm D × 124.1 mm H), an... Read More
Stock 12 Code 129231 Brand CISCO Model PWR-IE240W-PCAC-L= Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Cisco 240W AC P/S LITE is a compact industrial power supply that provides a total output of 240W for Cisco industrial Ethernet switches, routers and computing devices. It accepts an AC input voltage range of 90–264 V at 50/60 Hz, features a compact enclosure (85 mm W × 121 mm D × 124.1 mm H), an IP20 safety rating and is certified to EN 60950-1 and UL 62368-1. With an MTBF of 1,058,750 hours, it is designed for reliable continuous operation in industrial installations.

Advantages

The unit delivers a stable 240W output in a small form factor suitable for din-rail mounting and tight cabinet spaces. Wide AC input range and standard safety certifications simplify integration into existing systems. High MTBF indicates long service life, while available conformal coating options and an operating temperature range used across Cisco industrial supplies support deployment in demanding environments.

Suitable for

  • Powering Cisco industrial Ethernet switches
  • Supplying power to industrial routers and gateways
  • Industrial computing devices and control equipment

Key specifications

  • Output power: 240 W
  • Input voltage: 90–264 V AC, 50/60 Hz
  • Dimensions (W×D×H): 85 × 121 × 124.1 mm
  • Safety rating: IP20
  • Certifications: EN 60950-1, UL 62368-1
  • MTBF: 1,058,750 hours
  • Manufacturer part number (MPN): PWR-IE240W-PCAC-L=
  • EAN: 0889728211512

How to use

Mount the power supply on a compatible DIN rail and connect the AC input to a suitable 90–264 V AC source. Connect the DC output or device-specific power connectors to the target Cisco industrial switch, router or computing device following the equipment wiring diagrams and safety procedures. Ensure proper ventilation around the unit and observe IP20 enclosure limitations when installing in exposed environments.

Recommendations

Install the power supply inside a protective enclosure if it will be exposed to dust or liquids beyond IP20 conditions. Verify compatibility with your Cisco device model and follow Cisco installation guides for PoE-capable systems to ensure correct power budgeting.
Key Highlights
  • Powering Cisco industrial Ethernet switches
  • Supplying power to industrial routers and gateways
  • Industrial computing devices and control equipment
  • Output power: 240 W
  • Input voltage: 90–264 V AC, 50/60 Hz
  • Dimensions (W×D×H): 85 × 121 × 124.1 mm
  • Safety rating: IP20
  • Certifications: EN 60950-1, UL 62368-1
  • MTBF: 1,058,750 hours
  • Manufacturer part number (MPN): PWR-IE240W-PCAC-L=
  • EAN: 0889728211512
Specifications
AC input frequency
50 / 60
AC input voltage
90 - 264
Certification
SIQ Bauart to EN 60950-1 UL/cUL UL 60950-1 / CSA C22.2 No. 60950-1 UL/cUL UL 62368-1 / CSA C22.2 No. 62368-1 CB IEC 60950-1 UL 508 /CSA C22.2 No. 107.1-01 (File No. E315355) CSA C22.2 No. 107.1-01 (File No. 181564) EN 61000-3-2 A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, A CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class A
DC output voltage
54 V
Depth
121 mm
Harmonized System (HS) code
85177900
Height
124.1 mm
Inrush current
35 A
Internal
Yes
Maximum current
3.5 A
Mean time between failures (MTBF)
1058750 h
Operating relative humidity (H-H)
5 - 95
Operating temperature (T-T)
-40 - 80
Product colour
Black
Product type
Power supply
Safety
IP20
Storage temperature (T-T)
-40 - 85
Total power
240 W
Weight
0.96 kg
Width
85 mm
