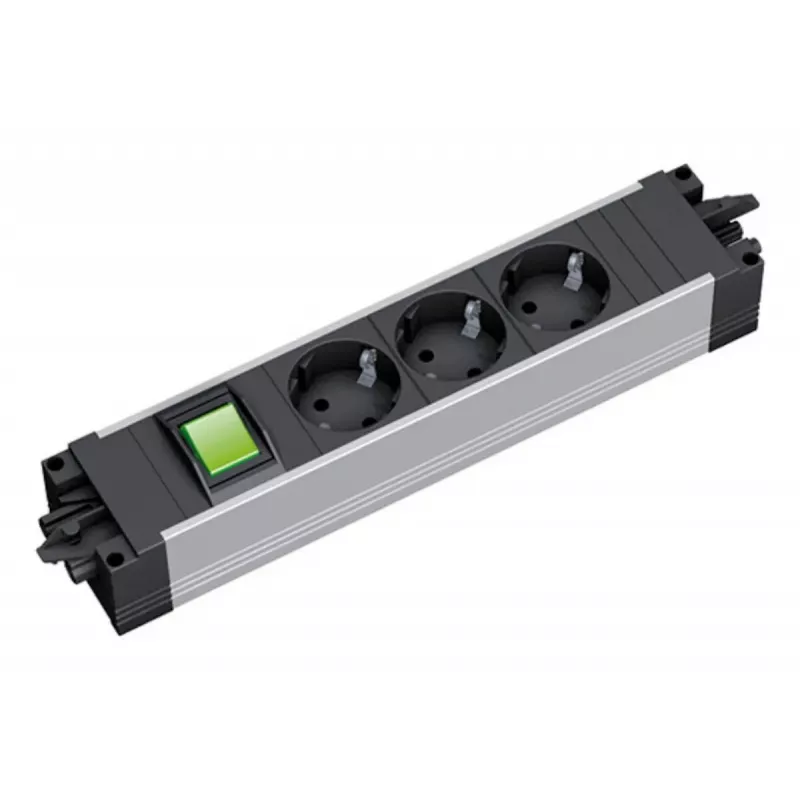

Power strip Bachmann STEP ALU 3x outlets, 1x switch, aluminium housing, 230V 16A, IP20

Bachmann STEP ALU is a compact indoor power strip with an aluminium profile housing, three protective-contact AC outlets and one integrated on/off switch. Designed for standard 230 V mains and a maximum current of 16 A (maximum power 3,680 W), the unit provides a durable and space-saving solution for desktop or under-desk power distribution. The IP20 protection rating makes it suitable for dry indoor environments such as offices, raised floors and partition systems. The device features rotated 35° sockets and Wieland GST18i3 connectors for simple linking and modular installation.

Advantages

The aluminium housing delivers mechanical stability and a slim 52 mm width that suits tight installation spaces. Integrated GST18i3 power connectors enable straightforward daisy-chaining and quick connection to compatible infeed modules. The illuminated switch controls only the sockets, while the compact length of approximately 270 mm allows mounting on T-slot profiles, stands or under tabletops. The product’s modular design supports flexible placement and expansion within office furniture and partition systems.

Suitable for

• Power distribution for office equipment on desks and workstations
• Under-desk or cable-tray installation in commercial interiors
• Integration into raised floor and partition wall systems
• Modular electrification for meeting rooms and flexible workspaces

Key specifications

• Supply voltage: 230 V AC
• Maximum current: 16 A
• Maximum power: 3,680 W
• Number of AC outlets: 3 protective-contact sockets (35° rotated)
• Switch: 1 illuminated on/off switch (switches the sockets)
• Protection rating: IP20 (indoor, dry environments)
• Housing material: aluminium profile
• Colour: anthracite sockets with silver aluminium profile
• Length: approx. 270 mm
• Width: 52 mm
• Connection: Wieland GST18i3 power in/out connector
• Mounting: compatible with T-slot profiles, stand profiles and adapted brackets

How to use

Position the power strip where you need local power distribution, for example under a desk, on a workstation or mounted to a profile using appropriate brackets. Connect the infeed using a compatible GST18i3 cable or module; the unit also allows linking to other STEP modules via device extensions. Plug appliances into the three AC outlets and operate the illuminated switch to control power to the sockets. Ensure total connected load does not exceed 16 A or 3,680 W.

Recommendations

Use the Bachmann STEP ALU in dry, indoor environments only. Verify that mounting brackets and cables are suitable for the intended installation and that the combined load of connected devices remains within the specified limits. For installations in ESD-sensitive areas, use the appropriate ESD-capable mounting accessories. Do not expose the unit to moisture or outdoor conditions.
