Power Outlet Bachmann STEP ALU 1x USB 1x custom module 2x power outlet

The Bachmann STEP ALU power outlet (model 906.0218) integrates two grounded AC sockets with child protection, one USB-A charger with two USB-A ports, and a configurable custom module slot. The unit uses GST18 Wieland connectors in the front end caps for power input and output, allowing this modular strip to be combined with other STEP modules or connected via a cable to create a tailored power distribution solution for indoor workspaces. It supports Type F plugs and a maximum current of 16 A; physical dimensions are 272 mm (width) × 44 mm (depth) × 52 mm (height).

Advantages

The aluminium housing provides a compact, durable form factor suitable for desk or table mounting. Child-protected AC sockets increase safety in shared or family environments. The integrated GST18 Wieland connectors enable secure, standard-compliant power chaining with other modules. The modular custom slot and two USB-A charger ports allow flexible device connection and charging directly from the outlet unit.

Suitable for

• Office desks and workstations
• Conference rooms and meeting tables
• Home offices and study desks
• Modular power distribution in commercial interiors

Key specifications

• Model: Bachmann STEP ALU 906.0218
• AC sockets: 2× grounded outlets with child protection (Type F compatible)
• USB: 1 module with 2× USB-A ports
• Custom module: 1 slot for a configurable module

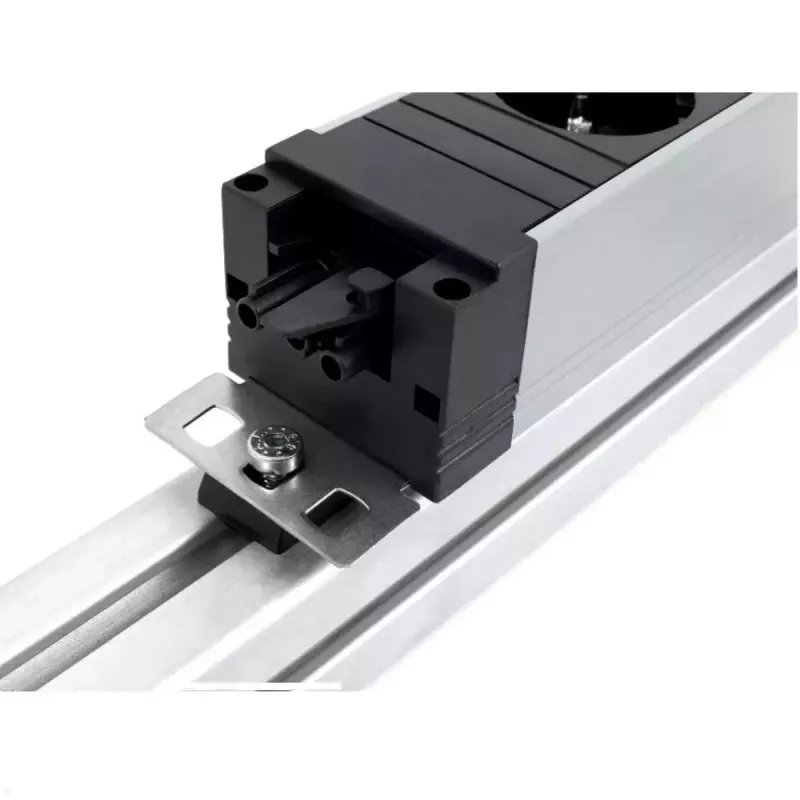

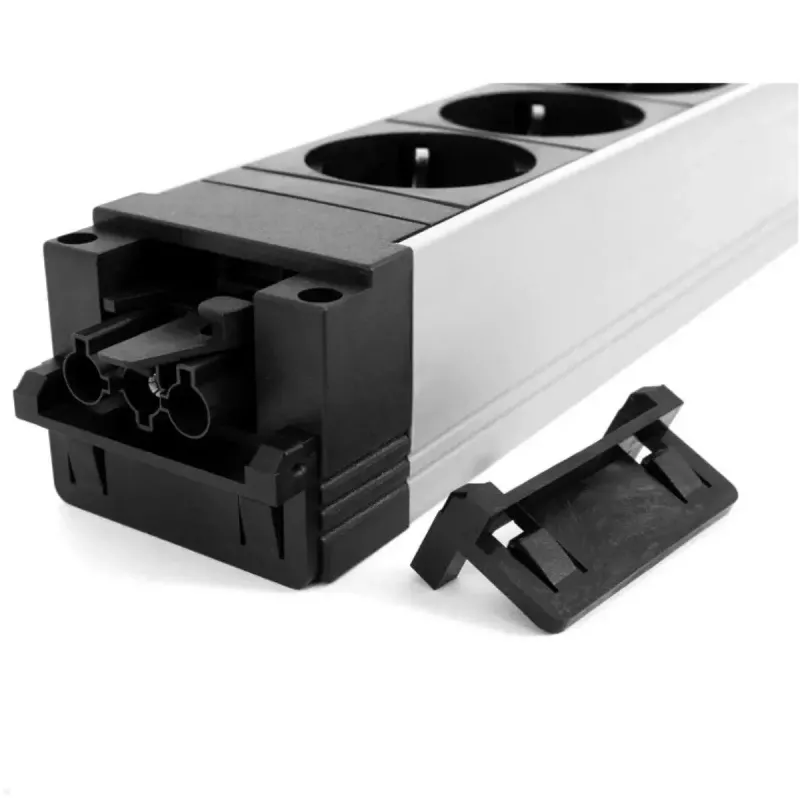

• Connectors: Built-in GST18 Wieland connectors for power input/output
• Maximum current: 16 A
• Dimensions: 272 mm × 44 mm × 52 mm (W × D × H)
• Intended use: Indoor
• MPN: 906.0218, EAN: 4057298144769

How to use

Mount the Bachmann STEP ALU on a desk or place it on a flat surface, then connect the power via the GST18 Wieland input connector or a compatible connecting cable. Plug appliances into the two AC sockets and connect USB-powered devices to the USB-A ports. If required, insert an appropriate custom module into the module slot or link additional STEP modules using the GST18 connectors to extend the power distribution. Ensure that the total current draw does not exceed the 16 A rating.

Recommendations

Use only compatible GST18 Wieland cables and certified modules for interconnection. Keep the unit dry and install it in indoor environments only. Do not exceed the specified maximum current and follow local electrical regulations when integrating multiple modules.
