Power Extension Brennenstuhl 9161100210 10m 1 AC Outlet Outdoor Black Orange

Outdoor extension cable with a 10 m polyurethane-sheathed lead, one AC outlet and straight plug. The cable sheath is acid- and oil-resistant, weather- and microbe-resistant and remains flexible down to -40 °C. The set includes an extra-robust earthing contact plug and socket with a sealing cap; plug and socket are UV-resistant and fitted with bend protection and a cable seal. The extension lead is suitable for permanent outdoor use and for construction site applications in accordance with DGUV 203-006.

Advantages

The BREMAXX-PUR H07BQ-F 3G1.5 cable construction gives high abrasion resistance, rollover protection and strong cut and tear resistance. The IP44 protection rating provides protection against foreign bodies and splash water. The robust earthing contact plug and socket with sealing cap and UV-resistant materials increase durability for outdoor exposure. The 10 m length offers extended reach while the relatively light weight supports portable use.

Suitable for

• Outdoor power supply for tools and equipment
• Construction sites and renovation work (DGUV 203-006 compliant)
• Garden and landscaping equipment
• Temporary outdoor events and installations

Key specifications

• Cable length: 10 m
• Conductor type and size: 3 cores, 1.5 mm²
• Rated voltage: 250 V
• Outlet count: 1 AC socket
• Cable sheath material: polyurethane (PUR); acid- and oil-resistant, weather- and microbe-resistant
• Temperature range: flexible down to -40 °C
• Protection rating: IP44 (protection against solid objects >1 mm and splash water)

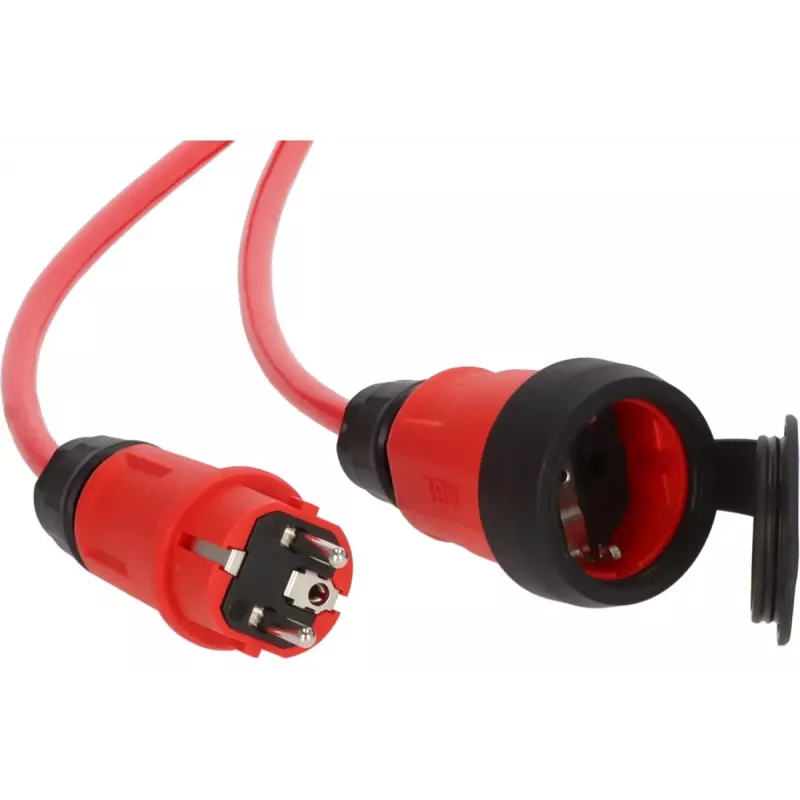

• Plug/socket features: earthing contact, UV-resistant, bend protection, sealing cap and cable seal

How to use

Connect the straight power plug to a compatible 250 V supply socket and insert the device or tool plug into the single AC outlet. Ensure the sealing cap is closed when the socket is not in use and position the cable to avoid sharp edges or heavy traffic that could damage the sheath. Use the extension on suitable outdoor power circuits and follow site safety rules for electrical equipment.

Recommendations

Do not use the extension cable submerged in water or where it would be exposed to continuous heavy mechanical stress. Inspect the plug, socket and cable sheath for damage before each use. For use on construction sites, follow applicable local regulations and the DGUV 203-006 guidance.
