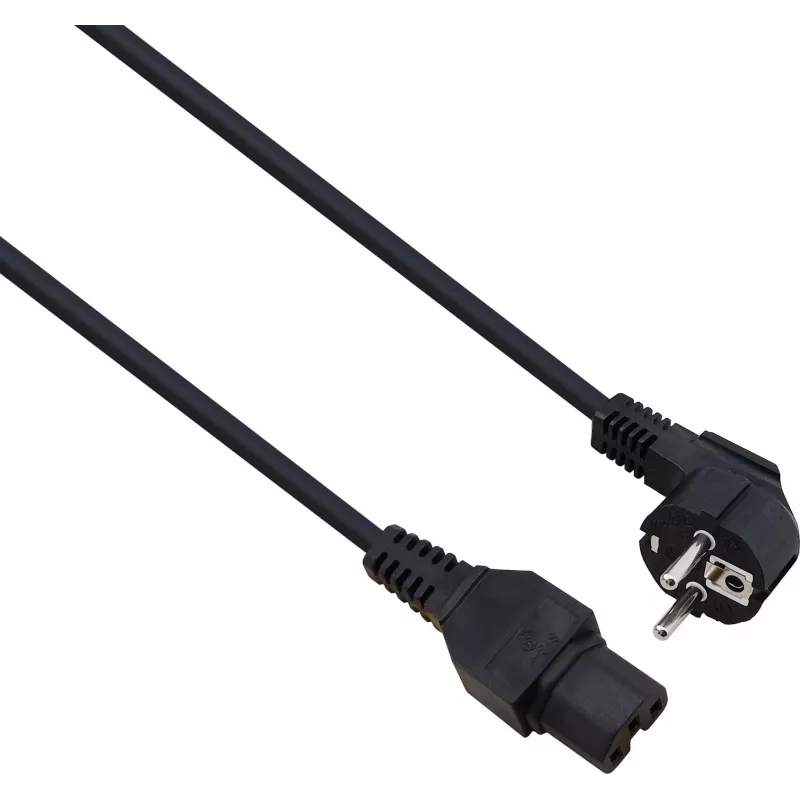

Power cable helos angled CEE 7/7 to IEC 60320 C15 250V 10A 3m

Helos power cable with an angled CEE 7/7 plug on one end and a straight IEC 60320 C15 connector on the other. The cable is H05VV-F 3G 1.0 mm², 3 m long, rated for 250 V and 10 A, and comes in black. It is intended for mains connection of devices with a C15 inlet such as certain power supplies, servers and high-temperature equipment.

Advantages

The angled CEE 7/7 plug allows space-saving placement near wall sockets while the IEC 60320 C15 connector supports devices that require a C15 inlet. The cable construction (H05VV-F 3G 1.0 mm²) provides flexibility for routing and reliable current carrying up to 10 A. The product is marked with VDE and RoHS2 and complies with IEC 60320 standards.

Suitable for

• Devices with IEC 60320 C15 inlet (e.g., some power supplies and high-temperature equipment)
• Servers and IT equipment requiring a C15 connection
• Installations where an angled mains plug saves space behind furniture or racks

Key specifications

• Brand: helos
• Manufacturer part number (MPN): 262774
• EAN: 4005938627745
• Cable type: H05VV-F 3G 1.0 mm²
• Length: 3 m
• Plug (one end): CEE 7/7 angled (90°)
• Connector (other end): IEC 60320 C15 straight
• Rated voltage: 250 V
• Rated current: 10 A
• Color: Black
• Standards/marking: VDE, RoHS2, IEC 60320

How to use

Verify that the device to be connected has an IEC 60320 C15 inlet and that the rated voltage and current (250 V, 10 A) match the device requirements. Insert the angled CEE 7/7 plug into a compatible mains socket and connect the IEC C15 connector to the device. Route the 3 m cable to avoid sharp bends and heat sources. Do not use the cable if the sheath or connectors are damaged.

Recommendations

For safe operation, use the cable only with equipment that specifies a C15 inlet and does not exceed 10 A. Inspect the cable regularly for wear and avoid permanent exposure to oil, solvents or excessive heat. Replace the cable if any damage is found.
