Power cable DJI CP.DY.00000043.01 0.4m Black Orange

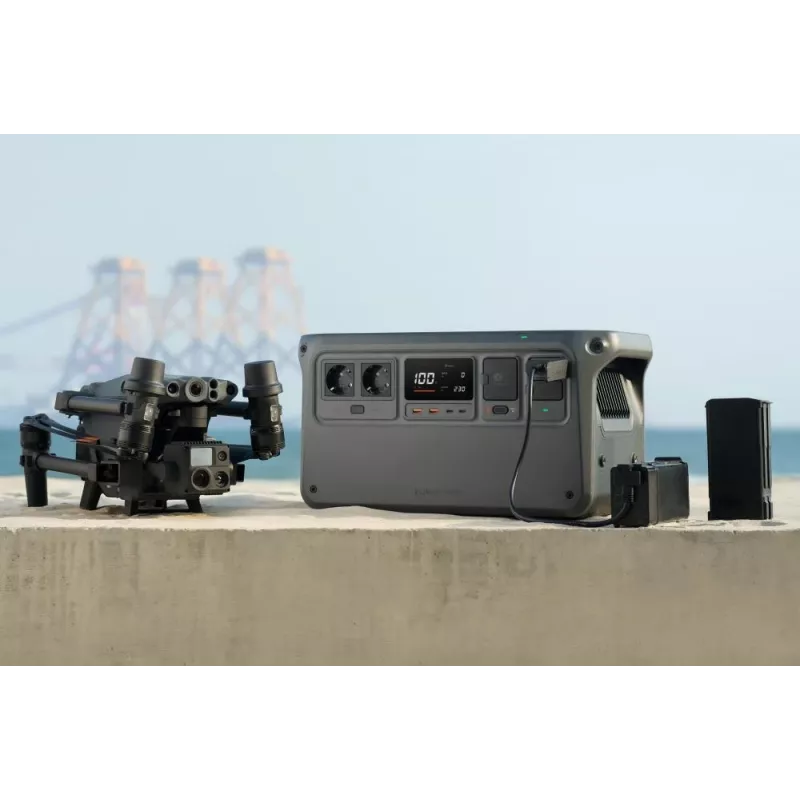

The DJI CP.DY.00000043.01 0.4m power cable (black/orange) provides a 230 W fast-charging connection between DJI Power-series power stations (such as DJI Power 1000 and DJI Power 500) and DJI Matrice 30-series TB30 Intelligent Flight Batteries. It supports rapid charging: approximately 47 minutes from 0% to 100% and about 32 minutes from 10% to 95% for one Matrice 30 TB30 battery.

Advantages

This 0.4 m cable enables a secure, high-power 230 W link for charging Matrice 30-series batteries directly from compatible DJI Power-series power stations. Its compact length reduces cable clutter and is colour-coded (black and orange) for easy identification during field operations. The cable is designed for compatibility with DJI Power 1000, DJI Power 500 and Matrice 30 Series batteries.

Suitable for

• Charging DJI Matrice 30 Series TB30 batteries from DJI Power 1000
• Charging DJI Matrice 30 Series TB30 batteries from DJI Power 500
• Field operations requiring a short, high-current connection between power station and drone battery

Key specifications

• Manufacturer part number (MPN): CP.DY.00000043.01
• Length: 0.4 m
• Power output: 230 W (fast-charge capability)
• Compatible with: DJI Power 1000, DJI Power 500, DJI Matrice 30 Series (TB30)
• Colours: Black, Orange

How to use

Connect one end of the CP.DY.00000043.01 cable to a compatible DJI Power-series power station output and the other end to the Matrice 30-series TB30 battery input. Ensure connectors are fully seated before initiating charging. Monitor the battery and power station during the charging cycle and follow DJI safety guidelines provided with the power station and batteries.

Recommendations

After flight, allow TB30 batteries to cool below 40° C (104° F) before starting a charge if the battery temperature is high. Charging while the battery temperature is above this threshold may be outside the permissible range and is not recommended.
