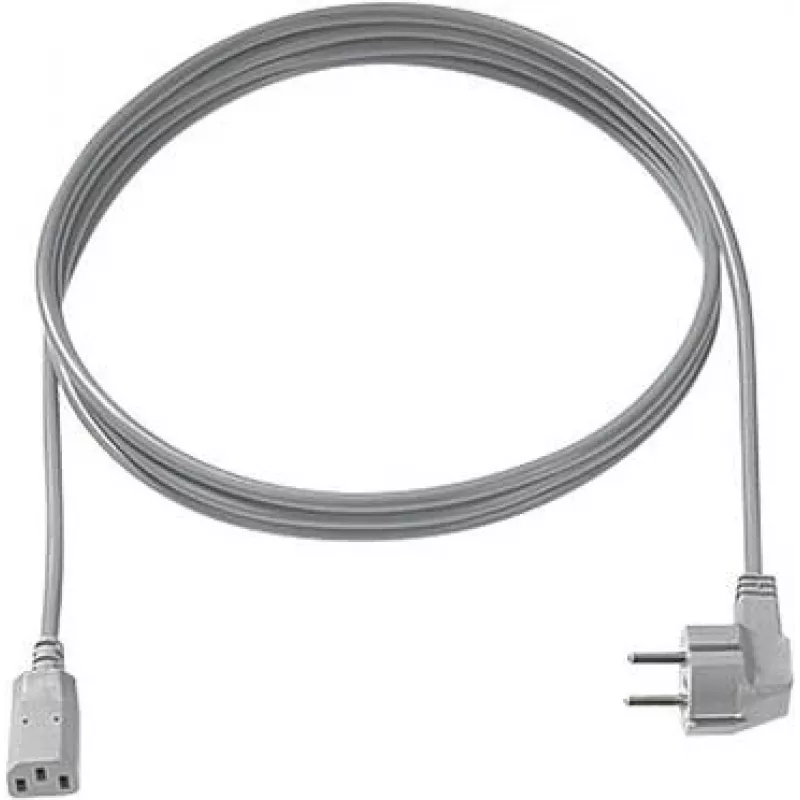

Power Cable Bachmann 351.184 H05VV-F 3G0.75mm², flexible mains lead, 3-conductor

The Bachmann Power Cable 351.184 is an H05VV-F flexible mains lead with three conductors and a 0.75 mm² cross-section per core. It is designed to supply electricity to light-duty electrical appliances and equipment in domestic and office environments. The cable delivers basic power distribution for internal wiring and portable devices where a soft, flexible mains cable is required and where standard low-voltage mains characteristics are sufficient.

Advantages

This flexible mains lead uses H05VV-F construction to combine ease of routing with reliable conductor insulation. Its three-conductor (3G) configuration includes an earth conductor for grounded devices, and the 0.75 mm² conductor cross-section offers a balance between flexibility and current-carrying capability for small appliances. The compact outer diameter and pliable sheath make the cable simple to handle during installation and suitable for use in confined spaces or equipment housings.

Suitable for (tasks / use cases)

• Powering small household appliances such as lamps, radios, and small kitchen devices
• Connecting office equipment including monitors, printers, and desk lamps
• Internal wiring of appliances and consumer electronics requiring a flexible mains lead
• Temporary power leads for event equipment or portable devices with low to moderate current draw

Key specifications

• Cable type: H05VV-F flexible mains lead
• Number of conductors: 3 (including protective earth)
• Conductor cross-section: 0.75 mm² per core
• Conductor material: stranded copper (flexible)
• Insulation and sheath: PVC for basic mechanical and electrical protection
• Typical use environment: indoor, dry locations such as homes and offices
• Flexibility: designed for routing and connection to portable or movable equipment

How to use

Strip the outer sheath to the needed length and separate the three conductors. Terminate each conductor to the appropriate terminal of the appliance or connector: live (brown or black depending on regional colour code), neutral (blue or light colour) and protective earth (green-yellow). Ensure that conductor strands are properly secured in terminal clamps or crimp ferrules to maintain good contact. Route the cable so it is not subjected to sharp bends, excessive tension, or mechanical damage, and avoid exposure to moisture and high temperatures beyond the cable's intended indoor use.

Recommendations

Use this cable for indoor, light-duty applications only. Verify that the connected device's current requirement does not exceed the safe current rating for 0.75 mm² conductors and follow local electrical codes for earthing and installation practice. Replace the cable if the sheath or conductors show signs of wear, cuts, or deformation.
