Power Adapter MEAN WELL SBTN01N-15 1W 15V Input 21.6-26.4V

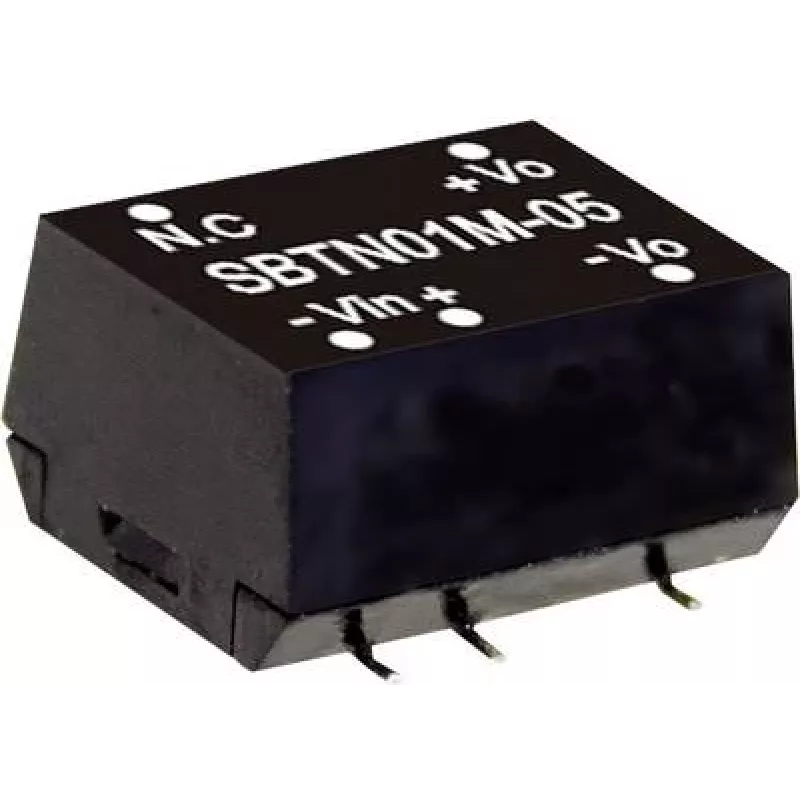

The MEAN WELL SBTN01N-15 is a PCB-mount DC-DC converter designed to convert input voltages between 21.6 V and 26.4 V DC to a regulated 15 V DC output. Supplied in an SMD package, this 1 W module delivers low current output suitable for compact electronic designs and complies with RoHS environmental standards.

Advantages

The module provides a stable 15 V output with a compact SMD footprint for PCB mounting, enabling space-efficient integration. Its input range accommodates nominal 24 V systems, and RoHS conformity ensures reduced environmental impact. The low-power 1 W rating and wide input tolerance simplify use in battery-backed or distributed 24 V installations.

Suitable for

• Powering small control circuits and sensors from 24 V systems
• Embedded electronics and compact PCB assemblies
• Low-current signal conditioning and monitoring modules

Key specifications

• Brand: mean well
• Model / MPN: SBTN01N-15
• Input voltage: 21.6–26.4 V DC
• Output voltage: 15 V DC
• Output current: 0.007–0.07 A
• Output power: 1 W
• Package: SMD, PCB mount
• RoHS: Yes
• EAN: 4021087041911

How to use

Mount the SBTN01N-15 on the PCB according to the manufacturer's recommended footprint and soldering guidelines for SMD packages. Apply an input voltage within the specified 21.6–26.4 V DC range and verify the 15 V output under the expected load (0.007–0.07 A). Observe standard precautions for handling SMD power modules, including proper thermal management and verifying polarity before powering the board.

Recommendations

For reliable operation, use the converter within its specified input range and avoid continuous operation at maximum output current without appropriate PCB thermal design. Verify that connected loads do not exceed 70 mA and provide adequate filtering or decoupling as needed for sensitive circuitry.
