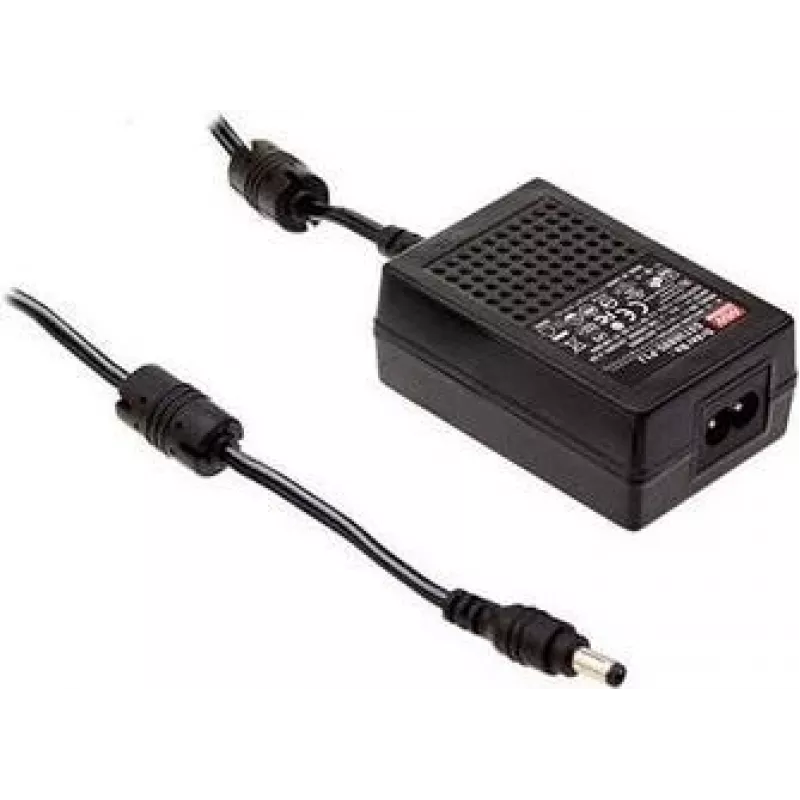

Power adapter mean well GST36B24-P1J 36 W, 24 V output, 85–264 V input, RoHS, 54×79×33 mm

MEAN WELL GST36B24-P1J is a 36 W external AC‑DC industrial desktop adapter providing a 24 V DC output at up to 1.5 A. The adapter accepts a wide input voltage range of 85–264 V AC and features a 2‑pole IEC320‑C8 AC inlet. With compact dimensions of 54 × 79 × 33 mm and RoHS compliance, it is designed to supply stable low‑voltage power for industrial and commercial electronics, LED lighting, controllers and embedded systems.

Advantages

The adapter delivers a regulated 24 V DC output with 36 W total power and up to 1.5 A current, ensuring consistent performance for connected devices. Its wide 85–264 V AC input range allows use in diverse mains environments. The compact desktop form factor and standardized IEC320‑C8 inlet simplify installation and replacement. RoHS compliance reduces hazardous substances in the product.

Suitable for

• Industrial and commercial electronics
• LED lighting drivers and modules
• Control systems and PLCs
• Embedded systems and single‑board computers
• General low‑voltage devices requiring 24 V DC

Key specifications

• Model: GST36B24-P1J (mean well)
• Output: 24 V DC, 1.5 A (36 W)
• Input voltage: 85–264 V AC
• AC inlet: 2‑pole IEC320‑C8
• Dimensions: 54 × 79 × 33 mm
• RoHS compliant
• MPN: GST36B24-P1J, EAN: 4021087077507

How to use

Connect the adapter to the mains supply using a compatible mains lead with an IEC320‑C8 connector. Attach the DC output cable to the target device rated for 24 V DC and up to 1.5 A. Verify correct polarity and secure connections before powering on. Allow adequate ventilation around the adapter and avoid placing it on heat‑sensitive surfaces during operation.

Recommendations

For reliable long‑term operation, use the adapter within its rated input and output specifications, avoid overloading beyond 1.5 A, and keep the unit in a dry, ventilated environment. Replace the adapter if physical damage or abnormal heating is observed.
