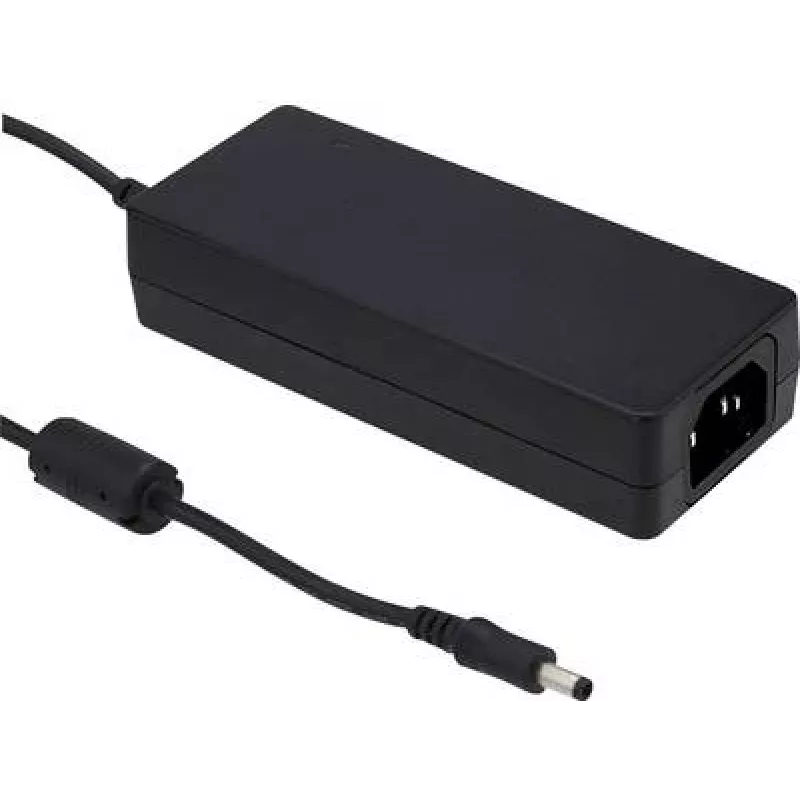

Power adapter MEAN WELL GSM90A15-P1M 90W 15V 80-264V

The MEAN WELL GSM90A15-P1M is a desktop AC‑DC medical power adapter delivering 15 V DC at up to 6.0 A (90 W). It accepts a wide AC input range of 80–264 V via a 3‑pole IEC inlet and provides a 4‑pole DIN output connector. The unit meets EN 60601 medical safety requirements with 2×MOPP isolation and is RoHS compliant. Its compact housing measures approximately 60 mm (W) × 145 mm (D) × 32 mm (H), making it suitable for equipment that requires a stable low‑voltage DC supply.

Advantages

The adapter offers a wide input voltage range for global mains compatibility, medical‑grade isolation (EN 60601, 2×MOPP) for patient‑safety applications, and a reliable 90 W output at 15 V / 6.0 A. Its compact desktop form factor with a standard IEC mains inlet and DIN 4‑pole output connector simplifies installation and replacement in professional equipment. RoHS compliance reduces environmental hazards.

Suitable for

• Medical devices and instruments requiring EN 60601 compliance
• Clinical and laboratory desktop equipment
• Electronics that need a stable 15 V DC, 6 A supply
• Systems requiring a DIN 4‑pole output connector

Key specifications

• Brand: mean well
• Model: GSM90A15-P1M (MPN)
• EAN: 4021087036726
• Output: 15 V DC, 6.0 A (90 W)
• Input: 80–264 V AC via 3‑pole IEC inlet
• Safety: EN 60601 with 2×MOPP isolation
• Output connector: DIN 4‑pole
• Dimensions: 60 × 145 × 32 mm (W×D×H)
• RoHS: compliant

How to use

Connect the adapter to the mains supply using a compatible 3‑pole IEC power cord. Plug the DIN 4‑pole output connector into the device’s matching socket, ensuring correct pin alignment. Place the adapter on a stable, ventilated desktop surface and avoid covering its ventilation areas during operation. Verify that the connected equipment is rated for a 15 V DC input and that current draw does not exceed 6.0 A.

Recommendations

Use the adapter in environments within the specified mains range (80–264 V) and maintain adequate ventilation. For medical installations, follow applicable EN 60601 installation guidelines and use only qualified personnel for wiring and maintenance. Replace the adapter with the same model (GSM90A15-P1M) to preserve safety and compatibility.
