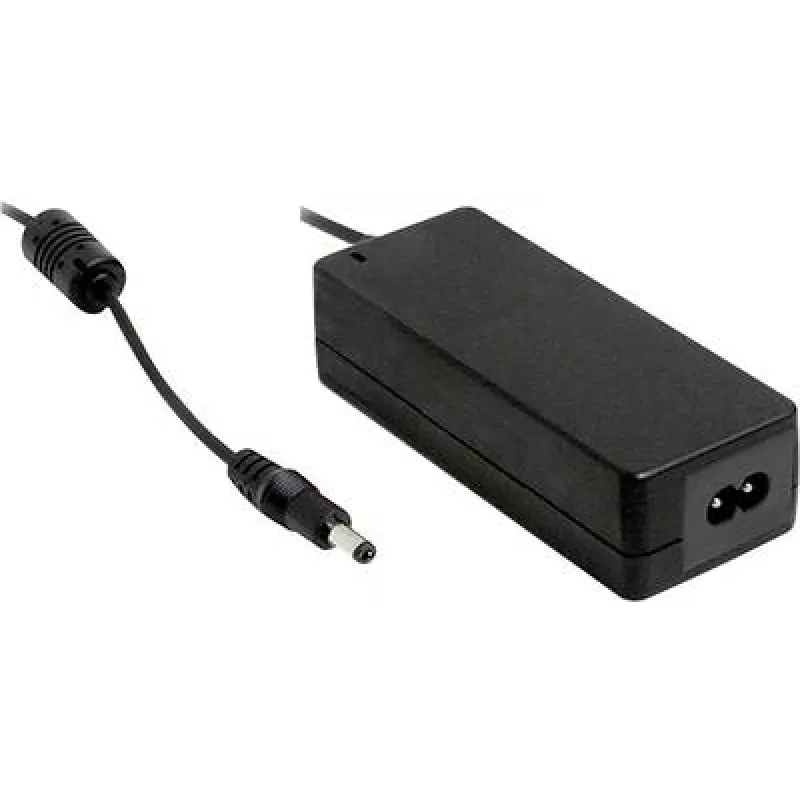

Power adapter MEAN WELL GSM60B12-P1J 60W 12V 80-264V

The MEAN WELL GSM60B12-P1J is a medical-grade AC-DC desktop power adapter that delivers 12 V DC at up to 5.0 A (60 W output). It accepts an input voltage range of 80–264 V AC via a 2-pole IEC320-C8 inlet and is built to meet medical safety requirements with EN 60601 certification and 2xMOPP isolation. The unit is RoHS compliant, compact (50 mm wide × 125 mm deep) and weighs approximately 330 g.

Advantages

This adapter provides a stable 12 V DC output with a maximum current of 5.0 A and a rated power of 60 W, suitable for continuous operation. Medical safety features include EN 60601 compliance and 2xMOPP isolation for patient and operator protection. The wide input range (80–264 V AC) allows global use without external transformers, and the compact, lightweight housing supports space-constrained installations.

Suitable for

• Medical desktop equipment requiring 12 V DC and up to 5 A
• Laboratory instruments with EN 60601 safety requirements
• Clinical monitors, diagnostic devices and other small medical appliances

Key specifications

• Manufacturer: MEAN WELL
• Model: GSM60B12-P1J
• Output: 12 V DC, 5.0 A (60 W)
• Input: 80–264 V AC via IEC320-C8 (2-pole)
• Safety standards: EN 60601, 2xMOPP
• Compliance: RoHS
• Dimensions (W × D): 50 mm × 125 mm
• Weight: approx. 330 g
• MPN: GSM60B12-P1J
• EAN: 4021087036788

How to use

Connect the adapter to the mains using a compatible IEC320-C8 cable, then connect the 12 V DC output to the medical device following the device manufacturer's polarity and connector requirements. Ensure the AC mains supply is within the 80–264 V range before powering on. Allow adequate ventilation around the adapter during operation and avoid covering the unit to prevent overheating.

Recommendations

Use only cables and connectors rated for medical applications where required, and verify that the host equipment accepts a 12 V, 5 A supply. Install the adapter in a dry, ventilated location and follow routine inspection schedules; if the adapter shows signs of damage or abnormal operation, replace it immediately.
