Power adapter MEAN WELL GSM160A12-R7B 160 W 12 V 80-264 V

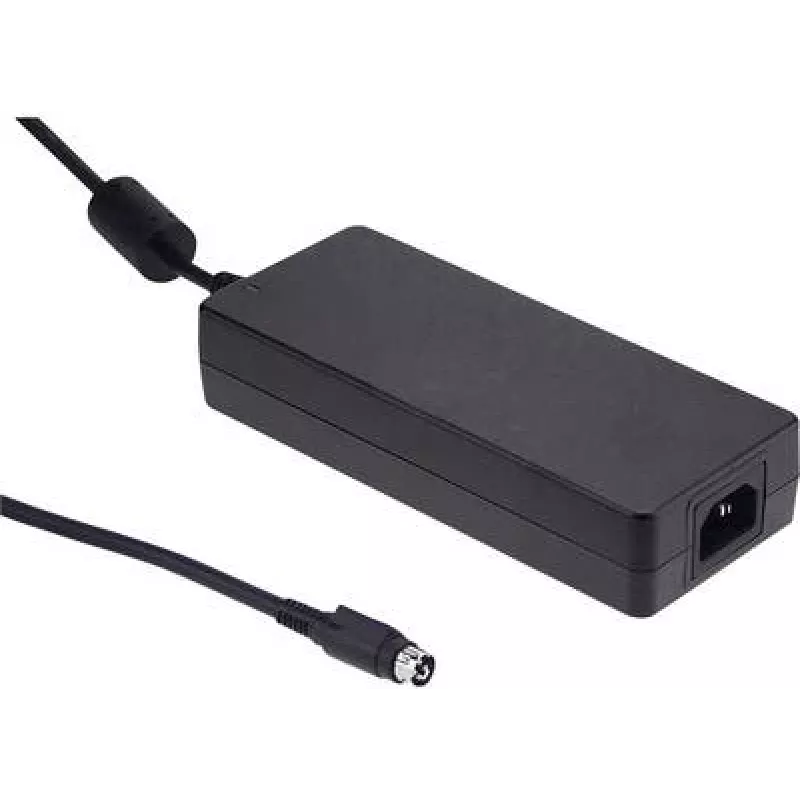

The MEAN WELL GSM160A12-R7B is an AC-DC medical desktop adapter providing 12 V DC output at up to 11.5 A (160 W). It accepts a wide input voltage range of 80–264 V AC via a 3‑pin IEC320‑C14 socket and delivers output through a locked DIN 4‑pin plug. The unit complies with EN60601, offers 2×MOPP isolation and Class I protective earth, and includes Active PFC for improved power factor.

Advantages

This medical power adapter combines compact dimensions (72 mm × 175 mm × 35 mm) with a high output power of 160 W and wide input range, enabling use in diverse environments. The locked DIN 4‑pin output connector provides secure connection to medical equipment while EN60601 and 2×MOPP certification ensure isolation and patient safety. Active PFC reduces input current distortion and improves efficiency, and RoHS compliance confirms adherence to environmental standards.

Suitable for

• Desktop medical devices requiring 12 V, up to 11.5 A
• Clinical monitoring and diagnostic equipment with DIN 4‑pin locked input
• Workstations or benches where a compact 160 W adapter is needed

Key specifications

• Manufacturer: mean well
• Model: GSM160A12-R7B (MPN)
• Output: 12 V DC, 11.5 A, 160 W
• Input: 80–264 V AC via IEC320‑C14 (3‑pin)
• Connector: DIN 4‑pin plug with lock
• Standards & safety: EN60601, 2×MOPP, Class I
• Power factor: Active PFC
• Dimensions: 72 mm × 175 mm × 35 mm
• Compliance: RoHS
• EAN: 4021087037150

How to use

Connect the adapter to the AC mains using a compatible IEC320‑C14 power cord. Attach the DIN 4‑pin plug to the device input and ensure the locking mechanism is engaged to prevent accidental disconnection. Verify the device requires 12 V DC and does not draw more than 11.5 A. Place the adapter on a stable, ventilated surface and avoid covering ventilation openings during operation.

Recommendations

Use this adapter with medical equipment that specifies EN60601-compliant external power supplies and observe the device manufacturer’s instructions. Ensure proper earth connection for Class I devices, maintain adequate ventilation, and inspect cords and connectors regularly. For installations requiring permanent wiring or panel mounting, consult qualified personnel.
