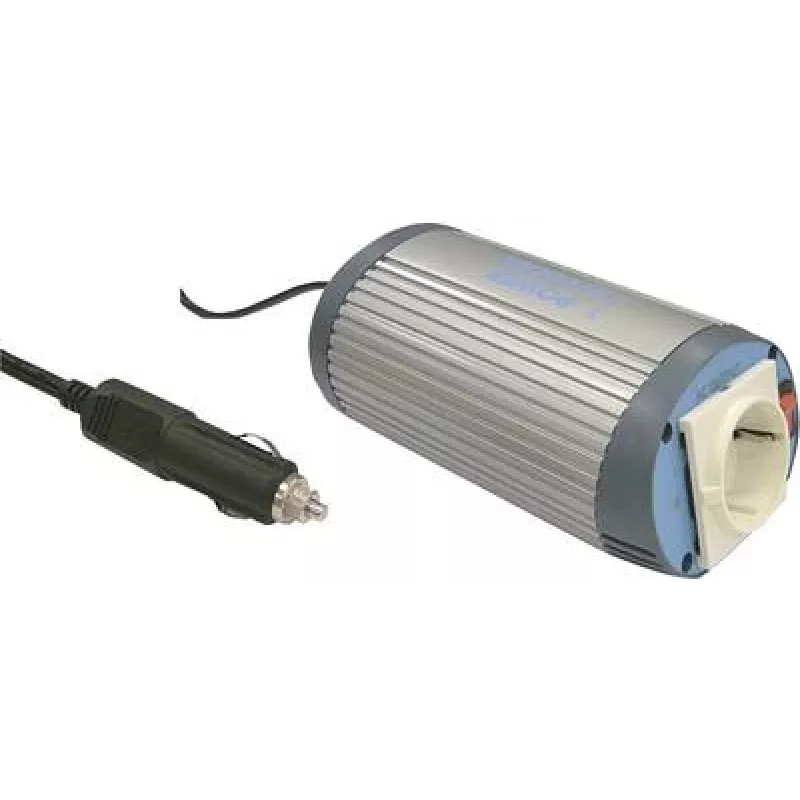

Power adapter MEAN WELL A302-100-F3 100 W 24 V 230 V

MEAN WELL A302-100-F3 is a compact DC-AC modified sine wave inverter that converts 24 V DC input to 230 V AC output with a rated output power of 100 W. The unit is RoHS compliant, measures 65 mm in width and 170 mm in depth, and weighs 560 g, providing a space-saving solution for powering small AC equipment from a 24 V source.

Advantages

The inverter delivers a stable 230 V output from a 24 V DC source and provides up to 100 W continuous power. Its compact dimensions and moderate weight make it suitable for installations with limited space. Compliance with RoHS standards ensures reduced hazardous substances.

Suitable for

• Powering small AC appliances and tools from 24 V DC sources
• Use in vehicles, boats, or off-grid 24 V systems
• Supplementary power for 230 V electronics requiring up to 100 W

Key specifications

• Model: MEAN WELL A302-100-F3
• Input voltage: 24 V DC
• Output voltage: 230 V AC (modified sine wave)
• Output power: 100 W
• Dimensions (W × D): 65 mm × 170 mm
• Weight: 560 g
• RoHS compliant
• Brand: mean well
• MPN: A302-100-F3
• EAN: 4021087006088

How to use

Install the inverter in a well-ventilated, dry location and secure it to a stable surface. Connect the 24 V DC input according to polarity, using appropriately sized cables and secure terminals. Connect the AC load to the 230 V output outlets or terminals, ensuring the total load does not exceed 100 W. Verify connections before applying power and follow safety precautions to avoid short circuits or overloads.

Recommendations

For reliable operation, avoid continuous operation at or near the 100 W limit, provide adequate ventilation, and use the inverter within specified input voltage and load ranges. Do not connect inductive loads or appliances with high startup currents without confirming compatibility.
