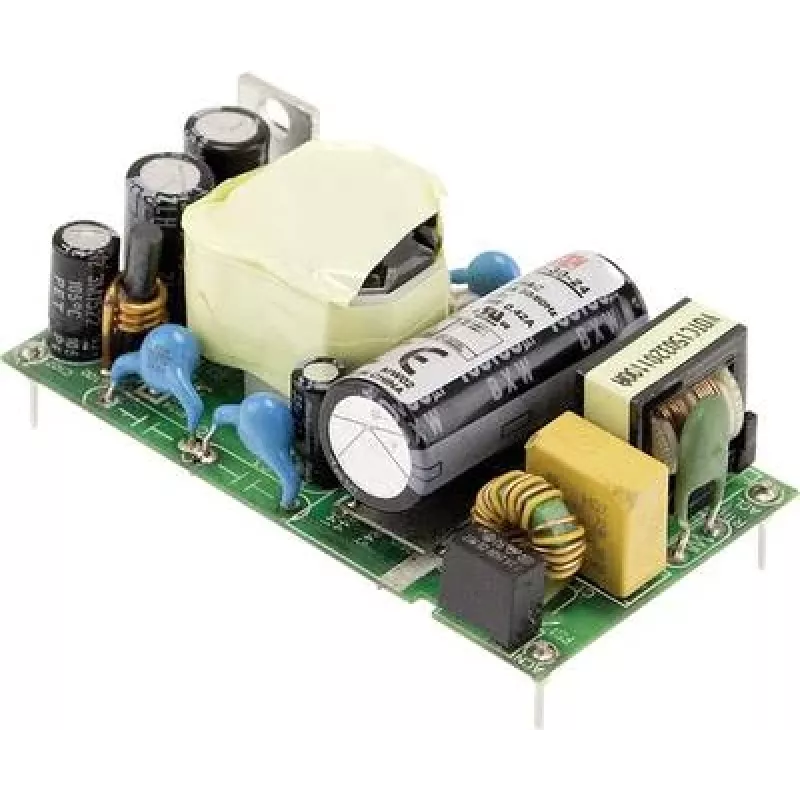

Power adapter/inverter Mean Well MFM-30-24, 30 W, 24 V output, 80–264 V input, RoHS, 35×65.5×23 mm

Mean Well MFM-30-24 is a compact AC‑DC power adapter delivering a fixed 24 V DC output at up to 1.3 A from a wide universal input of 80–264 V AC. The module is designed for low‑profile, PCB‑mount applications and measures 35 × 65.5 × 23 mm. Built to meet RoHS requirements and featuring medical‑grade isolation (2×MOPP), this single‑output open‑frame supply suits installations where a reliable, small footprint 24 V source is required.

Advantages

The MFM-30-24 provides a stable 24 V output with up to 30 W power in a compact housing suitable for PCB mounting. Universal AC input enables use across different mains voltages without adjustment. Medical isolation ratings (2×MOPP) increase safety for equipment intended for medical or patient‑adjacent applications. RoHS compliance ensures the unit meets common environmental and material restrictions for commercial and industrial use.

Suitable for

• Powering industrial control modules and PLC peripheral circuits
• Supplying LED drivers and small lighting modules
• Embedded and small automation devices requiring a fixed 24 V supply
• Medical and healthcare equipment with low power 24 V needs (subject to system certification)

Key specifications

• Output voltage: 24 V DC
• Maximum output power: 30 W
• Maximum output current: 1.3 A
• Input voltage range: 80–264 V AC (universal mains)
• Mounting type: PCB mount (open frame)
• Dimensions: 35 × 65.5 × 23 mm
• Protection and safety: medical isolation equivalent to 2×MOPP
• Compliance: RoHS

How to use

Install the module on the host PCB according to the manufacturer’s recommended footprint and soldering guidelines. Ensure correct polarity when connecting the 24 V output to the load and maintain adequate creepage and clearance distances around the module for safety, especially in medical applications. Provide suitable input line filtering and fusing on the mains side as required by the system design. Verify that the total load does not exceed 1.3 A and that ambient temperature and ventilation conditions meet the module’s operating limits.

Ieteikumi lietošanai

Use appropriate thermal management and follow safety standards for PCB‑mounted power supplies; in patient‑connected systems ensure full system certification before deployment.
