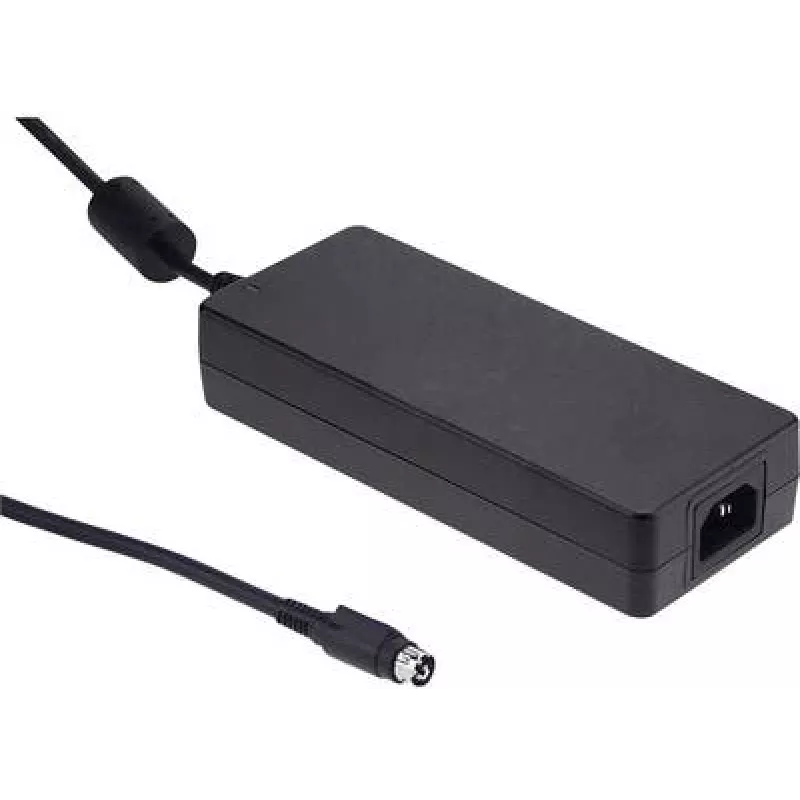

Power adapter/inverter MEAN WELL GSM160A24-R7B 160 W 24 V

The MEAN WELL GSM160A24-R7B is a 160 W AC‑DC medical desktop adapter with Active PFC, designed to deliver a stable 24 V DC output at up to 6.67 A. It accepts a wide input voltage range (80–264 V) via a 3‑pin IEC320‑C14 socket and provides a DIN 4‑pin output plug with lock. The unit meets EN60601 medical safety requirements, offers 2×MOPP isolation and Class I protection, and comes in a compact housing (72 mm × 175 mm × 35 mm). It is RoHS compliant and intended for equipment that requires a reliable, medical‑grade power source.

Advantages

The adapter combines medical safety certification (EN60601, 2×MOPP) with Active PFC for improved power factor and reduced interference. Its wide input range and IEC320‑C14 inlet make it compatible with global mains supplies, while the DIN 4‑pin locking output ensures secure connection to medical devices. The compact dimensions and 160 W power rating allow incorporation into desktop or benchtop equipment where space is limited.

Suitable for

• Medical and healthcare devices requiring 24 V DC, up to 6.67 A
• Desktop and benchtop equipment where EN60601 compliance is required
• Laboratory instruments and diagnostic systems needing isolated, medical‑grade power

Key specifications

• Brand: MEAN WELL
• Model: GSM160A24-R7B
• Power: 160 W
• Output: 24 V DC, 6.67 A
• Input voltage: 80–264 V AC
• Input connector: 3‑pin IEC320‑C14
• Output connector: DIN 4‑pin plug with lock
• Medical safety: EN60601, 2×MOPP, Class I
• Dimensions: 72 × 175 × 35 mm
• Compliance: RoHS

How to use

Connect the adapter to the mains supply using a compatible IEC320‑C13 power cord, then attach the DIN 4‑pin plug to the device’s mating connector until the locking mechanism engages. Ensure the connected equipment is rated for a 24 V DC input and does not exceed the 6.67 A output current. Place the adapter on a stable, ventilated surface and allow sufficient clearance for heat dissipation during operation.

Recommendations

Use the adapter in environments that comply with the specified temperature and humidity ranges for the host equipment, avoid covering ventilation openings, and perform periodic visual inspections of the power cord, connectors, and housing. For medical applications, follow applicable installation procedures and local regulations when integrating the adapter into clinical devices.
