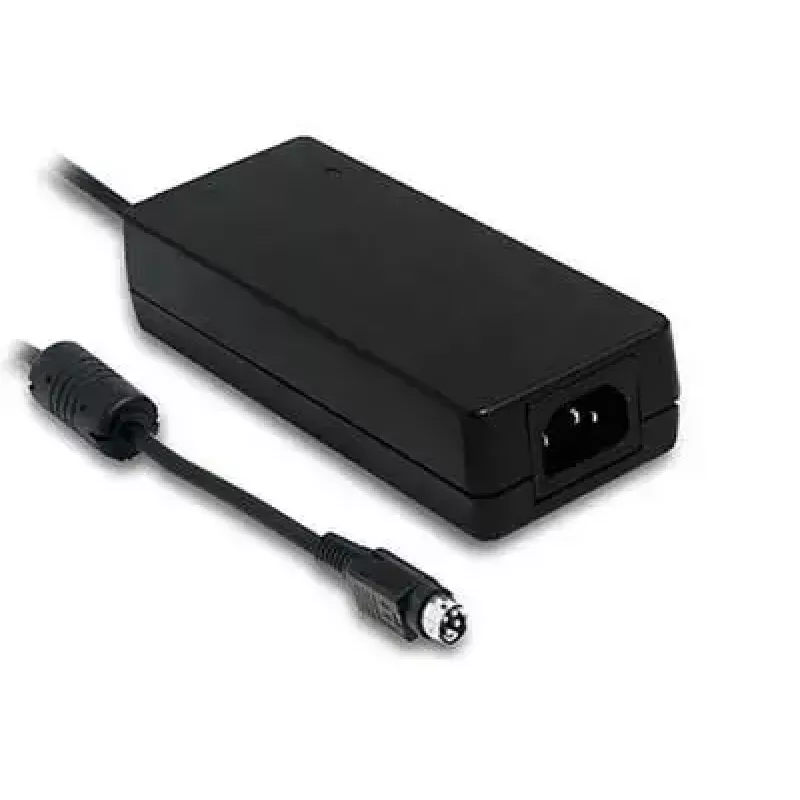

Power adapter/inverter ID11 GSM90A19-P1M — Indoor 90 W, 90–264 V input, black, plastic housing

ID11 GSM90A19-P1M is a 90 W indoor power adapter/inverter designed for universal AC-to-DC applications. It accepts a wide AC input range of 90–264 V and delivers a stable 19 V DC output in a compact, fully enclosed black plastic housing (60 × 145 × 32 mm). The unit includes an LED power indicator, meets multiple international safety and EMI approvals (UL, CUL, TUV, BSMI, CB, FCC, CE) and is specified with a high MTBF of 348,700 hours. Built-in active PFC and low no-load consumption make it suitable for continuous indoor use with small industrial, commercial, telecom and control devices.

Advantages

The adapter offers a universal AC input and active PFC (power factor >0.91) to improve efficiency and compatibility with varied mains supplies. Protections for short circuit, overload, over voltage and over temperature safeguard connected equipment, while the fully enclosed plastic case and UL/CE-related approvals provide safety and regulatory compliance. Low no-load power consumption (<0.5 W) and conformity with EISA 2007 support energy-efficient operation. Its compact footprint and an LED power indicator simplify installation and monitoring in indoor environments.

Suitable for

• Powering small industrial control modules and sensors
• Supplying telecom and network devices such as routers, switches and small base stations
• Feeding commercial equipment like point-of-sale terminals and display controllers
• Use in laboratory benches, test rigs and control cabinets with indoor mounting

Key specifications

• Application environment: Indoor
• Output power: 90 W
• Output voltage: 19 V DC
• Input voltage range: 90–264 V AC
• Input frequency: 47–63 Hz
• Power factor correction: Active PFC, PF >0.91
• Protections: Short circuit, Overload, Over voltage, Over temperature
• Case material and color: Fully enclosed plastic housing, black
• AC inlet: 3-pole IEC320-C14
• No-load power consumption: <0.5 W
• Safety and EMC: Approvals including UL, CUL, TUV, BSMI, CB, FCC, CE
• Mean time between failures (MTBF): 348,700 hours
• Standards: Meets EISA 2007 energy requirement

How to use

Install the ID11 GSM90A19-P1M indoors on a stable surface or inside a suitable enclosure with adequate ventilation. Connect the mains supply using the 3‑pole IEC320‑C14 inlet to compatible mains cabling rated for the local voltage and frequency. Verify output voltage and polarity before connecting load equipment. Monitor the LED power indicator to confirm normal operation. If any protection state is triggered (overload, over voltage, over temperature or short circuit), disconnect the load and allow the unit to cool or remove the fault before restarting.

Recommendations

For reliable long-term operation, keep ambient temperature within the manufacturer’s recommended range and ensure sufficient airflow around the adapter. Use appropriately rated cabling and fuses on both input and output sides, and avoid mounting close to heat sources or in areas with excessive dust or moisture. Regularly inspect connectors and the housing for damage; replace the adapter if physical damage or persistent protection trips occur. Follow local regulations for electrical installation and grounding.
