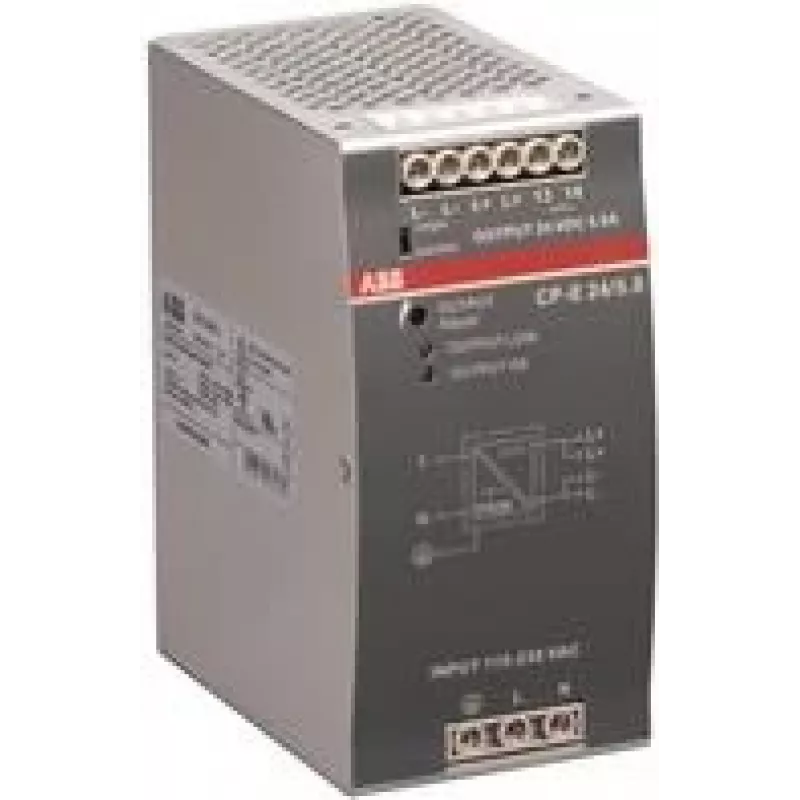

Power Adapter/Inverter ABB CP-E 24/5.0 Indoor 120 W 115/230 V

The CP-E 24/5.0 is an indoor primary switch-mode power supply from ABB's CP-E range. It delivers a rated output power of 120 W and a nominal output of 24 V DC at 5 A. The unit accepts a wide input voltage range (90–132 V AC, 180–264 V AC and 210–375 V DC) with rated input voltages of 115 or 230 V AC (auto select). The output voltage is adjustable between 22.5 and 28.5 V DC and the supply provides an U/I output characteristic; up to three units can be connected in parallel to increase capacity. A separate redundancy module is available as an accessory.

Advantages

The CP-E 24/5.0 offers a compact indoor design with wide-range input and selectable rated input (115/230 V AC), adjustable output voltage, and U/I characteristic for stable power delivery. Parallel operation of up to three units enables straightforward capacity expansion, and the availability of a dedicated redundancy unit supports increased system reliability. Compliance with CE and RoHS ensures conformity with relevant safety and environmental standards.

Suitable for

• Industrial control cabinets and automation equipment
• Instrumentation and monitoring systems
• Telecommunications and network devices requiring 24 V DC
• Applications needing parallel redundancy or increased power capacity

Key specifications

• Brand: ABB
• Model: CP-E 24/5.0 (MPN: 1SVR427034R0000, EAN: 4016779669689)
• Output: 24 V DC nominal, adjustable 22.5–28.5 V DC
• Rated output current: 5 A
• Rated output power: 120 W
• Input voltage: wide range 90–132 V AC, 180–264 V AC, 210–375 V DC (rated 115/230 V AC auto select)
• Frequency range: 47–63 Hz
• Mounting: indoor use (DIN-rail compatible typical for CP-E range)
• Standards: CE, RoHS

How to use

Install the CP-E 24/5.0 inside a suitable electrical cabinet or enclosure following local wiring regulations. Connect the AC or DC input according to the rated supply and ensure correct grounding. Set the output voltage within the 22.5–28.5 V DC adjustment range if fine tuning is required. For higher total output current, connect up to three units in parallel in accordance with ABB instructions and use the optional redundancy unit where a failover capability is required. Verify connections and perform functional checks before placing the powered equipment into operation.

Recommendations

Use the unit in well-ventilated indoor environments and keep within the specified input and output ranges. Follow ABB’s installation manual for parallel connection and redundancy module installation. Regularly inspect connections and ensure the device is installed on appropriate DIN-rail or mounting surface per manufacturer guidance.
