Portable radio TECHNISAT CLASSIC 100 — Analog FM, 1 W RMS, 3.5 mm, White

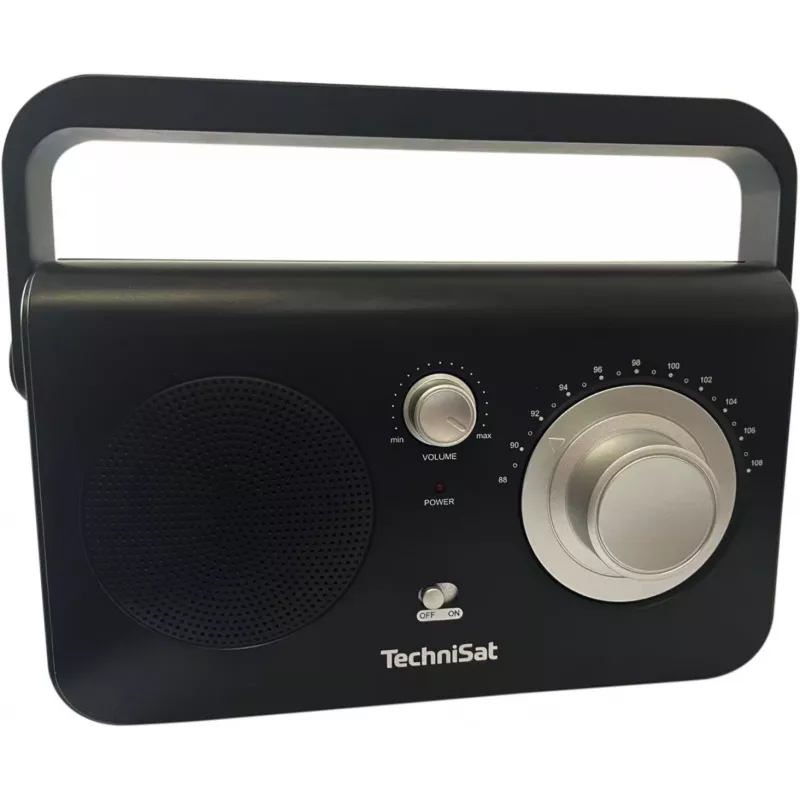

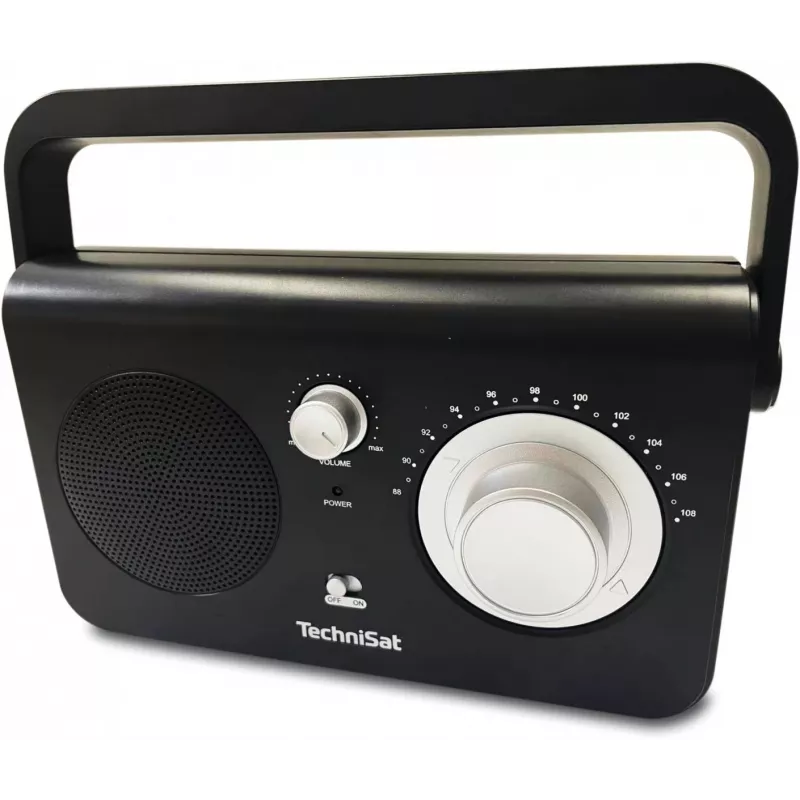

TECHNISAT CLASSIC 100 is a portable analog FM radio designed for simple, reliable reception of FM broadcasts in the VHF range of 87.5–108 MHz. The unit features a 1 W RMS loudspeaker, a rotary tuning knob, a separate rotary volume control, a telescopic external antenna and a 3.5 mm headphone jack for private listening. The matte, durable housing, large carrying handle and compact dimensions make the radio suitable for indoor bedside use as well as outdoor activities. The radio can be powered by mains or by UM2 (1.5 V) alkaline batteries, offering flexible use away from a power outlet.

Advantages

The CLASSIC 100 provides clear FM reception across the standard VHF band and delivers solid audio output from its 1 W speaker. Manual tuning with a large, easy-to-grip knob simplifies station selection while a dedicated volume control allows quick level adjustment. A telescopic antenna improves signal pickup, and the 3.5 mm headphone output enables private listening. The lightweight 0.65 kg construction and integrated handle support portability for travel, garden or camping use.

Suitable for

• Listening to FM radio at home or in a bedroom
• Portable use for travel, picnics, camping or barbecues
• Private listening with headphones
• Simple manual tuning and volume adjustment needs

Key specifications

• Radio type: Portable analog FM receiver
• Supported frequency range: FM 87.5–108 MHz
• Audio output power: 1 W RMS speaker
• Headphone connector: 3.5 mm jack
• Controls: Rotary tuning knob and separate rotary volume control
• Antenna: Telescopic external antenna
• Power supply: Mains or UM2 (1.5 V) alkaline batteries
• Weight: 0.65 kg
• Colour: White

How to use

Connect the radio to mains power or insert the recommended UM2 (1.5 V) alkaline batteries according to the polarity markings. Extend the telescopic antenna for better FM reception. Use the large tuning knob to select the desired FM station, then adjust the separate volume control to set the listening level. For private listening, plug headphones into the 3.5 mm jack and reduce the volume as needed. Carry the radio by the integrated handle for transport.

Recommendations

For best reception, extend the antenna and position the radio near a window or higher location. Replace batteries when audio becomes weak or intermittent. When using headphones, set the volume to a comfortable level to avoid hearing damage. Store the radio in a dry place and avoid exposure to prolonged direct sunlight or extreme temperatures.
